Author:

Yulia Andreyanova

Changed on:

30 Oct 2024

Key Points

This guide is intended for implementers who are enabling the capability for Store Associates to assign items to parcels.
The guide outlines the steps to configure the assign items to parcels capability, including updating the necessary modules, workflows, settings, and user permissions to ensure smooth implementation in the Fluent Store.
Before proceeding with this guide, it is recommended that you are familiar with the following concepts: Adding a Workflow to your Retailer via API, How to Override the default manifest, How to Display Colored Dots, Configure Printable Order Labels, and Configure Printable Pack Slips.

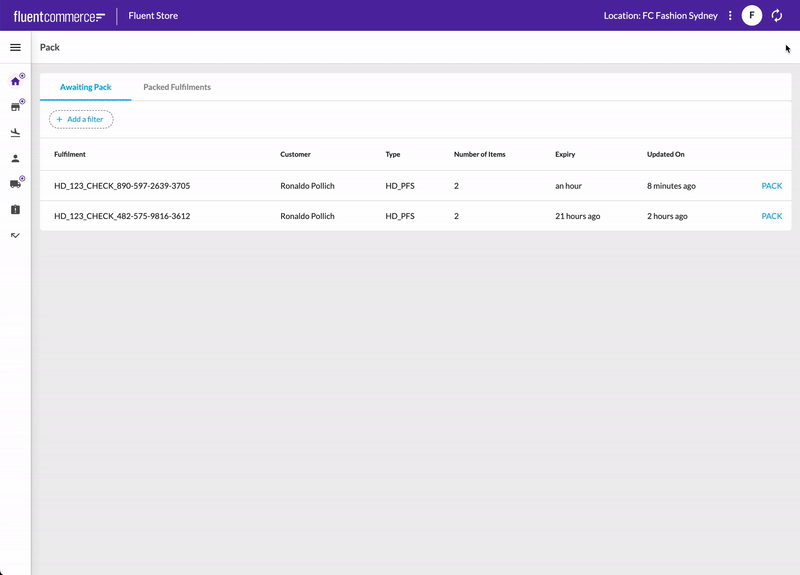

Configuration outcome for the Assigning Items to Parcels capability

Prerequisites

Adding a Workflow to your Retailer via API

Overriding the default manifest

Steps

Install the Latest Order, Fulfilment, and Core Modules

If your account is using an Order module version earlier than 1.3.0, a Fulfilment module version earlier than 2.1.0, or a Core module version earlier than 1.2.5, you'll need to install the latest module versions.

This will grant you access to the latest workflows and the following essential rules for the Order Module:

Update Workflows

There are two ways to update the Location and Orders workflows:

Option 1:
Use the reference workflows from the Fulfilment Module's version 2.1.0 or higher and the Order Module's version 1.3.0 or higher. This is recommended if you're working with default workflows, especially for new retailers without customizations.

The following how-to guide, 'Adding a Workflow to your Retailer via API,' provides instructions on updating a workflow.

The necessary workflow files are included in the Fulfillment Module (v2.1.0 and greater) and Order Module (v1.3.0 and greater) zip files.

Option 2:
If your workflows are customized, you’ll need to manually integrate new rules and ruleSets:

Location Workflow: Insert the following ruleSets into your Location workflow in order to break apart the pick and pack processes. This enables Store Associates to prioritize packing by selecting the next fulfillment strategically or based on urgency.
- PickConfirmAndWaveComplete This ruleSet assigns picked items to the corresponding fulfillments in the Wave and updates the Wave status to
```
`COMPLETE`
```
  .

1{
2  "name": "PickConfirmAndWaveComplete",
3  "description": "Assign the picked items to fulfilment and set the Wave status to 'COMPLETE'.",
4  "type": "WAVE",
5  "subtype": "STORE",
6  "eventType": "NORMAL",
7  "rules": [
8    {
9      "name": "[[account.id]].fulfilment.AllocateConfirmedItemsByFulfilmentExpiry",
10      "props": {
11        "eventName": "FulfilmentPack",
12        "excludedStatuses": [
13          "EXPIRED"
14        ]
15      }
16    },
17    {
18      "name": "[[account.id]].core.SetState",
19      "props": {
20        "status": "COMPLETE"
21      }
22    }
23  ],
24  "triggers": [
25    {
26      "status": "PICK"
27    }
28  ],
29  "userActions": [
30    {
31      "context": [
32        {
33          "label": "Confirm pick",
34          "type": "PRIMARY",
35          "modules": [
36            "servicepoint",
37            "store"
38          ],
39          "confirm": true
40        }
41      ],
42      "attributes": [
43        {
44          "name": "pickedItems",
45          "label": "Picked Items",
46          "type": "PICKED_ITEMS",
47          "source": "",
48          "defaultValue": "",
49          "mandatory": true
50        }
51      ]
52    }
53  ]
54},

Language: json

Name: PickConfirmAndWaveComplete ruleSet

Description:

PickConfirmAndWaveComplete ruleSet

Order Workflow: Insert the following ruleSets into HD (Home Delivery) and CC (Click and Collect) order workflows to trigger the packing process and verify fulfillment items:
- FulfilmentPack Triggered from the wave entity, this event initiates the packing process for items in the fulfillment;
- VerifyFulfilmentItemsForPack This checks the fulfillment items and triggers different events depending on whether all, some, or none of them were picked during the Pick phase;
- AllReadyForPack Sends an event to reset reserved inventory values and updates the fulfillment status to
```
`READY_FOR_PACK`
```
  when all items have been fulfilled from the store or warehouse;
- PartiallyReadyForPack Sends an event to reset reserved inventory values and changes the fulfillment status to
```
`READY_FOR_PACK`
```
  when only some items are fulfilled. It also sends an event to the order entity to source unfulfilled items from the next best location;
- VerifyParcels Verifies both packed items and rejections, then triggers different events based on whether all, some, or none of the items were packed during the Pack phase;
- ReassignRejections Triggers an event to create parcels for the packed items. It also resets reserved inventory values and sends an event to source unfulfilled items from the next best location;
- RejectFulfilment Changes the fulfillment status to
```
`REJECTED`
```
  when no items can be packed. It then resets inventory values and triggers an event to source the unfulfilled items from another location;
- CreateParcels Creates parcels during the packing phase of fulfillment and sends an event indicating that the parcel (article) has been created.

1{
2  "name": "FulfilmentPack",
3  "description": "Event is triggered from the wave entity and starts the pack process for the items in the fulfilment",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.ConfirmFulfilmentItems",
9      "props": null
10    },
11    {
12      "name": "[[account.id]].core.SendEvent",
13      "props": {
14        "eventName": "VerifyFulfilmentItemsForPack"
15      }
16    }
17  ],
18  "triggers": [
19    {
20      "status": "ASSIGNED"
21    }
22  ],
23  "userActions": []
24},
25{
26  "name": "VerifyFulfilmentItemsForPack",
27  "description": "Verifies Fulfilment Items and triggers different events based on whether all,some or none of the items were picked during the Pick phase",
28  "type": "FULFILMENT",
29  "eventType": "NORMAL",
30  "rules": [
31    {
32      "name": "[[account.id]].order.VerifyingFulfilmentItems",
33      "props": {
34        "quantity": "ALL",
35        "eventName": "AllReadyForPack"
36      }
37    },
38    {
39      "name": "[[account.id]].order.VerifyingFulfilmentItems",
40      "props": {
41        "quantity": "PARTIAL",
42        "eventName": "PartiallyReadyForPack"
43      }
44    },
45    {
46      "name": "[[account.id]].order.VerifyingFulfilmentItems",
47      "props": {
48        "quantity": "NONE",
49        "eventName": "AllRejected"
50      }
51    }
52  ],
53  "triggers": [
54    {
55      "status": "ASSIGNED"
56    }
57  ],
58  "userActions": []
59},
60{
61  "name": "AllReadyForPack",
62  "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when all items in the Fulfilment are fulfilled from Store or Warehouse",
63  "type": "FULFILMENT",
64  "eventType": "NORMAL",
65  "rules": [
66    {
67      "name": "[[account.id]].core.SetState",
68      "props": {
69        "status": "READY_FOR_PACK"
70      }
71    },
72    {
73      "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
74      "props": {
75        "eventName": "UpdateInventoryQty",
76        "operation": "RESET_RESERVE",
77        "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
78        "retailerId": "[[inventory.retailer.id]]"
79      }
80    }
81  ],
82  "triggers": [
83    {
84      "status": "ASSIGNED"
85    }
86  ],
87  "userActions": []
88},
89{
90  "name": "PartiallyReadyForPack",
91  "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when only some items in the Fulfilment are fulfilled from Store or Warehouse. Sends an event to the order entity to source for the unfulfilled items from the next best location",
92  "type": "FULFILMENT",
93  "eventType": "NORMAL",
94  "rules": [
95    {
96      "name": "[[account.id]].core.SetState",
97      "props": {
98        "status": "READY_FOR_PACK"
99      }
100    },
101    {
102      "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
103      "props": {
104        "eventName": "UpdateInventoryQty",
105        "operation": "RESET_RESERVE",
106        "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
107        "retailerId": "[[inventory.retailer.id]]"
108      }
109    },
110    {
111      "name": "[[account.id]].order.SendEventForOrder",
112      "props": {
113        "eventName": "FindAndCreateOrderFulfilment"
114      }
115    }
116  ],
117  "triggers": [
118    {
119      "status": "ASSIGNED"
120    }
121  ],
122  "userActions": []
123},
124{
125  "name": "ConfirmParcels",
126  "description": "Event is triggered from the user action and starts the pack process for the items in the fulfilment",
127  "type": "FULFILMENT",
128  "subtype": "HD_PFS",
129  "eventType": "NORMAL",
130  "rules": [
131    {
132      "name": "[[account.id]].order.SetFulfilmentItemRejections",
133      "props": null
134    },
135    {
136      "name": "[[account.id]].core.SendEvent",
137      "props": {
138        "eventName": "VerifyParcels"
139      }
140    }
141  ],
142  "triggers": [
143    {
144      "status": "READY_FOR_PACK"
145    }
146  ],
147  "userActions": [
148    {
149      "context": [
150        {
151          "label": "Confirm Parcels",
152          "type": "PRIMARY",
153          "modules": [
154            "servicepoint",
155            "store"
156          ],
157          "confirm": true
158        }
159      ],
160      "attributes": [
161        {
162          "name": "packedItems",
163          "label": "Fulfilment Articles and Rejections",
164          "type": "FULFILMENT_PACK",
165          "source": "",
166          "defaultValue": "",
167          "mandatory": true
168        }
169      ]
170    }
171  ]
172},
173{
174  "name": "VerifyParcels",
175  "description": "Verifies Fulfilment Items and Rejections and triggers different events based on whether all,some or none of the items were packed during the PACK phase",
176  "type": "FULFILMENT",
177  "eventType": "NORMAL",
178  "rules": [
179    {
180      "name": "[[account.id]].order.SendEventOnVerifyingParcelsComplete",
181      "props": {
182        "eventName": "CreateParcels"
183      }
184    },
185    {
186      "name": "[[account.id]].order.SendEventOnVerifyingParcelsPartiallyComplete",
187      "props": {
188        "eventName": "ReassignRejections"
189      }
190    },
191    {
192      "name": "[[account.id]].order.SendEventOnVerifyingNoParcels",
193      "props": {
194        "eventName": "RejectFulfilment"
195      }
196    }
197  ],
198  "triggers": [
199    {
200      "status": "READY_FOR_PACK"
201    }
202  ],
203  "userActions": [
204  ]
205},
206{
207  "name": "ReassignRejections",
208  "description": "Sends an event to create parcels for packed items. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
209  "type": "FULFILMENT",
210  "eventType": "NORMAL",
211  "rules": [
212    {
213      "name": "[[account.id]].order.SendEventForOrder",
214      "props": {
215        "eventName": "FindAndCreateOrderFulfilment"
216      }
217    },
218    {
219      "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
220      "props": {
221        "eventName": "UpdateInventoryQty",
222        "operation": "RESET_RESERVE",
223        "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
224        "retailerId": "[[inventory.retailer.id]]"
225      }
226    },
227    {
228      "name": "[[account.id]].core.SendEvent",
229      "props": {
230        "eventName": "CreateParcels"
231      }
232    }
233  ],
234  "triggers": [
235    {
236      "status": "READY_FOR_PACK"
237    }
238  ],
239  "userActions": []
240},
241{
242  "name": "RejectFulfilment",
243  "description": "Changes the status of fulfilment to REJECTED when no items in the Fulfilment can be packed. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
244  "type": "FULFILMENT",
245  "eventType": "NORMAL",
246  "rules": [
247    {
248      "name": "[[account.id]].core.SetState",
249      "props": {
250        "status": "REJECTED"
251      }
252    },
253    {
254      "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
255      "props": {
256        "eventName": "UpdateInventoryQty",
257        "operation": "RESET_RESERVE",
258        "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
259        "retailerId": "[[inventory.retailer.id]]"
260      }
261    },
262    {
263      "name": "[[account.id]].order.SendEventForOrder",
264      "props": {
265        "eventName": "FindAndCreateOrderFulfilment"
266      }
267    }
268  ],
269  "triggers": [
270    {
271      "status": "READY_FOR_PACK"
272    }
273  ],
274  "userActions": []
275},
276{
277  "name": "CreateParcels",
278  "description": "Creates articles / parcels during pack phase of the fulfilment. Sends an event to indicate Article is created",
279  "type": "FULFILMENT",
280  "eventType": "NORMAL",
281  "rules": [
282    {
283      "name": "[[account.id]].order.CreateParcelsForFulfilment",
284      "props": null
285    },
286    {
287      "name": "[[account.id]].core.SendEvent",
288      "props": {
289        "eventName": "ArticleCreated"
290      }
291    }
292  ],
293  "triggers": [
294    {
295      "status": "READY_FOR_PACK"
296    }
297  ],
298  "userActions": []
299},

Language: json

Name: Order Workflow

Description:

New ruleSets for HD and CC Order Workflows

Change the rule
```
`SendEventForOrder`
```
to
```
`SendEventForOrderOnVerifyingRejections`
```
in Home Delivery and Click and Collect order workflows to support rejections during the pack step.

1{
2      "name": "AllArticlesAwaitingCourierCollection",
3      "description": "Changes fulfilment status and sends an event to Order if items was not rejected on Pack step",
4      "type": "FULFILMENT",
5      "eventType": "NORMAL",
6      "rules": [
7        {
8          "name": "[[account.id]].core.SetState",
9          "props": {
10            "status": "AWAITING_COURIER_COLLECTION"
11          }
12        },
13        {
14          "name": "[[account.id]].order.SendEventForOrderOnVerifyingRejections",
15          "props": {
16            "eventName": "FulfilmentAwaitingCourierCollection"
17          }
18        }
19      ],
20      "triggers": [
21        {
22          "status": "FULFILLED"
23        },
24        {
25          "status": "PARTIALLY_FULFILLED"
26        },
27        {
28          "status": "READY_FOR_PACK"
29        }
30      ],
31      "userActions": []
32}

Language: json

Name: Home Delivery Order Workflow: SendEventForOrderOnVerifyingRejections rule usage

Description:

Home Delivery Order Workflow: AllArticlesAwaitingCourierCollection ruleset with new SendEventForOrderOnVerifyingRejections rule.

1{
2      "name": "AllArticlesAwaitingCustomerCollection",
3      "description": "Changes fulfilment status and sends an event to Order if items was not rejected on Pack step",
4      "type": "FULFILMENT",
5      "eventType": "NORMAL",
6      "rules": [
7        {
8          "name": "[[account.id]].core.SetState",
9          "props": {
10            "status": "AWAITING_CUSTOMER_COLLECTION"
11          }
12        },
13        {
14          "name": "[[account.id]].order.SendEventForOrderOnVerifyingRejections",
15          "props": {
16            "eventName": "FulfilmentAwaitingCollection"
17          }
18        }
19      ],
20      "triggers": [
21        {
22          "status": "FULFILLED"
23        },
24        {
25          "status": "PARTIALLY_FULFILLED"
26        },
27        {
28          "status": "READY_FOR_PACK"
29        }
30      ],
31      "userActions": []
32    }

Language: json

Name: Click and Collect Order Workflow: SendEventForOrderOnVerifyingRejections rule usage

Description:

Click and Collect Order Workflow: AllArticlesAwaitingCustomerCollection ruleset with new SendEventForOrderOnVerifyingRejections rule.

Additionally, for Click and Collect (CC) orders, add the
```
`ModifyFulfilmentTypeToHDPFS`
```
ruleSet to modify fulfillment types for delivery.

1{
2  "name": "ModifyFulfilmentTypeToHDPFS",
3  "description": "Modifies the fulfilment type to indicate it is for delivery",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.UpdateFulfilmentType",
9      "props": {
10        "fulfilmentType": "HD_PFS"
11      }
12    },
13    {
14      "name": "[[account.id]].core.SetState",
15      "props": {
16        "status": "FULFILLED"
17      }
18    }
19  ],
20  "triggers": [
21    {
22      "status": "READY_FOR_PACK"
23    }
24  ],
25  "userActions": []
26}

Language: json

Name: ModifyFulfilmentTypeToHDPFS ruleset

Description:

`ModifyFulfilmentTypeToHDPFS`

ruleSet

For Mixed Basket order workflow, include rules for handling mixed basket order type.

1{
2      "name": "FulfilmentPack",
3      "description": "Event is triggered from the wave entity and starts the pack process for the items in the fulfilment",
4      "type": "FULFILMENT",
5      "eventType": "NORMAL",
6      "rules": [
7        {
8          "name": "[[account.id]].order.ConfirmFulfilmentItems",
9          "props": null
10        },
11        {
12          "name": "[[account.id]].core.SendEvent",
13          "props": {
14            "eventName": "VerifyFulfilmentItemsForPack"
15          }
16        }
17      ],
18      "triggers": [
19        {
20          "status": "ASSIGNED"
21        }
22      ],
23      "userActions": []
24    },
25    {
26      "name": "VerifyFulfilmentItemsForPack",
27      "description": "Verifies Fulfilment Items and triggers different events based on whether all,some or none of the items were picked during the Pick phase",
28      "type": "FULFILMENT",
29      "eventType": "NORMAL",
30      "rules": [
31        {
32          "name": "[[account.id]].order.VerifyingFulfilmentItems",
33          "props": {
34            "quantity": "ALL",
35            "eventName": "AllReadyForPack"
36          }
37        },
38        {
39          "name": "[[account.id]].order.VerifyingFulfilmentItems",
40          "props": {
41            "quantity": "PARTIAL",
42            "eventName": "PartiallyReadyForPack"
43          }
44        },
45        {
46          "name": "[[account.id]].order.VerifyingFulfilmentItems",
47          "props": {
48            "quantity": "NONE",
49            "eventName": "AllRejected"
50          }
51        }
52      ],
53      "triggers": [
54        {
55          "status": "ASSIGNED"
56        }
57      ],
58      "userActions": []
59    },
60    {
61      "name": "AllReadyForPack",
62      "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when all items in the Fulfilment are fulfilled from Store or Warehouse",
63      "type": "FULFILMENT",
64      "eventType": "NORMAL",
65      "rules": [
66        {
67          "name": "[[account.id]].core.SetState",
68          "props": {
69            "status": "READY_FOR_PACK"
70          }
71        },
72        {
73          "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
74          "props": {
75            "eventName": "UpdateInventoryQty",
76            "operation": "RESET_RESERVE",
77            "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
78            "retailerId": "[[inventory.retailer.id]]"
79          }
80        }
81      ],
82      "triggers": [
83        {
84          "status": "ASSIGNED"
85        }
86      ],
87      "userActions": []
88    },
89    {
90      "name": "PartiallyReadyForPack",
91      "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when only some items in the Fulfilment are fulfilled from Store or Warehouse. Sends an event to the order entity to source for the unfulfilled items from the next best location",
92      "type": "FULFILMENT",
93      "eventType": "NORMAL",
94      "rules": [
95        {
96          "name": "[[account.id]].core.SetState",
97          "props": {
98            "status": "READY_FOR_PACK"
99          }
100        },
101        {
102          "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
103          "props": {
104            "eventName": "UpdateInventoryQty",
105            "operation": "RESET_RESERVE",
106            "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
107            "retailerId": "[[inventory.retailer.id]]"
108          }
109        },
110        {
111          "name": "[[account.id]].order.SendEventForFulfilmentChoice",
112          "props": {
113            "eventName": "FindAndCreateFulfilment"
114          }
115        }
116      ],
117      "triggers": [
118        {
119          "status": "ASSIGNED"
120        }
121      ],
122      "userActions": []
123    },
124    {
125      "name": "ConfirmParcels",
126      "description": "Event is triggered from the user action and starts the pack process for the items in the fulfilment",
127      "type": "FULFILMENT",
128      "subtype": "HD_PFS",
129      "eventType": "NORMAL",
130      "rules": [
131        {
132          "name": "[[account.id]].order.SetFulfilmentItemRejections",
133          "props": null
134        },
135        {
136          "name": "[[account.id]].core.SendEvent",
137          "props": {
138            "eventName": "VerifyParcels"
139          }
140        }
141      ],
142      "triggers": [
143        {
144          "status": "READY_FOR_PACK"
145        }
146      ],
147      "userActions": [
148        {
149          "context": [
150            {
151              "label": "Confirm Parcels",
152              "type": "PRIMARY",
153              "modules": [
154                "servicepoint",
155                "store"
156              ],
157              "confirm": true
158            }
159          ],
160          "attributes": [
161            {
162              "name": "packedItems",
163              "label": "Fulfilment Articles and Rejections",
164              "type": "FULFILMENT_PACK",
165              "source": "",
166              "defaultValue": "",
167              "mandatory": true
168            }
169          ]
170        }
171      ]
172    },
173    {
174      "name": "ConfirmParcels",
175      "description": "Event is triggered from the user action and starts the pack process for the items in the fulfilment",
176      "type": "FULFILMENT",
177      "subtype": "CC_PFS",
178      "eventType": "NORMAL",
179      "rules": [
180        {
181          "name": "[[account.id]].order.SetFulfilmentItemRejections",
182          "props": null
183        },
184        {
185          "name": "[[account.id]].core.SendEvent",
186          "props": {
187            "eventName": "VerifyParcels"
188          }
189        }
190      ],
191      "triggers": [
192        {
193          "status": "READY_FOR_PACK"
194        }
195      ],
196      "userActions": [
197        {
198          "context": [
199            {
200              "label": "Confirm Parcels",
201              "type": "PRIMARY",
202              "modules": [
203                "servicepoint",
204                "store"
205              ],
206              "confirm": true
207            }
208          ],
209          "attributes": [
210            {
211              "name": "packedItems",
212              "label": "Fulfilment Articles and Rejections",
213              "type": "FULFILMENT_PACK",
214              "source": "",
215              "defaultValue": "",
216              "mandatory": true
217            }
218          ]
219        }
220      ]
221    },
222    {
223      "name": "ConfirmParcels",
224      "description": "Event is triggered from the user action and starts the pack process for the items in the fulfilment",
225      "type": "FULFILMENT",
226      "subtype": "CC_PFCP",
227      "eventType": "NORMAL",
228      "rules": [
229        {
230          "name": "[[account.id]].order.SetFulfilmentItemRejections",
231          "props": null
232        },
233        {
234          "name": "[[account.id]].core.SendEvent",
235          "props": {
236            "eventName": "VerifyParcels"
237          }
238        }
239      ],
240      "triggers": [
241        {
242          "status": "READY_FOR_PACK"
243        }
244      ],
245      "userActions": [
246        {
247          "context": [
248            {
249              "label": "Confirm Parcels",
250              "type": "PRIMARY",
251              "modules": [
252                "servicepoint",
253                "store"
254              ],
255              "confirm": true
256            }
257          ],
258          "attributes": [
259            {
260              "name": "packedItems",
261              "label": "Fulfilment Articles and Rejections",
262              "type": "FULFILMENT_PACK",
263              "source": "",
264              "defaultValue": "",
265              "mandatory": true
266            }
267          ]
268        }
269      ]
270    },
271    {
272      "name": "VerifyParcels",
273      "description": "Verifies Fulfilment Items and Rejections and triggers different events based on whether all,some or none of the items were packed during the PACK phase",
274      "type": "FULFILMENT",
275      "eventType": "NORMAL",
276      "rules": [
277        {
278          "name": "[[account.id]].order.SendEventOnVerifyingParcelsComplete",
279          "props": {
280            "eventName": "CreateParcels"
281          }
282        },
283        {
284          "name": "[[account.id]].order.SendEventOnVerifyingParcelsPartiallyComplete",
285          "props": {
286            "eventName": "ReassignRejections"
287          }
288        },
289        {
290          "name": "[[account.id]].order.SendEventOnVerifyingNoParcels",
291          "props": {
292            "eventName": "RejectFulfilment"
293          }
294        }
295      ],
296      "triggers": [
297        {
298          "status": "READY_FOR_PACK"
299        }
300      ],
301      "userActions": [
302      ]
303    },
304    {
305      "name": "ReassignRejections",
306      "description": "Sends an event to create parcels for packed items. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
307      "type": "FULFILMENT",
308      "eventType": "NORMAL",
309      "rules": [
310        {
311          "name": "[[account.id]].order.SendEventForFulfilmentChoice",
312          "props": {
313            "eventName": "FindAndCreateFulfilment"
314          }
315        },
316        {
317          "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
318          "props": {
319            "eventName": "UpdateInventoryQty",
320            "operation": "RESET_RESERVE",
321            "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
322            "retailerId": "[[inventory.retailer.id]]"
323          }
324        },
325        {
326          "name": "[[account.id]].core.SendEvent",
327          "props": {
328            "eventName": "CreateParcels"
329          }
330        }
331      ],
332      "triggers": [
333        {
334          "status": "READY_FOR_PACK"
335        }
336      ],
337      "userActions": []
338    },
339    {
340      "name": "RejectFulfilment",
341      "description": "Changes the status of fulfilment to REJECTED when no items in the Fulfilment can be packed. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
342      "type": "FULFILMENT",
343      "eventType": "NORMAL",
344      "rules": [
345        {
346          "name": "[[account.id]].core.SetState",
347          "props": {
348            "status": "REJECTED"
349          }
350        },
351        {
352          "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
353          "props": {
354            "eventName": "UpdateInventoryQty",
355            "operation": "RESET_RESERVE",
356            "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
357            "retailerId": "[[inventory.retailer.id]]"
358          }
359        },
360        {
361          "name": "[[account.id]].order.SendEventForFulfilmentChoice",
362          "props": {
363            "eventName": "FindAndCreateFulfilment"
364          }
365        }
366      ],
367      "triggers": [
368        {
369          "status": "READY_FOR_PACK"
370        }
371      ],
372      "userActions": []
373    },
374    {
375      "name": "CreateParcels",
376      "description": "Creates articles / parcels during pack phase of the fulfilment. Sends an event to indicate Article is created",
377      "type": "FULFILMENT",
378      "eventType": "NORMAL",
379      "rules": [
380        {
381          "name": "[[account.id]].order.CreateParcelsForFulfilment",
382          "props": null
383        },
384        {
385          "name": "[[account.id]].core.SendEvent",
386          "props": {
387            "eventName": "ArticleCreated"
388          }
389        }
390      ],
391      "triggers": [
392        {
393          "status": "READY_FOR_PACK"
394        }
395      ],
396      "userActions": []
397    },
398{
399      "name": "ModifyFulfilmentTypeToHDPFS",
400      "description": "Modifies the fulfilment type to indicate it is for delivery",
401      "type": "FULFILMENT",
402      "eventType": "NORMAL",
403      "rules": [
404        {
405          "name": "[[account.id]].order.UpdateFulfilmentType",
406          "props": {
407            "fulfilmentType": "HD_PFS"
408          }
409        },
410        {
411          "name": "[[account.id]].core.SetState",
412          "props": {
413            "status": "FULFILLED"
414          }
415        }
416      ],
417      "triggers": [
418        {
419          "status": "READY_FOR_PACK"
420        }
421      ],
422      "userActions": []
423    },

Language: json

Name: Mixed Basket Order Workflow

Description:

New ruleSets for Mixed Baskets Order Workflows

Change the rule
```
`SendEventForFulfilmentChoice`
```
to
```
`SendEventForFulfilmentChoiceOnVerifyingRejections`
```
in the Mixed Basket order workflow to support rejections during the pack step.

1{
2      "name": "AllArticlesAwaitingCourierCollection",
3      "description": "Fulfilment State Change to AWAITING_COURIER_COLLECTION",
4      "type": "FULFILMENT",
5      "eventType": "NORMAL",
6      "rules": [
7        {
8          "name": "[[account.id]].core.SetState",
9          "props": {
10            "status": "AWAITING_COURIER_COLLECTION"
11          }
12        },
13        {
14          "name": "[[account.id]].order.SendEventForFulfilmentChoiceOnVerifyingRejections",
15          "props": {
16            "eventName": "FulfilmentAwaitingCourierCollection"
17          }
18        }
19      ],
20      "triggers": [
21        {
22          "status": "FULFILLED"
23        },
24        {
25          "status": "PARTIALLY_FULFILLED"
26        },
27        {
28          "status": "READY_FOR_PACK"
29        }
30      ],
31      "userActions": []
32    },
33{
34      "name": "AllArticlesAwaitingCustomerCollection",
35      "description": "Sends an event to Order and changes fulfilment status",
36      "type": "FULFILMENT",
37      "eventType": "NORMAL",
38      "rules": [
39        {
40          "name": "[[account.id]].core.SetState",
41          "props": {
42            "status": "AWAITING_CUSTOMER_COLLECTION"
43          }
44        },
45        {
46          "name": "[[account.id]].order.SendEventForFulfilmentChoiceOnVerifyingRejections",
47          "props": {
48            "eventName": "FulfilmentAwaitingCollection"
49          }
50        }
51      ],
52      "triggers": [
53        {
54          "status": "FULFILLED"
55        },
56        {
57          "status": "PARTIALLY_FULFILLED"
58        },
59        {
60          "status": "READY_FOR_PACK"
61        }
62      ],
63      "userActions": []
64    }

Language: json

Name: Mixed Basket Order Workflow: SendEventForFulfilmentChoiceOnVerifyingRejections usage

Description:

SendEventForFulfilmentChoiceOnVerifyingRejections usage

Final Adjustments:

Replace the subtype in the

`ConfirmParcels`

ruleSet with the specific subtypes for your workflow. This ensures that the correct statuses are triggered based on the entity type.

Replace the subtype in the ConfirmParcels ruleSet with the specific types for your workflow. This ensures that the event does not result in a
```
`NO_MATCH`
```
status.

Why do you need to replace the subtype

The subtype replacement is necessary because the UI components send a

`/api/v4.1/transition`

request, including the type and subtype of the current entity. In the reference solution, both the PICK and PACK steps work with a Wave entity, which only has the STORE subtype, causing no issues. However, in the new capability, the PACK step interacts with a Fulfilment entity, which can have different subtypes depending on the order type. If the subtype in the request does not match the subtype in the workflow, the UI component won't be able to find the correct user action, leading to a mismatch.

Include the

`READY_FOR_PACK`

status in the appropriate trigger statuses for the following ruleSets:

`ArticleCreated`

`ScheduleDemoConsignment`

`CreateConsignment`

`ArticleAwaitingCourierCollection`

`AllArticlesAwaitingCourierCollection`

`ModifyFulfilmentTypeToCCPFS`

`ArticleAwaitingCustomerCollection`

, and

`AllArticlesAwaitingCustomerCollection`

Add the new
```
`READY_FOR_PACK`
```
status to your HD, CC, and Mixed Basket workflows.

1{
2            "name": "READY_FOR_PACK",
3            "entityType": "FULFILMENT",
4            "category": "FULFILMENT"
5}

Language: json

Name: READY_FOR_PACK status

Description:

READY_FOR_PACK status

Important to Remember

Converting Reserved Quantities during the Fulfilment Process

In the reference workflow, when a Fulfillment is created, the corresponding item quantities are set as reserved inventory quantities and are later converted into sale and correction quantities during the picking and packing process.

With the introduction of the Assigning Items to Parcels capability, item quantities may be rejected at either the picking or packing stages, or both, depending on your specific business processes.

To ensure the correct conversion of RESERVED records into their respective SALE or CORRECTION records, it is recommended to place the rule SendEventToUpdateInventoryQuantity after the packing step.
This ensures that inventory updates are accurate and reflect the final state of the fulfillment process.

Let's say you need to convert RESERVED to SALE and CORRECTION after the packing step. To achieve this:

Step 1. Remove the

`SendEventToUpdateInventoryQuantity`

rule from several key rulesets:

```
`AllReadyForPack`
```
```
`PartiallyReadyForPack`
```
```
`ReassignRejections`
```
```
`RejectFulfilment`
```

Once these adjustments are made, each ruleset will look something like this:

1{
2  "name": "AllReadyForPack",
3  "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when all items in the Fulfilment are fulfilled from Store or Warehouse",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].core.SetState",
9      "props": {
10        "status": "READY_FOR_PACK"
11      }
12    }
13  ],
14  "triggers": [
15    {
16      "status": "ASSIGNED"
17    }
18  ],
19  "userActions": []
20}
21

Language: plain_text

Name: AllReadyForPack

Description:

Updated AllReadyForPack ruleset

1{
2  "name": "PartiallyReadyForPack",
3  "description": "Sends an event to inventory to reset the reserved inventory values and changes the status of fulfilment to READY_FOR_PACK when only some items in the Fulfilment are fulfilled from Store or Warehouse. Sends an event to the order entity to source for the unfulfilled items from the next best location",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].core.SetState",
9      "props": {
10        "status": "READY_FOR_PACK"
11      }
12    },
13    {
14      "name": "[[account.id]].order.SendEventForOrder",
15      "props": {
16        "eventName": "FindAndCreateOrderFulfilment"
17      }
18    }
19  ],
20  "triggers": [
21    {
22      "status": "ASSIGNED"
23    }
24  ],
25  "userActions": []
26}
27

Language: plain_text

Name: PartiallyReadyForPack

Description:

Updated PartiallyReadyForPack ruleset

1{
2  "name": "ReassignRejections",
3  "description": "Sends an event to create parcels for packed items. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.SendEventForOrder",
9      "props": {
10        "eventName": "FindAndCreateOrderFulfilment"
11      }
12    },
13    {
14      "name": "[[account.id]].core.SendEvent",
15      "props": {
16        "eventName": "CreateParcels"
17      }
18    }
19  ],
20  "triggers": [
21    {
22      "status": "READY_FOR_PACK"
23    }
24  ],
25  "userActions": []
26}
27

Language: plain_text

Name: ReassignRejections

Description:

Updated ReassignRejections ruleset

1{
2  "name": "RejectFulfilment",
3  "description": "Changes the status of fulfilment to REJECTED when no items in the Fulfilment can be packed. Sends an event to inventory to reset the reserved inventory values. Sends an event to the order entity to source for the unfulfilled items from the next best location",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].core.SetState",
9      "props": {
10        "status": "REJECTED"
11      }
12    },
13    {
14      "name": "[[account.id]].order.SendEventForOrder",
15      "props": {
16        "eventName": "FindAndCreateOrderFulfilment"
17      }
18    }
19  ],
20  "triggers": [
21    {
22      "status": "READY_FOR_PACK"
23    }
24  ],
25  "userActions": []
26}
27

Language: plain_text

Name: RejectFulfilment

Description:

Updated RejectFulfilment ruleset

Step 2. Add the

`SendEventToUpdateInventoryQuantity`

rule to the

`VerifyParcels`

ruleset.

1{
2  "name": "VerifyParcels",
3  "description": "Verifies Fulfilment Items and Rejections and triggers different events based on whether all,some or none of the items were packed during the PACK phase",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.SendEventOnVerifyingParcelsComplete",
9      "props": {
10        "eventName": "CreateParcels"
11      }
12    },
13    {
14      "name": "[[account.id]].order.SendEventOnVerifyingParcelsPartiallyComplete",
15      "props": {
16        "eventName": "ReassignRejections"
17      }
18    },
19    {
20      "name": "[[account.id]].order.SendEventOnVerifyingNoParcels",
21      "props": {
22        "eventName": "RejectFulfilment"
23      }
24    },
25    {
26      "name": "[[account.id]].order.SendEventToUpdateInventoryQuantity",
27      "props": {
28        "eventName": "UpdateInventoryQty",
29        "operation": "RESET_RESERVE",
30        "inventoryCatalogueRef": "[[inventory.catalogue.ref]]",
31        "retailerId": "[[inventory.retailer.id]]"
32      }
33    }
34  ],
35  "triggers": [
36    {
37      "status": "READY_FOR_PACK"
38    }
39  ],
40  "userActions": []
41}

Language: plain_text

Name: VerifyParcels

Description:

Updated VerifyParcels ruleset

Update the Main Store Manifest

To access the new Pack page and activate the updated Create Wave logic, modify the

`fc.mystique.manifest.store`

manifest by adding the fc.mystique.manifest.store.fragment.pack fragment. Additionally, replace fc.mystique.manifest.store.fragment.waves with fc.mystique.manifest.store.fragment.waves.assigningitems.
For step-by-step instructions, refer to the guide 'How to Override the Default Manifest.'

The fragment fc.mystique.manifest.store.fragment.pack adds a new root page called Pack to the Fluent Store web app. This page provides the reference configuration for the Assigning Items to Parcels capability, enabling Store Associates to efficiently handle the packing process for multi-parcel shipments. They can assign items to specific parcels, create new parcels, set dimensions and weight, remove parcels, and reject items that don't meet the necessary criteria. Additionally, Store Associates can review all articles in the fulfillment to ensure accuracy after packing is completed.

The fragment fc.mystique.manifest.store.fragment.waves.assigningitems contains updates that enable completing the wave at the Pick stage, streamlining the order fulfillment process by finishing the wave after items are picked.

1
2
3{
4    "manifestVersion": "2.0",
5    "name": "store",
6    "title": "Fluent Store",
7    "orchestrationAlias": "servicepoint",
8    "homePath": "waves",
9    "plugins": [
10        {
11            "type": "url",
12            "src": "/_plugins/store"
13        },
14        {
15            "type": "url",
16            "src": "/_plugins/returns"
17        }
18    ],
19    "context": {
20        "level": "location",
21        "role": [
22            "STORE_ASSISTANT",
23            "STORE"
24        ],
25        "switcher": true
26    },
27    "routes": [
28        {
29            "type": "reference",
30            "settingName": "fc.mystique.manifest.store.fragment.pack"
31        },
32        {
33            "type": "reference",
34            "settingName": "fc.mystique.manifest.store.fragment.waves.assigningitems"
35        },
36        {
37            "type": "reference",
38            "settingName": "fc.mystique.manifest.store.fragment.orders.awaitingpick"
39        },
40        {
41            "type": "reference",
42            "settingName": "fc.mystique.manifest.store.fragment.waves.inprogress"
43        },
44        {
45            "type": "reference",
46            "settingName": "fc.mystique.manifest.store.fragment.waves.complete"
47        },
48        {
49            "type": "reference",
50            "settingName": "fc.mystique.manifest.store.fragment.arrivals"
51        },
52        {
53            "type": "reference",
54            "settingName": "fc.mystique.manifest.store.fragment.customer.collections"
55        },
56        {
57            "type": "reference",
58            "settingName": "fc.mystique.manifest.store.fragment.carrier.collections"
59        },
60        {
61            "type": "reference",
62            "settingName": "fc.mystique.manifest.store.fragment.uncollected"
63        },
64        {
65            "type": "reference",
66            "settingName": "fc.mystique.manifest.store.fragment.returns"
67        }
68    ]
69}

Language: plain_text

Name: Updated fc.mystique.manifest.store

Description:

The Main Store manifest with the new fragment

Update Store User Permissions

Verify the user's Store permissions. They must have the

`ARTICLEITEM_VIEW`

permission to see packed items in parcels. If this permission is missing, you'll need to update their role accordingly. You can do this manually through the Fluent OMS app (Admin section) or via the GraphQL Roles API.

Configure PDF for the Pack Slip

To enable the option to print generated pack slips when the packing process is completed, configure printable pack slips through

`fc.store.summary.print.pack.slip`

setting. For more information, refer to the Configure Printable Pack Slips guide.

Configure PDF for the Order Labels

To enable the option to generate and print PDF order labels upon pack completion, configure printable order labels through the

`fc.store.summary.print.pack.label`

setting. Consult the Configure Printable Order Labels guide for detailed configuration steps.

Optional enhancements

The following enhancements can be enabled through ACCOUNT or RETAILER level settings:

Customize the Pack Wizard by configuring the fc.mystique.fields.fulfilmentpack configuration to suit your store's or fulfillment operation's needs. For more details, check the Pack Field Component Configuration guide.
Create the fc.mystique.pack.rejection.reasons setting to manage rejected reasons. You can modify the existing rejection reasons or add new ones tailored to your business.
Configure color-coded dots for consignment statuses on the Summary page to highlight key information. Adjust the Status Dots by updating the hex codes in the
```
`fc.store.summary.consignment.list.status.column`
```
setting. For full instructions, check out:

Default Rejection Reasons

If rejection reasons aren't configured, the Pack component will automatically apply the default reasons, which include:

Damaged Item
Incorrect Item
Damaged Packaging
Item Not Found

Enable Store Associates to assign Items to Parcels

Key Points

Prerequisites

Adding a Workflow to your Retailer via API

Overriding the default manifest

Steps

Install the Latest Order, Fulfilment, and Core Modules

Update Workflows

Update the Main Store Manifest

Update Store User Permissions

Configure PDF for the Pack Slip

Configure PDF for the Order Labels

Optional enhancements

Related content

Role Creation and Editing Mutations

Settings Creation and Editing Mutations

Order Workflow Templates Overview

Yulia Andreyanova

Building Blocks

By Type

Helpful Resources

Quick Links
