SendEventOnVerifyingParcelsPartiallyComplete

Home
Essential Knowledge
By Type
Building Blocks
APIs
Releases

Rule

Changed on:

2 Oct 2024

Overview

This rule is executed when both packed items and rejections are present.

Plugin Name	Order Reference Module
Namespace	[[account.id]].order

The Order Reference Module is the foundation for order-related implementations. It provides reference workflows for click & collect, home delivery and mixed baskets and those needed to build your own. Extensible by design, use this Module as a base to build a solution to your customers' needs.

Order Reference Module

UI Description

Send event {eventName } if parcels complete the fulfilment

Accepts

Fulfilment

Actions

This Rule conditionally produces a
```
`SendEventAction`
```

Rule parameters

Name	Type	Description
eventName	String	Name of the event to send if the check passes.

Event attributes

Parameter	Description	Data Type	Required?
packedItems	The list of packed and rejected fulfilment items	Object	Required

Exceptions

This rule may result in following exception:

throw
```
`IllegalArgumentException`
```
if incoming event has no
```
`packedItems`
```
attribute

Configuration example

1{
2  "name": "[[account.id]].order.SendEventOnVerifyingParcelsPartiallyComplete",
3  "props": {
4       "eventName": "ReassignRejections"
5  }
6}

Language: json

Detailed Technical Description

This Rule produces a

`SendEventAction`

if items are not empty in the

`packedItems.articles`

attribute, and the

`packedItems.rejections`

attribute is not empty.

1{"packedItems": {
2      "articles": [
3        {
4          "barcode": "4567",
5          "height": "30",
6          "length": "30",
7          "maxWeight": "9.9",
8          "minWeight": "5",
9          "packaging_name": "Medium",
10          "weight": "8",
11          "width": "30",
12          "items": [
13            {
14              "fulfilmentItemId": "140",
15              "quantity": 2
16            },
17            {
18              "fulfilmentItemId": "139",
19              "quantity": 1
20            }
21          ]
22        }
23      ],
24      "rejections": [
25        {
26          "fulfilmentItemId": "139",
27          "rejectedQty": 2,
28          "rejectReason": {
29            "label": "fc.sf.rejectionReason.damagedItem",
30            "value": "damagedItem"
31          }
32        }
33      ]
34    }
35  }

Language: json

Name: Example of packedItems attribute

Description:

[Warning: empty required content area]

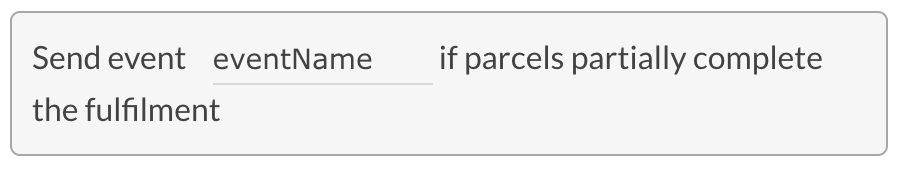

Workflow Builder (Modeller) Screenshot

Version History

2024-10-08

v1.0.0

Initial release
