UX Framework - Overview

Essential knowledge

Author:

Fluent Commerce

Changed on:

9 July 2024

Overview

The OMX UX Framework, or Mystique, delivers configuration-based solution implementation for UIs (Web Apps) that understand the Fluent Platform. It enables UIs to react to changes within workflows and provides best-in-class user experience and design. Web apps can be built using code-free configuration, utilising a rich library of ready-to-use UI Components.  Customising UIs to meet specific business requirements using Component SDKs is also possible.  Configuration is managed in a JSON document called the OMX Web App Manifest.


Key points

  • Code-free configuration through the Manifest document.
  • Dynamic user management experience.
  • Configurable left-navigation menu items.
  • Dynamic views, labels, and fields based on configuration and GraphQL queries.
  • Dynamic and contextual user actions based on workflow configuration.
  • Create and edit all entities, including non-workflow entities.
  • Customise UIs to meet specific business needs and processes.
  • Configure contextual actions based on roles and process states.

Key Features

No alt provided

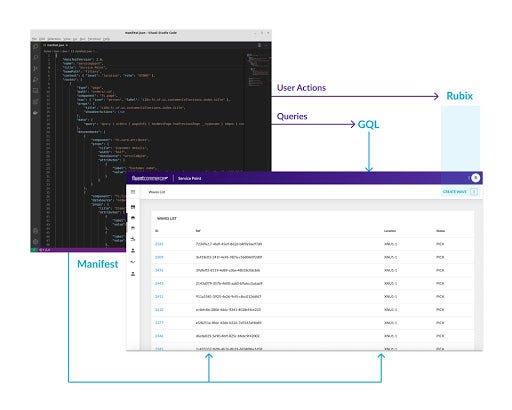

The OMX UX Framework consists of the following parts:

  • A configurable Web App Framework with a ready-to-use library of UI Components for immediate use within the Manifest document, which is a human-readable JSON document that defines the navigation, screen layout, data sources and user actions.
  • A Component SDK which enables developers to create new components to extend Web app functionality.
  • A Design System.

Additionally, it provides Role and User context to support organisational structure and processes,

No alt provided


Areas of extension

Component SDK provides the ability to develop new custom components for extending the standard library.

Areas of extension include:

  • New cards to display information from Fluent APIs or external sources.
  • New form field types that work with rules to extend user action capability.
  • Entirely new customised pages.

Some Utility Components are also provided to make building custom components easier and more consistent.
