Changed on:

9 Oct 2025

Setting Area	UI component, Orders, Workflow
Supported context levels:	ACCOUNT RETAILER AGENT

Overview

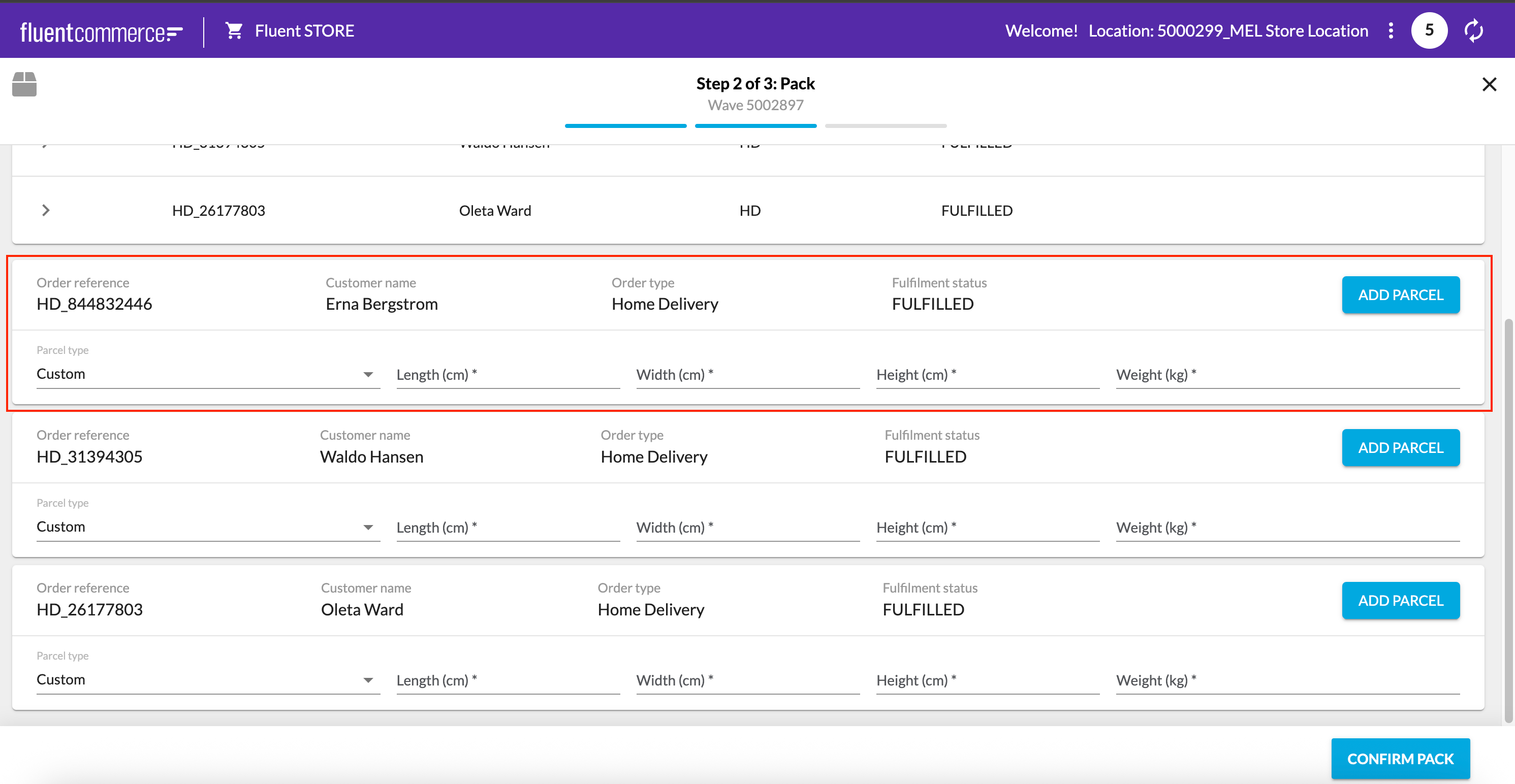

The `fc.mystique.fields.basicpack` setting enables the configuration of the Multi-Parcel Component fields.

Values

Data Type	Values
JSON	See Technical Description

Detailed technical description

This setting can be used at various different context levels to achieve different results. The setting will look for the lowest level context first and then move upwards until it finds one containing a `fc.mystique.fields.basicpack` setting.For example, you can have one setting at the `ACCOUNT` level, and two settings for `LOCATION 3`and `LOCATION 5`. This will cause `LOCATION 3`and `LOCATION 5` to use specific parcel type settings, whereas all other location will use the more general `ACCOUNT` level setting.If no setting can be found, then the system will look for legacy attributes on an `AGENT` context to populate the field. If neither of these can be found, then the field will render with the dropdown containing the `custom` parcel type.

Note

If you are using the legacy solution via `AGENT` attributes the following knowledge base article provides steps for migration.

Header Properties

Name	Required	Type	Default	Description
query	No	String	See Query Property below	An optional override for the default GraphQL query used to populate the basicpack component. The default query is provided below. The basicpack field requires certain data to be retrieved to function correctly, so if you need to retrieve more data than the default provides it is recommended to use the default query as a base and add additional fields to that, rather than generate a new query from scratch.
attributes	No	Array	See schema	Optional overrides for the data shown in each column of the multi-parcel component. Configuration details and default values are captured in the Attributes Configuration section. By default without overrides the following fields are shown in the table: Order Reference, Customer Name, Order Type and Fulfilment Status.
allowMultipleParcelsPerItem	No	Boolean	true	Determines whether to enable validation that limits the number of parcels that can be added to the fulfilment. When this setting is `true`, there is no limit on the parcels that can be added to the fulfilment. However, when this setting is set to `false` then the number of parcels cannot exceed the total `quantity` of `items` within the fulfilment.
parcelTypes	Yes	Parcel Types	N/A	The definition of what parcel types there are. See Parcel Types Property for the keywords available for this object.

Query Property

The following is the default query that is used to populate them basicpack component. If the `query` prop is populated then that value will be passed instead of this default query. Otherwise, if left empty then the default will be used.

Warning

The basicpack component requires certain mandatory data to run as expected. If you need to alter the query, then it is recommended you add new fields in addition to the default rather than removing any. If not, you may run into issues with the base functionality of the field component. There is no validation to inhibit you from removing the mandatory fields.

1query ($waveId: ID!) {
2  waveById(id: $waveId) {
3    id
4    ref
5    status
6    location {
7      id
8      ref
9      attributes {
10        name
11        type
12        value
13      }
14    }
15    fulfilments(first: 100) {
16      edges {
17        node {
18          id
19          ref
20          status
21          toAddress {
22            id
23            ref
24          }
25          items(first: 100) {
26            edges {
27              node {
28                ref
29                filledQuantity
30                rejectedQuantity
31                requestedQuantity
32              }
33            }
34          }
35          order {
36            id
37            ref
38            type
39            status
40            fulfilmentChoice {
41              deliveryType
42            }
43            customer {
44              firstName
45              lastName
46              primaryEmail
47              primaryPhone
48            }
49          }
50        }
51      }
52    }
53  }
54}

Attribute Property

When not explicitly specified, the following configuration is displayed by default:

Name	Required	Type	Default	Description
value	Yes	String	NA	The value for a corresponding cell in a given column. For example if you were to display the order reference number you would use `{{data.order.ref}}`
label	Yes	String	NA	The column label. This is a template string For example if you were to display the label "Order Reference" you would use `["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.ref.heading", "Order reference"]`
hideBelow	No	`'xs'` / `'sm'` / `'md'` / `'lg'` / `'xl'`	Undefined	Optional to hide columns and values below certain breakpoints. If not specified, the column will not be hidden.

1  "attributes": [
2    {
3      "value": "{{order.ref}}",
4      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.ref.heading", "Order reference"],
5      "hideBelow": "sm"
6    },
7    {
8      "value": "{{order.customer.firstName}} {{order.customer.lastName}}",
9      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.customer.name.heading", "Customer name"]
10    },
11    {
12      "value": "{{orderType}}",
13      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.type.heading", "Order type"]
14    },
15    {
16      "value": "{{status}}",
17      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.fulfilment.status.heading", "Fulfilment status"]
18    }
19  ]

Parcel Types Property

Name	Required	Type	Default	Description
defaultParcel	No	String	None	The default parcel type. This value will be preselected on the parcel type dropdown when the page first loads. This creates a more efficient packing process, however may increase user error. If no value is defined, then the initial state of the dropdown will be blank. This forces the user to explicitly choose a parcel each time. The string must match the name of the parcel types under parcels. Otherwise, the default will remain blank.
parcels	Yes	Array of parcels	N/A	A list of parcels. Each entry in the array represents one option in the dropdown.Configuration details are captured in the Parcels data dictionary section.

Parcels Properties

Decimal Places in Properties

The `length`, width and height properties only allow values with up to one decimal place (0.0). The `defaultWeight` property can contain up to two decimal places (0.00).

Add the details about each individual parcel in the parcels object below

Name	Required	Type	Description
name	Yes	String	The name of the parcel. This is what will be displayed on the dropdown to the end user.
length(cm)	Yes	Number	The length of the parcel in centimetres
width(cm)	Yes	Number	The width of the parcel in centimetres
height(cm)	Yes	Number	The height of the parcel in centimetres
barcode	No	String	This property will eventually be used for barcode scanning capabilities in the future.
defaultWeight	No	Number	The default value of the weight. The weight field will be preselected with this value when this parcel is selected.
minWeight	No	Number	The minimum weight of this parcel. If defined, the user has to input a weight value higher than this number.
maxWeight	No	Number	The maximum weight of this parcel. If defined, the user has to input a weight value lower than this number.

Schema

Here is the JSON Schema that describes the structure for this setting. This can be used with the Setting Form Component to create a form for editing this setting.(Note: hideBelow should be an enum, but there is a known issue where an empty value can't be selected or specified as the default value for an enum.)

1{
2    "$schema": "http://json-schema.org/draft-07/schema#",
3    "title": "Pack Screen Configuration",
4    "type": "object",
5    "properties": {
6        "allowMultipleParcelsPerItem": {
7            "title": "Allow Multiple Parcels Per Item",
8            "type": "boolean"
9        },
10        "parcelTypes": {
11            "title": "Parcel Configuration",
12            "type": "object",
13            "properties": {
14                "defaultParcel": {
15                    "title": "Default Parcel Type",
16                    "type": "string"
17                },
18                "parcels": {
19                    "title": "Parcel Types",
20                    "type": "array",
21                    "items": {
22                        "type": "object",
23                        "properties": {
24                            "name": {
25                                "title": "Name",
26                                "type": "string"
27                            },
28                            "length": {
29                                "title": "Length (cm)",
30                                "type": "string"
31                            },
32                            "width": {
33                                "title": "Width (cm)",
34                                "type": "string"
35                            },
36                            "height": {
37                                "title": "Height (cm)",
38                                "type": "string"
39                            },
40                            "barcode": {
41                                "title": "Barcode",
42                                "type": "string"
43                            },
44                            "defaultWeight": {
45                                "title": "Default Weight",
46                                "type": "string"
47                            },
48                            "minWeight": {
49                                "title": "Minimum Weight",
50                                "type": "string"
51                            },
52                            "maxWeight": {
53                                "title": "Maximum Weight",
54                                "type": "string"
55                            }
56                        },
57                        "required": [
58                            "name",
59                            "length",
60                            "width",
61                            "height"
62                        ]
63                    }
64                }
65            },
66            "required": [
67                "parcels"
68            ]
69        },
70        "query": {
71            "title": "GraphQL Query",
72            "type": "string",
73            "default": "query ($waveId: ID!) { waveById(id: $waveId) { id ref status location { id ref attributes { name type value } } fulfilments(first: 100) { edges { node { id ref status toAddress { id ref } items(first: 100) { edges { node { ref filledQuantity rejectedQuantity requestedQuantity } } } order { id ref type status fulfilmentChoice { deliveryType } customer { firstName lastName primaryEmail primaryPhone } } } } } } }"
74        },
75        "attributes": {
76            "title": "Table Columns",
77            "type": "array",
78            "default": [
79                {
80                    "value": "{{order.ref}}",
81                    "label": "fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.ref.heading"
82                },
83                {
84                    "value": "{{order.customer.firstName}} {{order.customer.lastName}}",
85                    "label": "fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.customer.name.heading"
86                },
87                {
88                    "value": "{{orderType}}",
89                    "label": "fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.type.heading"
90                },
91                {
92                    "value": "{{status}}",
93                    "label": "fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.fulfilment.status.heading"
94                }
95            ],
96            "items": {
97                "title": "Column Items",
98                "type": "object",
99                "properties": {
100                    "value": {
101                        "title": "Value",
102                        "type": "string"
103                    },
104                    "label": {
105                        "title": "Label",
106                        "type": "string"
107                    },
108                    "hideBelow": {
109                        "title": "Hide Below",
110                        "type": "string",
111                        "default": ""
112                    }
113                },
114                "required": [
115                    "value",
116                    "label"
117                ]
118            }
119        }
120    },
121    "required": [
122        "parcelTypes"
123    ]
124}

Sample

1{
2    "query": "query ($waveId: ID!) {  waveById(id: $waveId) {    id    ref    status    location {      id      ref      attributes {        name        type        value      }    }    fulfilments(first: 100) {      edges {        node {          id          ref      type    status          toAddress {            id            ref          }          items(first: 100) {            edges {              node {                ref                filledQuantity                rejectedQuantity                requestedQuantity   attributes {        name        type        value      }           }            }          }          order {     retailer { ref id }       id            ref            type            status            fulfilmentChoice {              deliveryType            }            customer {              firstName              lastName              primaryEmail              primaryPhone            }          }        }      }    }  }}",
3      "attributes": [
4    {
5      "value": "{{order.ref}}",
6      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.ref.heading", "Order reference"],
7      "hideBelow": "sm"
8    },
9    {
10      "value": "{{order.customer.firstName}} {{order.customer.lastName}}",
11      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.customer.name.heading", "Customer name"]
12    },
13    {
14      "value": "{{orderType}}",
15      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.order.type.heading", "Order type"]
16    },
17    {
18      "value": "{{status}}",
19      "label": ["fc.sf.ui.wave.pickAndPack.list.pack.multiparcel.column.fulfilment.status.heading", "Fulfilment status"]
20    }
21  ],
22    "allowMultipleParcelsPerItem": true,
23    "parcelTypes": {
24        "defaultParcel": "small",
25        "parcels": [
26            {
27                "name": "small",
28                "length": "18",
29                "width": "18",
30                "height": "18",
31                "barcode": "1234",
32                "defaultWeight": "3",
33                "minWeight": "0.1",
34                "maxWeight": "4"
35            },
36            {
37                "name": "medium",
38                "length": "30",
39                "width": "30",
40                "height": "30",
41                "barcode": "4567",
42                "defaultWeight": "8",
43                "minWeight": "5",
44                "maxWeight": "9.9"
45            },
46            {
47                "name": "large",
48                "length": "45",
49                "width": "45",
50                "height": "45",
51                "barcode": "7890",
52                "defaultWeight": "19",
53                "minWeight": "10",
54                "maxWeight": "20"
55            },
56            {
57                "name": "extra_large",
58                "length": "90",
59                "width": "90",
60                "height": "90",
61                "barcode": "99999999",
62                "defaultWeight": "30",
63                "minWeight": "10",
64                "maxWeight": "20"
65            }
66        ]
67    }
68}

Configuration example

1POST: {{fluentApiHost}}/graphql
2
3// create a postman environment variable:
4// Variable: json_value
5// initial val + current value:
6{
7  "parcelTypes": {
8    "parcels": [
9      {
10        "name": "small",
11        "length": "18",
12        "width": "18",
13        "height": "18",
14        "barcode": "1234",
15        "defaultWeight": "3",
16        "minWeight": "0.1",
17        "maxWeight": "4"
18      },
19      {
20        "name": "medium",
21        "length": "30",
22        "width": "30",
23        "height": "30",
24        "barcode": "4567",
25        "defaultWeight": "8",
26        "minWeight": "5",
27        "maxWeight": "9.9"
28      },
29      {
30        "name": "large",
31        "length": "45",
32        "width": "45",
33        "height": "45",
34        "barcode": "7890",
35        "defaultWeight": "19",
36        "minWeight": "10",
37        "maxWeight": "20"
38      }
39    ]
40  }
41}
42
43
44GraphQL variables:
45{
46	"retailerId": {{retailer_id}},
47    "lobValue" : {{json_value}}
48}
49
50
51GraphQL Query:
52mutation CreateSetting($retailerId:Int! , $lobValue:Json)  {
53createSetting(input: {
54		name: "fc.mystique.fields.basicpack",
55		valueType: "JSON",
56		lobValue:$lobValue ,
57		context: "ACCOUNT",
58		contextId:$retailerId}) {
59    id
60    name
61  }
62}

Update example

1POST: {{fluentApiHost}}/graphql
2
3// create a postman environment variable:
4// Variable: json_value
5// initial val + current value:
6{
7  "parcelTypes": {
8    "parcels": [
9      {
10        "name": "small",
11        "length": "18",
12        "width": "18",
13        "height": "18",
14        "barcode": "1234",
15        "defaultWeight": "3",
16        "minWeight": "0.1",
17        "maxWeight": "4"
18      },
19      {
20        "name": "medium",
21        "length": "30",
22        "width": "30",
23        "height": "30",
24        "barcode": "4567",
25        "defaultWeight": "8",
26        "minWeight": "5",
27        "maxWeight": "9.9"
28      },
29      {
30        "name": "large",
31        "length": "45",
32        "width": "45",
33        "height": "45",
34        "barcode": "7890",
35        "defaultWeight": "19",
36        "minWeight": "10",
37        "maxWeight": "20"
38      }
39    ]
40  }
41}
42
43
44GraphQL variables:
45{
46	"retailerId": {{retailer_id}},
47    "lobValue" : {{json_value}}
48}
49
50
51GraphQL Query:
52mutation updateSetting($retailerId:Int! , $lobValue:Json) {
53updateSetting(input: {
54        id: 5001471,
55		name: "fc.mystique.fields.basicpack",
56		valueType: "JSON",
57        lobValue: $lobValue,
58		context: "ACCOUNT",
59		contextId: $retailerId}) {
60    id
61    name
62  }
63}
64

fc.mystique.fields.basicpack

Overview

Values

Detailed technical description

Header Properties

Query Property

Attribute Property

Parcel Types Property

Parcels Properties

Schema

Sample

Configuration example

Update example

Related content

Multi-Parcel Component

Getting started with OMX UX Framework

Knowledge Tracks Related To This Topic

Building Blocks

By Type

Helpful Resources

Quick Links
