Key Points

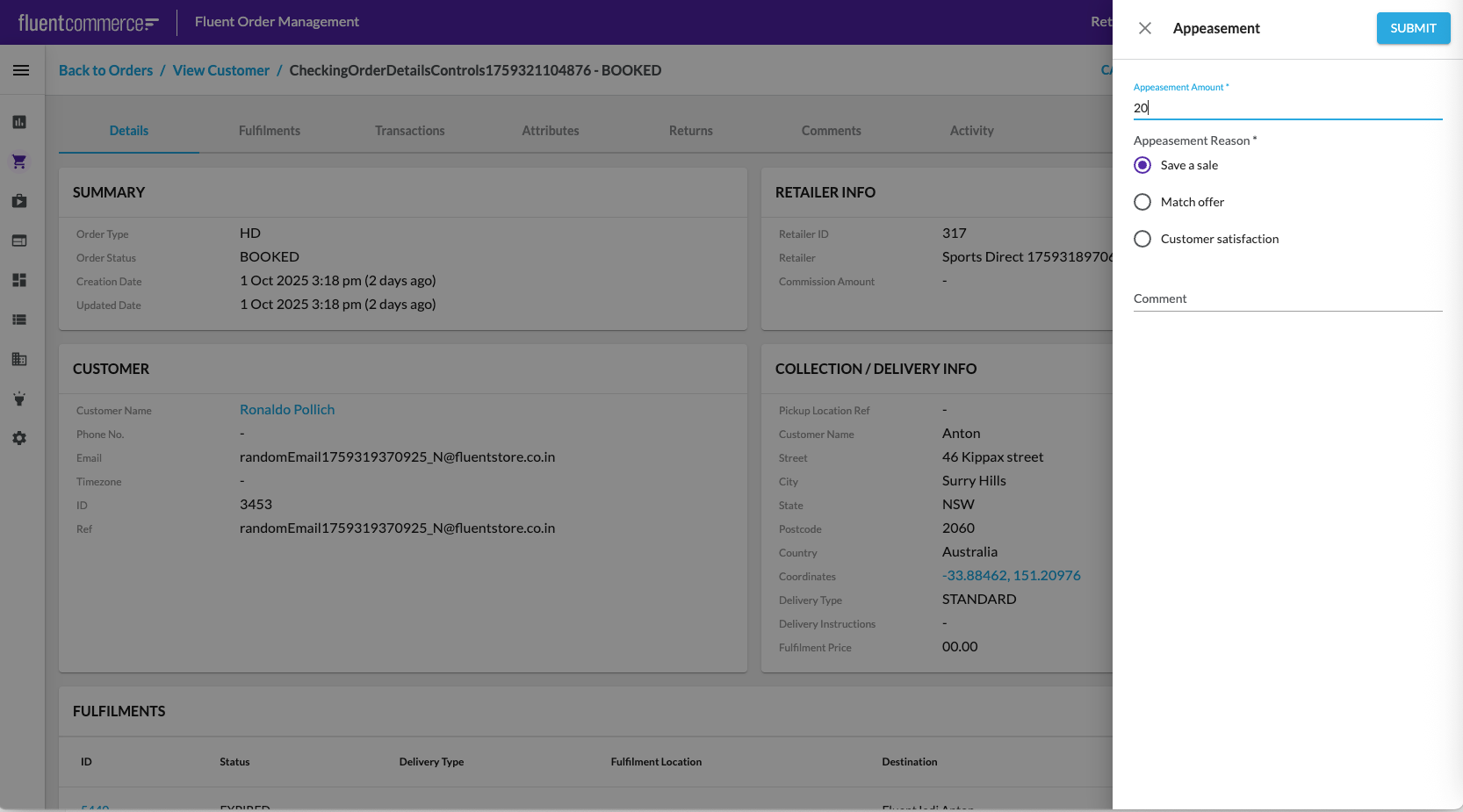

User action capability is used to create a Refund against an Order. Order workflow should be extended to have a rule to capture appeasement requests and then process them by looking up the billing account of that customer and creating a credit memo of that refund amount.
It is possible to configure Appeasement functionality via UI and via Postman.

Prerequisites

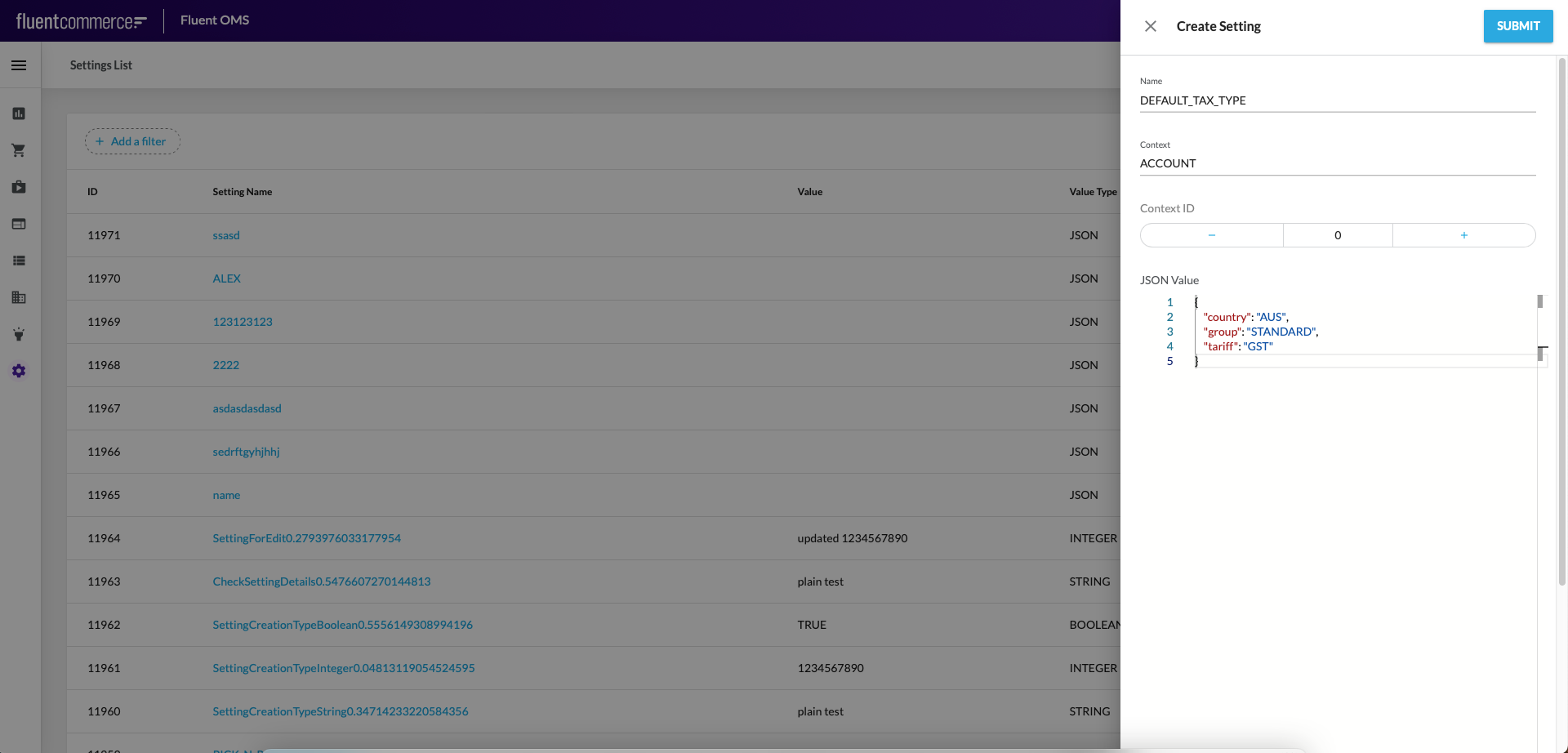

Settings Creation and Editing Mutations

Steps

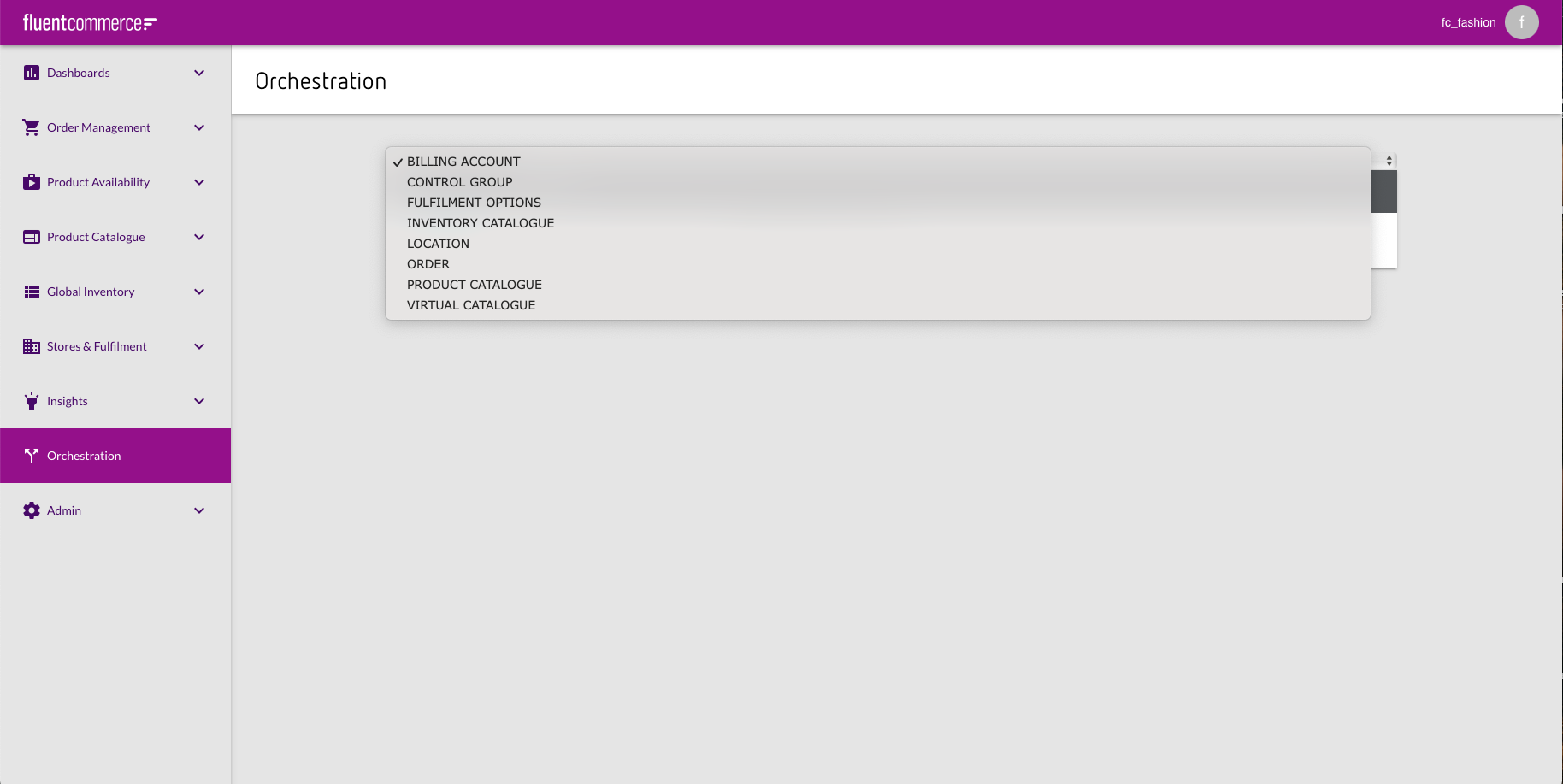

Billing Account Flow availability in Orchestration

In case there is no Billing Account Flow in the Orchestration, it is necessary to add the workflow via PUT request in Postman. JSON containing the workflow should be put to the body of the request.PUT request:`https://<ACCOUNT_ID>.<environment>.api.fluentretail.com/api/v4.1/workflow`

Variable	Description
ACCOUNT_ID	The name of the Fluent account
environment	The Fluent deployment Environment type for the particular Fluent Account (SANDBOX, PRODUCTION, TEST, STAGING).

The Fluent deployment Environment type for the particular Fluent Account (SANDBOX, PRODUCTION, TEST, STAGING).Body:

1``` js
2{
3    "retailerId": "1",
4    "version": "1",
5    "entityType": "BILLING_ACCOUNT",
6    "entitySubtype": "CUSTOMER",
7    "description": "Default Billing Account workflow",
8    "versionComment": null,
9    "createdBy": "fc_fashion",
10    "createdOn": "2021-12-07T12:03:56.400+0000",
11    "id": null,
12    "name": "BILLING_ACCOUNT::CUSTOMER",
13    "rulesets": [
14        {
15            "name": "ProcessCreditForAppeasement",
16            "type": "BILLING_ACCOUNT",
17            "subtype": "CUSTOMER",
18            "eventType": "NORMAL",
19            "rules": [
20                {
21                    "name": "FLUENTRETAIL.base.CreateCreditMemoFromAppeasement",
22                    "props": {
23                        "creditMemoType": "CREDIT",
24                        "creditMemoItemType": "CREDIT_ADJUSMENT"
25                    }
26                }
27            ],
28            "triggers": [
29                {
30                    "status": "ACTIVE"
31                }
32            ],
33            "userActions": []
34        },
35        {
36            "name": "CREATE",
37            "description": "CREATE BILLING_ACCOUNT",
38            "type": "BILLING_ACCOUNT",
39            "subtype": "CUSTOMER",
40            "eventType": "NORMAL",
41            "rules": [
42                {
43                    "name": "FLUENTRETAIL.base.ChangeStateGQL",
44                    "props": {
45                        "status": "ACTIVE"
46                    }
47                }
48            ],
49            "triggers": [
50                {
51                    "status": "CREATED"
52                }
53            ],
54            "userActions": []
55        },
56        {
57            "name": "ProcessCredit",
58            "description": "ProcessCredit",
59            "type": "BILLING_ACCOUNT",
60            "subtype": "CUSTOMER",
61            "eventType": "NORMAL",
62            "rules": [
63                {
64                    "name": "FLUENTRETAIL.base.CreateCreditMemoFromReturnOrder",
65                    "props": {
66                        "creditMemoType": "TYPE_MEMO",
67                        "creditMemoItemType": "TYPE_MEMO_ITEM"
68                    }
69                }
70            ],
71            "triggers": [
72                {
73                    "status": "ACTIVE"
74                }
75            ],
76            "userActions": []
77        },
78        {
79            "name": "CREATE",
80            "description": "CREATE CREDIT MEMO",
81            "type": "CREDIT_MEMO",
82            "eventType": "NORMAL",
83            "rules": [
84                {
85                    "name": "FLUENTRETAIL.base.ChangeStateGQL",
86                    "props": {
87                        "status": "PENDING_REFUND"
88                    }
89                }
90            ],
91            "triggers": [
92                {
93                    "status": "CREATED"
94                }
95            ],
96            "userActions": []
97        },
98        {
99            "name": "PaymentFailed",
100            "description": "PaymentFailed",
101            "type": "CREDIT_MEMO",
102            "eventType": "NORMAL",
103            "rules": [
104                {
105                    "name": "FLUENTRETAIL.base.ChangeStateGQL",
106                    "props": {
107                        "status": "REFUND_FAILED"
108                    }
109                },
110                {
111                    "name": "FLUENTRETAIL.base.SendEventForCreditMemoToReturn",
112                    "props": {
113                        "eventName": "RefundRejected"
114                    }
115                }
116            ],
117            "triggers": [
118                {
119                    "status": "PENDING_REFUND"
120                },
121                {
122                    "status": "CREATED"
123                }
124            ],
125            "userActions": []
126        },
127        {
128            "name": "PaymentComplete",
129            "description": "PaymentComplete",
130            "type": "CREDIT_MEMO",
131            "eventType": "NORMAL",
132            "rules": [
133                {
134                    "name": "FLUENTRETAIL.base.ChangeStateGQL",
135                    "props": {
136                        "status": "REFUND_COMPLETE"
137                    }
138                },
139                {
140                    "name": "FLUENTRETAIL.base.SendEventForCreditMemoToReturn",
141                    "props": {
142                        "eventName": "RefundComplete"
143                    }
144                }
145            ],
146            "triggers": [
147                {
148                    "status": "PENDING_REFUND"
149                },
150                {
151                    "status": "CREATED"
152                }
153            ],
154            "userActions": []
155        }
156
157    ],
158    "statuses": [
159        {
160            "name": "CREATED",
161            "entityType": "BILLING_ACCOUNT",
162            "category": "BOOKING"
163        },
164        {
165            "name": "ACTIVE",
166            "entityType": "BILLING_ACCOUNT",
167            "category": "BOOKING"
168        },
169        {
170            "name": "REFUND_COMPLETE",
171            "entityType": "CREDIT_MEMO",
172            "category": "BOOKING"
173        },
174        {
175            "name": "REFUND_FAILED",
176            "entityType": "CREDIT_MEMO",
177            "category": "BOOKING"
178        },
179        {
180            "name": "CREATED",
181            "entityType": "CREDIT_MEMO",
182            "category": ""
183        },
184        {
185            "name": "PENDING_REFUND",
186            "entityType": "CREDIT_MEMO",
187            "category": "BOOKING"
188        }
189    ]
190}
191```

retailer ID in the billing account

Variable `"retailerId"` must be filled with the identifier of the retailer for which the Billing Account workflow is being added.

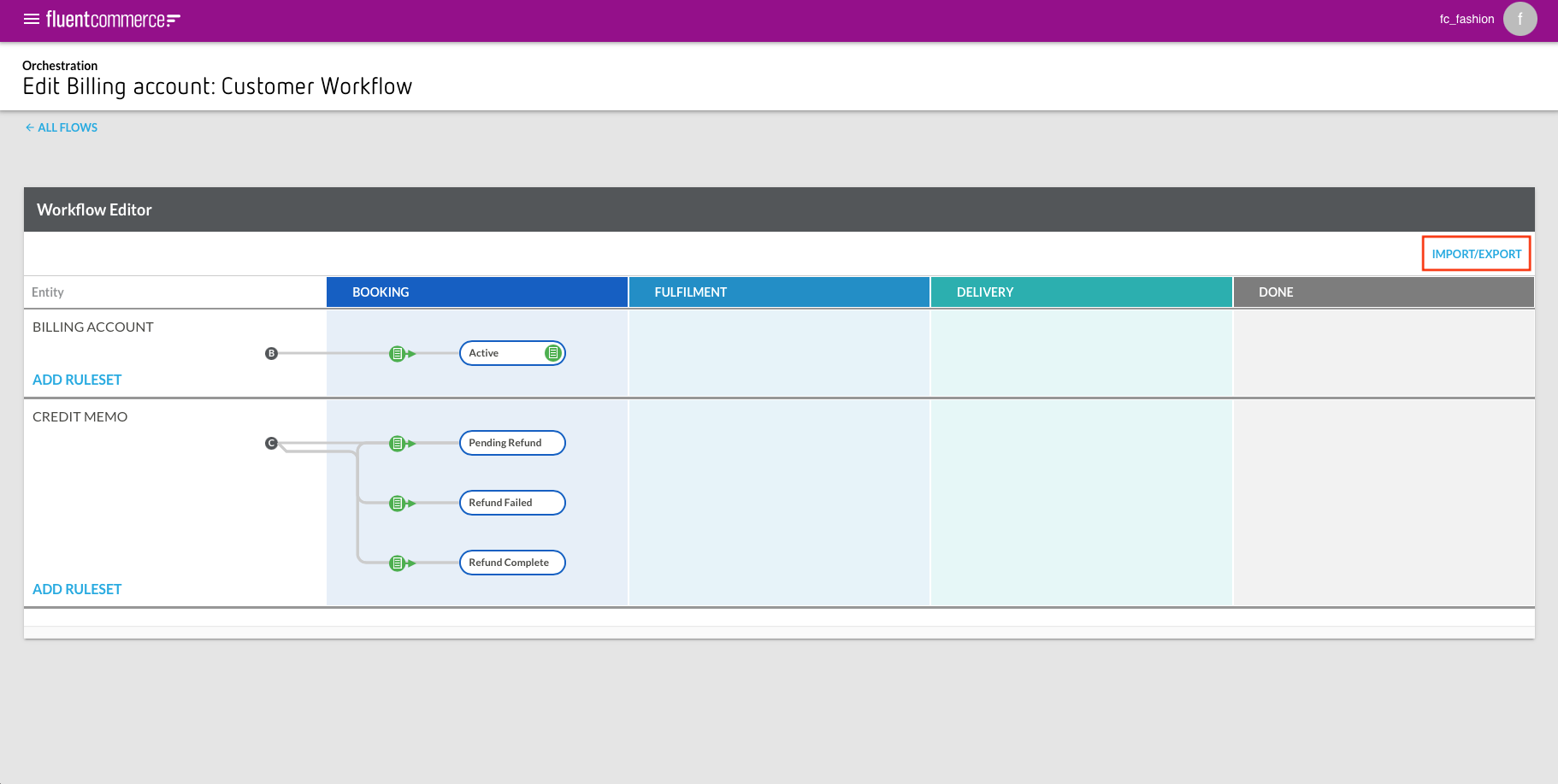

In case Billing Account Flow exists in the Orchestration it is necessary to update it. To update the existing workflow it is necessary go to Workflow Editor and click on Import/Export button. No alt provided

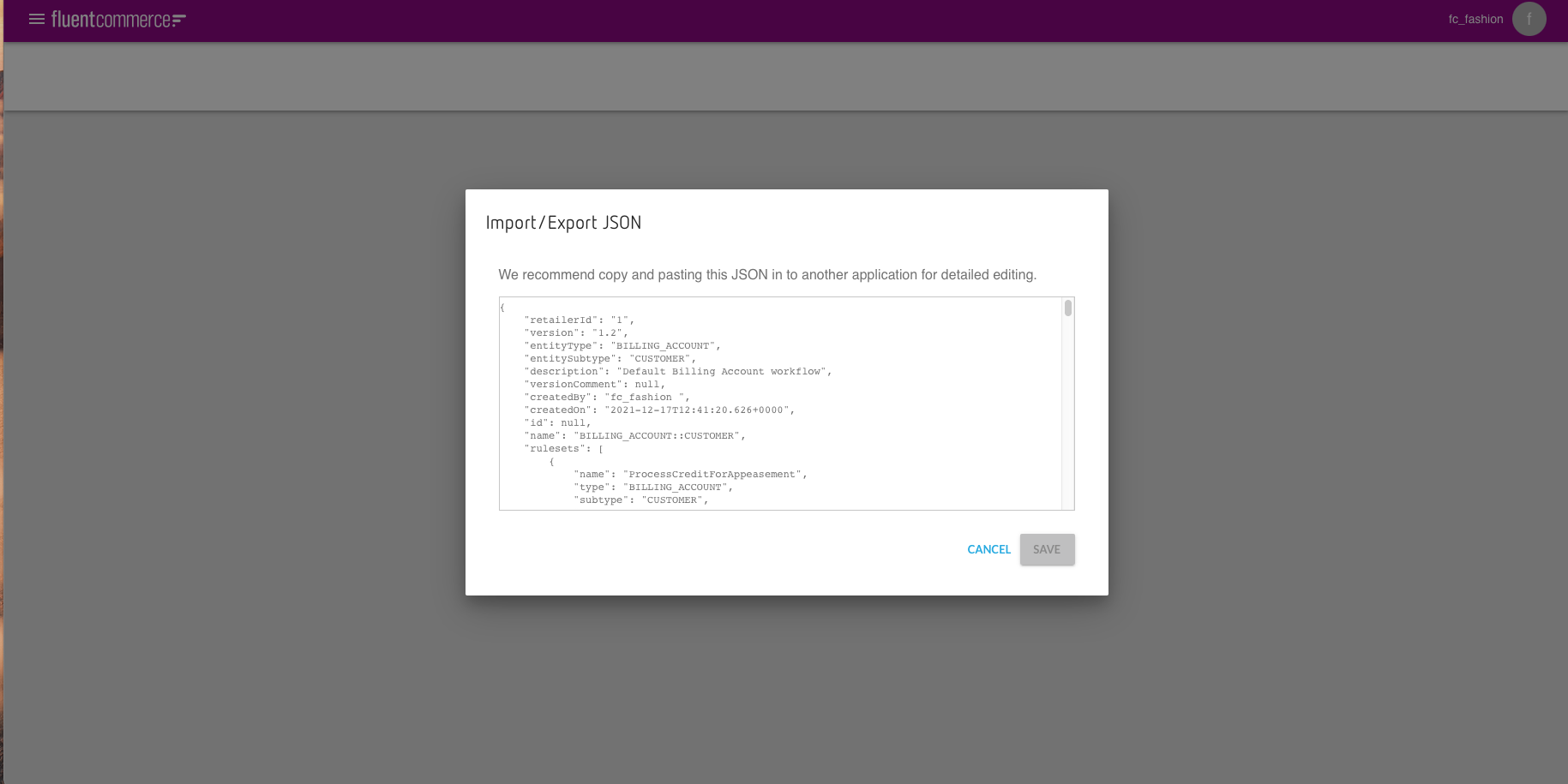

Clicking on the button opens Import / Export JSON pop-up. No alt provided

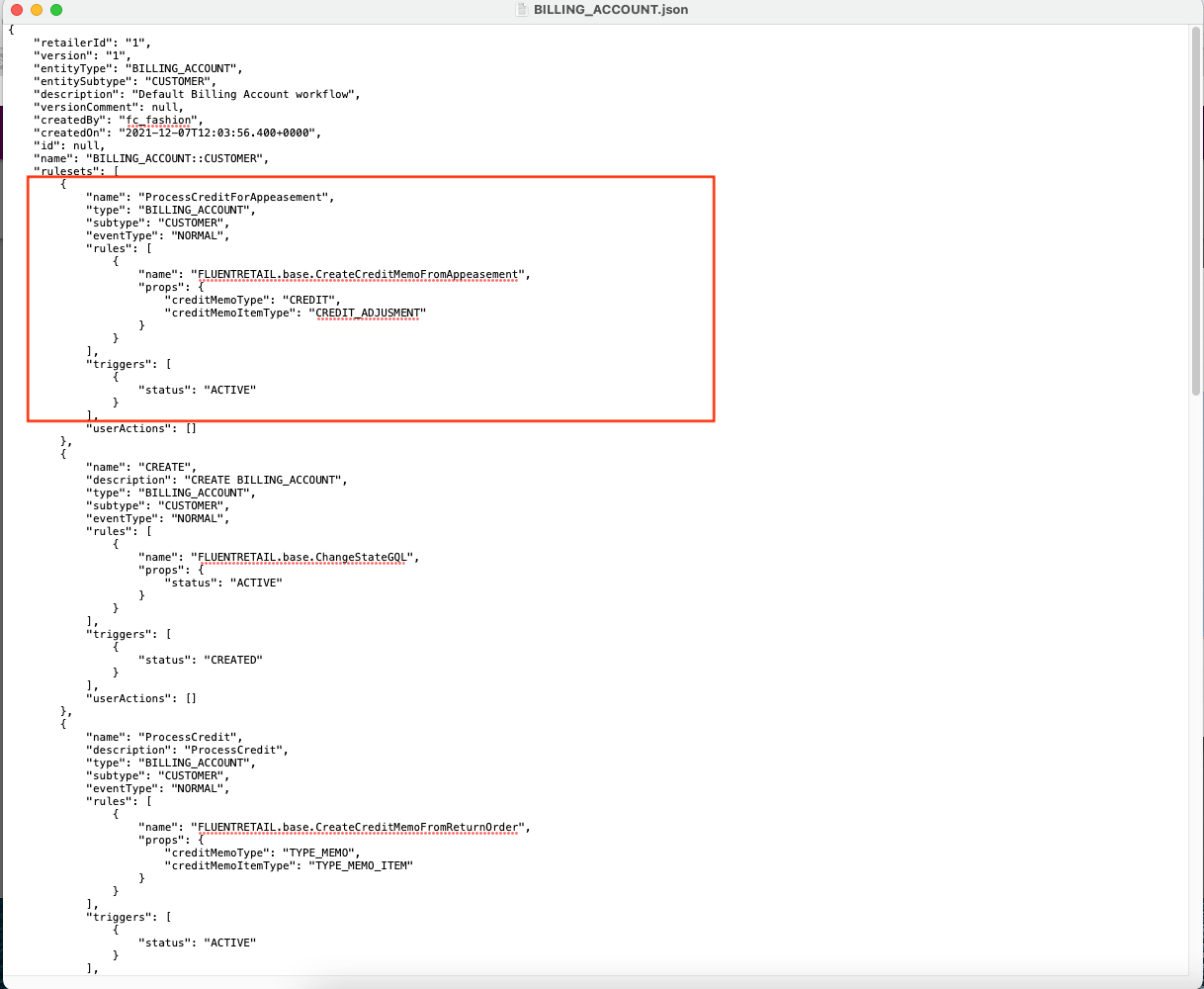

Add ruleset `"ProcessCreditForAppeasement"` to the ruleset block. No alt provided

"ProcessCreditForAppeasement" ruleset

1``` json
2{
3    "name": "ProcessCreditForAppeasement",
4    "type": "BILLING_ACCOUNT",
5    "subtype": "CUSTOMER",
6    "eventType": "NORMAL",
7    "rules": [
8        {
9            "name": "FLUENTRETAIL.base.CreateCreditMemoFromAppeasement",
10            "props": {
11                "creditMemoType": "CREDIT",
12                "creditMemoItemType": "CREDIT_ADJUSMENT"
13            }
14        }
15    ],
16    "triggers": [
17        {
18            "status": "ACTIVE"
19        }
20    ],
21    "userActions": []
22},
23```

Order workflows

Home Delivery (HD) Order workflow ¶

Add the following example json fragment to the ruleset:

1``` json
2{
3   "name":"NewBillingAccountAppeasement",
4   "description":"Creates new BillingAccount for Order",
5   "type":"ORDER",
6   "subtype":"HD",
7   "eventType":"NORMAL",
8   "rules":[
9      {
10         "name":"FLUENTRETAIL.base.CreateBillingAccount",
11         "props":{
12            "eventName":"ProcessBillingAccountAppeasement",
13            "billingAccountType":"CUSTOMER"
14         }
15      }
16   ],
17   "triggers":[
18
19   ],
20   "userActions":[
21
22   ]
23},
24{
25   "name":"ProcessBillingAccountAppeasement",
26   "description":"Triggers event to create Billing Account",
27   "type":"ORDER",
28   "eventType":"NORMAL",
29   "rules":[
30      {
31         "name":"FLUENTRETAIL.base.SendEventForAppeasementToBillingAccount",
32         "props":{
33            "eventName":"ProcessCreditForAppeasement"
34         }
35      }
36   ],
37   "triggers":[
38      {
39         "status":"PENDING_PAYMENT"
40      },
41      {
42         "status":"BOOKED"
43      },
44      {
45         "status":"CREATED"
46      }
47   ],
48   "userActions":[
49
50   ]
51},
52{
53   "name":"OrderAppeasement",
54   "description":"Create an appeasement from admin console",
55   "type":"ORDER",
56   "subtype":"HD",
57   "eventType":"NORMAL",
58   "rules":[
59      {
60         "name":"FLUENTRETAIL.base.ValidateAppeasementAmount",
61         "props":null
62      },
63      {
64         "name":"FLUENTRETAIL.base.VerifyBillingAccount",
65         "props":{
66            "BillingAccountExistsEventName":"ProcessBillingAccountAppeasement",
67            "NoBillingAccountExistsEventName":"NewBillingAccountAppeasement"
68         }
69      }
70   ],
71   "triggers":[
72
73   ],
74   "userActions":[
75      {
76         "context":[
77            {
78               "label":"APPEASEMENT",
79               "type":"PRIMARY",
80               "modules":[
81                  "adminconsole"
82               ],
83               "confirm":false
84            }
85         ],
86         "attributes":[
87            {
88               "name":"appeasementAmount",
89               "label":"Appeasement Amount",
90               "type":"STRING",
91               "source":"",
92               "defaultValue":"",
93               "mandatory":true
94            },
95            {
96               "name":"appeasementReason",
97               "label":"Appeasement Reason",
98               "type":"STRING",
99               "source":"settings.APPEASEMENT_REASON",
100               "defaultValue":"",
101               "mandatory":true
102            },
103            {
104               "name":"comment",
105               "label":"Comment",
106               "type":"STRING",
107               "source":"",
108               "defaultValue":"",
109               "mandatory":false
110            }
111         ]
112      }
113   ]
114},
115```

Click and Collect (CC) Order workflow ¶

Add the following json fragment to the ruleset:

1``` json
2{
3   "name":"NewBillingAccountAppeasement",
4   "description":"Creates new BillingAccount for Order",
5   "type":"ORDER",
6   "subtype":"CC",
7   "eventType":"NORMAL",
8   "rules":[
9      {
10         "name":"FLUENTRETAIL.base.CreateBillingAccount",
11         "props":{
12            "eventName":"ProcessBillingAccountAppeasement",
13            "billingAccountType":"CUSTOMER"
14         }
15      }
16   ],
17   "triggers":[
18
19   ],
20   "userActions":[
21
22   ]
23},
24{
25   "name":"ProcessBillingAccountAppeasement",
26   "description":"Triggers event to create Billing Account",
27   "type":"ORDER",
28   "eventType":"NORMAL",
29   "rules":[
30      {
31         "name":"FLUENTRETAIL.base.SendEventForAppeasementToBillingAccount",
32         "props":{
33            "eventName":"ProcessCreditForAppeasement"
34         }
35      }
36   ],
37   "triggers":[
38      {
39         "status":"PENDING_PAYMENT"
40      },
41      {
42         "status":"BOOKED"
43      },
44      {
45         "status":"CREATED"
46      }
47   ],
48   "userActions":[
49
50   ]
51},
52{
53   "name":"OrderAppeasement",
54   "description":"Create an appeasement from admin console",
55   "type":"ORDER",
56   "subtype":"CC",
57   "eventType":"NORMAL",
58   "rules":[
59      {
60         "name":"FLUENTRETAIL.base.ValidateAppeasementAmount",
61         "props":null
62      },
63      {
64         "name":"FLUENTRETAIL.base.VerifyBillingAccount",
65         "props":{
66            "BillingAccountExistsEventName":"ProcessBillingAccountAppeasement",
67            "NoBillingAccountExistsEventName":"NewBillingAccountAppeasement"
68         }
69      }
70   ],
71   "triggers":[
72
73   ],
74   "userActions":[
75      {
76         "context":[
77            {
78               "label":"APPEASEMENT",
79               "type":"PRIMARY",
80               "modules":[
81                  "adminconsole"
82               ],
83               "confirm":false
84            }
85         ],
86         "attributes":[
87            {
88               "name":"appeasementAmount",
89               "label":"Appeasement Amount",
90               "type":"STRING",
91               "source":"",
92               "defaultValue":"",
93               "mandatory":true
94            },
95            {
96               "name":"appeasementReason",
97               "label":"Appeasement Reason",
98               "type":"STRING",
99               "source":"settings.APPEASEMENT_REASON",
100               "defaultValue":"",
101               "mandatory":true
102            },
103            {
104               "name":"comment",
105               "label":"Comment",
106               "type":"STRING",
107               "source":"",
108               "defaultValue":"",
109               "mandatory":false
110            }
111         ]
112      }
113   ]
114},
115```

Required settings

Check if the below setting exists, by navigating to Admin > Settings and filtering the list of settings by name. If it does not exist, you need to create the setting. Refer to the Setting Creation Mutation user guide on how to create a setting.

`DEFAULT_TAX_TYPE`
`APPEASEMENT_REASON`
`GST`

Fill in the field values as per the screenshot for each of the settings.

DEFAULT_TAX_TYPE Setting

1{
2    "country": "AUS",
3    "group": "STANDARD",
4    "tariff": "GST"
5}

APPEASEMENT_REASON Setting

1{
2    "active": [
3        {
4            "label": "Save a sale",
5            "value": "Save a sale"
6        },
7        {
8            "label": "Match offer",
9            "value": "Match offer"
10        },
11        {
12            "label": "Customer Satisfaction",
13            "value": "Customer Satisfaction"
14        }
15    ]
16}

GST Setting

Context Id = Retailer Id

Configuration via Postman

Setup Appeasement configuration via Postman

You can just use this guide on any account . The provided Postman collection below is pre-configured to be used on a pre-provisioned training sandbox account so it is best is you can:

Use your "Using Fluent" training account OR a training sandbox that has been setup with the Jetpack/Launchpad
Import the following Postman collection to your Using Fluent training space in Postman:

1{
2	"info": {
3		"_postman_id": "7d0bfb3c-b131-4cec-b7b2-f9167c267049",
4		"name": "Appeasement",
5		"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json"
6	},
7	"item": [
8		{
9			"name": "Authenticate FC_FASHION Retailer",
10			"item": [
11				{
12					"name": "Fluent Auth - Retailer FC_FASHION",
13					"event": [
14						{
15							"listen": "test",
16							"script": {
17								"exec": [
18									"const jsonData = pm.response.json();",
19									"var currentRetailerRef = pm.environment.get(\"fluent.retailer.current.ref\");",
20									"",
21									"pm.environment.set(\"fluent.retailer.current.token\", jsonData.access_token);",
22									"pm.environment.set(\"fluent.retailer.\" + currentRetailerRef + \".token\", jsonData.access_token);",
23									"",
24									"var expiryTime = new Date(Date.now() + (jsonData.expires_in * 1000));",
25									"console.log(\"Token will expire at: \" + expiryTime);",
26									"pm.environment.set(\"fluent.retailer.current.token.expiry_time\", expiryTime);",
27									"pm.environment.set(\"fluent.retailer.\" + currentRetailerRef + \".token.expiry_time\", expiryTime);",
28									"pm.environment.set(\"fluent.retailer.current.customer.id\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".customer.id\"));",
29									"",
30									"console.log(\"Setting current retailer token: \" + pm.environment.get(\"fluent.retailer.current.token\") + \", RetailerRef: \" + pm.environment.get(\"fluent.retailer.current.ref\") + \", RetailerId: \" + pm.environment.get(\"fluent.retailer.current.id\"));",
31									""
32								],
33								"type": "text/javascript"
34							}
35						},
36						{
37							"listen": "prerequest",
38							"script": {
39								"exec": [
40									"",
41									"let use_unique_suffix = (pm.environment.has(\"fluent.data.use_unique_suffix\") && pm.environment.get(\"fluent.data.use_unique_suffix\") == true) ? true : false;",
42									"",
43									"let currentRetailerRef = \"fc_fashion\";",
44									"if (use_unique_suffix) {",
45									"    currentRetailerRef = currentRetailerRef + \"_\" + pm.environment.get(\"fluent.data.unique_suffix\");",
46									"}",
47									"",
48									"pm.variables.set(\"fc_fashion_username\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.username\"));",
49									"pm.variables.set(\"fc_fashion_password\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.password\"));",
50									"",
51									"pm.environment.set(\"fluent.retailer.current.id\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".id\"));",
52									"pm.environment.set(\"fluent.retailer.current.ref\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".ref\"));",
53									"pm.environment.set(\"fluent.retailer.current.user.username\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.username\"));",
54									"pm.environment.set(\"fluent.retailer.current.user.password\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.password\"));",
55									"",
56									"",
57									"",
58									"console.log(\"Setting Current Retailer: \" + pm.environment.get(\"fluent.retailer.current.ref\") + \", Id: \" + pm.environment.get(\"fluent.retailer.current.id\"));",
59									""
60								],
61								"type": "text/javascript"
62							}
63						}
64					],
65					"request": {
66						"auth": {
67							"type": "noauth"
68						},
69						"method": "POST",
70						"header": [],
71						"url": {
72							"raw": "{{fluent.account.host}}/oauth/token?username={{fc_fashion_username}}&password={{fc_fashion_password}}&client_id={{fluent.account.client_id}}&client_secret={{fluent.account.client_secret}}&scope=api&grant_type=password",
73							"host": [
74								"{{fluent.account.host}}"
75							],
76							"path": [
77								"oauth",
78								"token"
79							],
80							"query": [
81								{
82									"key": "username",
83									"value": "{{fc_fashion_username}}",
84									"description": "FC Fashion Admin User Username"
85								},
86								{
87									"key": "password",
88									"value": "{{fc_fashion_password}}",
89									"description": "FC Fashion Admin User Password"
90								},
91								{
92									"key": "client_id",
93									"value": "{{fluent.account.client_id}}",
94									"description": "Fluent Account Id / Client Id"
95								},
96								{
97									"key": "client_secret",
98									"value": "{{fluent.account.client_secret}}",
99									"description": "Fluent Account Client Secret"
100								},
101								{
102									"key": "scope",
103									"value": "api"
104								},
105								{
106									"key": "grant_type",
107									"value": "password"
108								}
109							]
110						},
111						"description": "## Authenticate the FC FASHION Retailer Admin User\n\nUse this request to Authenticate your FC FASHION Retailer Admin User.\n\nThe response `access_token` will be saved into the `fluent.retailer.current.token` and the `fluent.retailer.<retailer_ref>.token` environment variable for use in future requests.\n\nFor more information: [Fluent API Authentication](https://lingo.fluentcommerce.com/DEVELOPERS/authentication/)"
112					},
113					"response": [
114						{
115							"name": "Fluent Auth - Account: SUCCESS",
116							"originalRequest": {
117								"method": "POST",
118								"header": [],
119								"url": {
120									"raw": "{{fluent.account.host}}/oauth/token?username={{fluent.account.username}}&password={{fluent.account.password}}&client_id={{fluent.account.client_id}}&client_secret={{fluent.account.client_secret}}&scope=api&grant_type=password",
121									"host": [
122										"{{fluent.account.host}}"
123									],
124									"path": [
125										"oauth",
126										"token"
127									],
128									"query": [
129										{
130											"key": "username",
131											"value": "{{fluent.account.username}}",
132											"description": "Fluent Account Admin User Username"
133										},
134										{
135											"key": "password",
136											"value": "{{fluent.account.password}}",
137											"description": "Fluent Account Admin User Password"
138										},
139										{
140											"key": "client_id",
141											"value": "{{fluent.account.client_id}}",
142											"description": "Fluent Account Id / Client Id"
143										},
144										{
145											"key": "client_secret",
146											"value": "{{fluent.account.client_secret}}",
147											"description": "Fluent Account Client Secret"
148										},
149										{
150											"key": "scope",
151											"value": "api"
152										},
153										{
154											"key": "grant_type",
155											"value": "password"
156										}
157									]
158								}
159							},
160							"status": "OK",
161							"code": 200,
162							"_postman_previewlanguage": "json",
163							"header": [
164								{
165									"key": "Date",
166									"value": "Tue, 29 Oct 2019 00:45:57 GMT"
167								},
168								{
169									"key": "Content-Type",
170									"value": "application/json;charset=UTF-8"
171								},
172								{
173									"key": "Transfer-Encoding",
174									"value": "chunked"
175								},
176								{
177									"key": "Connection",
178									"value": "keep-alive"
179								},
180								{
181									"key": "Server",
182									"value": "nginx/1.10.3 (Ubuntu)"
183								},
184								{
185									"key": "Access-Control-Allow-Origin",
186									"value": "*"
187								},
188								{
189									"key": "Access-Control-Allow-Methods",
190									"value": "POST, PUT, GET, OPTIONS, DELETE"
191								},
192								{
193									"key": "Access-Control-Max-Age",
194									"value": "3600"
195								},
196								{
197									"key": "Access-Control-Allow-Headers",
198									"value": "Authorization, Content-Type, fluent.account"
199								},
200								{
201									"key": "Access-Control-Expose-Headers",
202									"value": "flex.type, flex.version"
203								},
204								{
205									"key": "Access-Control-Allow-Credentials",
206									"value": "true"
207								},
208								{
209									"key": "X-Content-Type-Options",
210									"value": "nosniff"
211								},
212								{
213									"key": "X-XSS-Protection",
214									"value": "1; mode=block"
215								},
216								{
217									"key": "Cache-Control",
218									"value": "no-cache, no-store, max-age=0, must-revalidate"
219								},
220								{
221									"key": "Cache-Control",
222									"value": "no-store"
223								},
224								{
225									"key": "Pragma",
226									"value": "no-cache"
227								},
228								{
229									"key": "Pragma",
230									"value": "no-cache"
231								},
232								{
233									"key": "Expires",
234									"value": "0"
235								},
236								{
237									"key": "X-Frame-Options",
238									"value": "DENY"
239								}
240							],
241							"cookie": [],
242							"body": "{\n    \"access_token\": \"4b5eb7aa-5714-4c73-8813-4e4aae0a3e0f\",\n    \"token_type\": \"bearer\",\n    \"expires_in\": 2579,\n    \"scope\": \"api\",\n    \"Roles\": [],\n    \"FirstName\": \"Bob\",\n    \"LastName\": \"Smith\"\n}"
243						}
244					]
245				}
246			],
247			"description": "This Authentication Request is set to authenticate the FC FASHION Retailer Admin User.\n\nThis request will set the `fluent.retailer.current.token` which is used by the following requests.\n\nThis effectively activates the current Retailer for the given Lab steps to be executed."
248		},
249		{
250			"name": "Get Setting/Workflow",
251			"item": [
252				{
253					"name": "Get the Retailer settings",
254					"event": [
255						{
256							"listen": "test",
257							"script": {
258								"exec": [
259									"tests[\"HTTP response code is 200\"] = responseCode.code === 200;"
260								],
261								"type": "text/javascript"
262							}
263						}
264					],
265					"request": {
266						"auth": {
267							"type": "bearer",
268							"bearer": [
269								{
270									"key": "token",
271									"value": "{{fluent.retailer.current.token}}",
272									"type": "string"
273								}
274							]
275						},
276						"method": "GET",
277						"header": [
278							{
279								"key": "Content-Type",
280								"value": "application/json"
281							}
282						],
283						"url": {
284							"raw": "{{fluentApiHost}}/api/v4.1/settings/retailer/1/DEFAULT_TAX_TYPE",
285							"host": [
286								"{{fluentApiHost}}"
287							],
288							"path": [
289								"api",
290								"v4.1",
291								"settings",
292								"retailer",
293								"1",
294								"DEFAULT_TAX_TYPE"
295							]
296						}
297					},
298					"response": []
299				},
300				{
301					"name": "Get workflow by Retailer Id and Workflow Name",
302					"event": [
303						{
304							"listen": "test",
305							"script": {
306								"exec": [
307									"tests[\"HTTP response code is 200\"] = responseCode.code === 200;"
308								],
309								"type": "text/javascript"
310							}
311						}
312					],
313					"request": {
314						"auth": {
315							"type": "bearer",
316							"bearer": [
317								{
318									"key": "token",
319									"value": "{{fluent.retailer.current.token}}",
320									"type": "string"
321								}
322							]
323						},
324						"method": "GET",
325						"header": [
326							{
327								"key": "Content-Type",
328								"value": "application/json"
329							},
330							{
331								"key": "Authorization",
332								"value": "Bearer {{access_token}}"
333							},
334							{
335								"key": "fluent.account",
336								"value": "{{account.id}}",
337								"type": "text",
338								"disabled": true
339							}
340						],
341						"url": {
342							"raw": "{{fluentApiHost}}/api/v4.1/workflow/1/BILLING_ACCOUNT::CUSTOMER",
343							"host": [
344								"{{fluentApiHost}}"
345							],
346							"path": [
347								"api",
348								"v4.1",
349								"workflow",
350								"1",
351								"BILLING_ACCOUNT::CUSTOMER"
352							]
353						}
354					},
355					"response": []
356				}
357			],
358			"description": "This Authentication Request is set to authenticate the FC FASHION Retailer Admin User.\n\nThis request will set the `fluent.retailer.current.token` which is used by the following requests.\n\nThis effectively activates the current Retailer for the given Lab steps to be executed."
359		},
360		{
361			"name": "Create Settings",
362			"item": [
363				{
364					"name": "Create DEFAULT_TAX_TYPE setting",
365					"event": [
366						{
367							"listen": "test",
368							"script": {
369								"exec": [
370									""
371								],
372								"type": "text/javascript"
373							}
374						}
375					],
376					"request": {
377						"auth": {
378							"type": "bearer",
379							"bearer": [
380								{
381									"key": "token",
382									"value": "{{fluent.retailer.current.token}}",
383									"type": "string"
384								}
385							]
386						},
387						"method": "POST",
388						"header": [],
389						"body": {
390							"mode": "graphql",
391							"graphql": {
392								"query": "mutation taxType ($taxTypeValue: Json) {\n    createSetting(input: {\n        name: \"DEFAULT_TAX_TYPE\",\n        valueType: \"JSON\",\n        context: \"RETAILER\",\n        contextId: 1,\n        lobValue: $taxTypeValue\n    }) {\n        id\n    }\n}\n",
393								"variables": "{\n    \"taxTypeValue\": {\n        \"country\": \"UK\",\n        \"group\": \"STANDARD\",\n        \"tariff\": \"GST\"\n    }\n}\n"
394							}
395						},
396						"url": {
397							"raw": "{{fluent.account.host}}/graphql",
398							"host": [
399								"{{fluent.account.host}}"
400							],
401							"path": [
402								"graphql"
403							]
404						}
405					},
406					"response": []
407				},
408				{
409					"name": "Create APPEASEMENT_REASON setting",
410					"event": [
411						{
412							"listen": "test",
413							"script": {
414								"exec": [
415									""
416								],
417								"type": "text/javascript"
418							}
419						}
420					],
421					"request": {
422						"auth": {
423							"type": "bearer",
424							"bearer": [
425								{
426									"key": "token",
427									"value": "{{fluent.retailer.current.token}}",
428									"type": "string"
429								}
430							]
431						},
432						"method": "POST",
433						"header": [],
434						"body": {
435							"mode": "graphql",
436							"graphql": {
437								"query": "mutation {\n    createSetting(input: {\n        name: \"APPEASEMENT_REASON\",\n        valueType: \"JSON\",\n        context: \"RETAILER\",\n        contextId: 1,\n        lobValue: [\n        {\n            label: \"Save a sale\",\n            value: \"Save a sale\"\n        },\n        {\n            label: \"Match offer\",\n            value: \"Match offer\"\n        },\n        {\n            label: \"Customer Satisfaction\",\n            value: \"Customer Satisfaction\"\n        }\n    ]\n    }) {\n        id\n    }\n}\n",
438								"variables": ""
439							}
440						},
441						"url": {
442							"raw": "{{fluent.account.host}}/graphql",
443							"host": [
444								"{{fluent.account.host}}"
445							],
446							"path": [
447								"graphql"
448							]
449						}
450					},
451					"response": []
452				},
453				{
454					"name": "Create GST setting",
455					"event": [
456						{
457							"listen": "test",
458							"script": {
459								"exec": [
460									""
461								],
462								"type": "text/javascript"
463							}
464						}
465					],
466					"request": {
467						"auth": {
468							"type": "bearer",
469							"bearer": [
470								{
471									"key": "token",
472									"value": "{{fluent.retailer.current.token}}",
473									"type": "string"
474								}
475							]
476						},
477						"method": "POST",
478						"header": [],
479						"body": {
480							"mode": "graphql",
481							"graphql": {
482								"query": "mutation GST ($GSTValue: String) {\n    createSetting(input: {\n        name: \"GST\",\n        valueType: \"STRING\",\n        context: \"RETAILER\",\n        contextId: 1,\n        value: $GSTValue\n    }) {\n        id\n    }\n}\n",
483								"variables": "{\n\t\"GSTValue\": \"0.0\"\n}"
484							}
485						},
486						"url": {
487							"raw": "{{fluent.account.host}}/graphql",
488							"host": [
489								"{{fluent.account.host}}"
490							],
491							"path": [
492								"graphql"
493							]
494						}
495					},
496					"response": []
497				}
498			]
499		},
500		{
501			"name": "Post a basic Billing Account workflow",
502			"item": [
503				{
504					"name": "Post a a basic Billing Account workflow",
505					"request": {
506						"auth": {
507							"type": "bearer",
508							"bearer": [
509								{
510									"key": "token",
511									"value": "{{fluent.retailer.current.token}}",
512									"type": "string"
513								}
514							]
515						},
516						"method": "PUT",
517						"header": [],
518						"body": {
519							"mode": "raw",
520							"raw": "{\n    \"retailerId\": \"1\",\n    \"version\": \"1.0\",\n    \"entityType\": \"BILLING_ACCOUNT\",\n    \"entitySubtype\": \"CUSTOMER\",\n    \"description\": \"Basic Billing Account workflow template\",\n    \"name\": \"BILLING_ACCOUNT::CUSTOMER\",\n    \"rulesets\": [\n        {\n            \"name\": \"CREATE\",\n            \"description\": \"CREATE BILLING_ACCOUNT\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"ACTIVE\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"ProcessCredit\",\n            \"description\": \"ProcessCredit\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.CreateCreditMemoFromReturnOrder\",\n                    \"props\": {\n                        \"creditMemoType\": \"TYPE_MEMO\",\n                        \"creditMemoItemType\": \"TYPE_MEMO_ITEM\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"ACTIVE\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"CREATE\",\n            \"description\": \"CREATE CREDIT MEMO\",\n            \"type\": \"CREDIT_MEMO\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"PENDING_REFUND\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"PaymentFailed\",\n            \"description\": \"PaymentFailed\",\n            \"type\": \"CREDIT_MEMO\",\n            \"subtype\": \"DEFAULT\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"REFUND_FAILED\"\n                    }\n                },\n                {\n                    \"name\": \"FLUENTRETAIL.base.SendEventForCreditMemoToReturn\",\n                    \"props\": {\n                        \"eventName\": \"RefundRejected\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"PENDING_REFUND\"\n                },\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"PaymentComplete\",\n            \"description\": \"PaymentComplete\",\n            \"type\": \"CREDIT_MEMO\",\n            \"subtype\": \"DEFAULT\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"REFUND_COMPLETE\"\n                    }\n                },\n                {\n                    \"name\": \"FLUENTRETAIL.base.SendEventForCreditMemoToReturn\",\n                    \"props\": {\n                        \"eventName\": \"RefundComplete\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"PENDING_REFUND\"\n                },\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"ProcessCreditForRevisedOrder\",\n            \"description\": \"Start the processing of the creditMemo\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.CreateCreditMemoForRevisedOrder\",\n                    \"props\": {\n                        \"creditMemoType\": \"EXCHANGE\",\n                        \"creditMemoItemType\": \"EXCHANGE_ITEM\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"ACTIVE\"\n                }\n            ],\n            \"userActions\": []\n        }\n    ],\n    \"statuses\": [\n        {\n            \"name\": \"CREATED\",\n            \"entityType\": \"BILLING_ACCOUNT\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"ACTIVE\",\n            \"entityType\": \"BILLING_ACCOUNT\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"REFUND_COMPLETE\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"DONE\"\n        },\n        {\n            \"name\": \"REFUND_FAILED\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"DONE\"\n        },\n        {\n            \"name\": \"CREATED\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"PENDING_REFUND\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"BOOKING\"\n        }\n    ]\n}",
521							"options": {
522								"raw": {
523									"language": "json"
524								}
525							}
526						},
527						"url": {
528							"raw": "{{fluent.account.host}}/api/v4.1/workflow",
529							"host": [
530								"{{fluent.account.host}}"
531							],
532							"path": [
533								"api",
534								"v4.1",
535								"workflow"
536							]
537						}
538					},
539					"response": []
540				}
541			]
542		}
543	]
544}

Go to Postman and Authenticate using POST request Fluent Auth

Authenticate using POST request Fluent Auth - e.g. Retailer FC_FASHION

Get the setting

Get Setting using GET request Get the Retailer settings

Get workflow by Retailer Id and Workflow Name using GET request of the same name.

Create settings

Create settings (if necessary) using POST requests:

Create DEFAULT_TAX_TYPE setting
Create APPEASEMENT_REASON setting
Create GST setting

Fluent Commerce

Knowledge Tracks Related To This Topic

Getting Started with Fluent OMS

Getting Started Configuring Fluent OMS (webapps)

Configuring the Unified View of Inventory: A Step-by-Step Guide

Configure UI for Mixed Baskets

Configuring Profiles and Sourcing Strategies: A Step-by-Step Guide

Configuring Order Revision

Configuring Change Address

Configuring Appeasement

How to enable Returns in Fluent OMS and Fluent Store

Activity Component

1{
2	"info": {
3		"_postman_id": "7d0bfb3c-b131-4cec-b7b2-f9167c267049",
4		"name": "Appeasement",
5		"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json"
6	},
7	"item": [
8		{
9			"name": "Authenticate FC_FASHION Retailer",
10			"item": [
11				{
12					"name": "Fluent Auth - Retailer FC_FASHION",
13					"event": [
14						{
15							"listen": "test",
16							"script": {
17								"exec": [
18									"const jsonData = pm.response.json();",
19									"var currentRetailerRef = pm.environment.get(\"fluent.retailer.current.ref\");",
20									"",
21									"pm.environment.set(\"fluent.retailer.current.token\", jsonData.access_token);",
22									"pm.environment.set(\"fluent.retailer.\" + currentRetailerRef + \".token\", jsonData.access_token);",
23									"",
24									"var expiryTime = new Date(Date.now() + (jsonData.expires_in * 1000));",
25									"console.log(\"Token will expire at: \" + expiryTime);",
26									"pm.environment.set(\"fluent.retailer.current.token.expiry_time\", expiryTime);",
27									"pm.environment.set(\"fluent.retailer.\" + currentRetailerRef + \".token.expiry_time\", expiryTime);",
28									"pm.environment.set(\"fluent.retailer.current.customer.id\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".customer.id\"));",
29									"",
30									"console.log(\"Setting current retailer token: \" + pm.environment.get(\"fluent.retailer.current.token\") + \", RetailerRef: \" + pm.environment.get(\"fluent.retailer.current.ref\") + \", RetailerId: \" + pm.environment.get(\"fluent.retailer.current.id\"));",
31									""
32								],
33								"type": "text/javascript"
34							}
35						},
36						{
37							"listen": "prerequest",
38							"script": {
39								"exec": [
40									"",
41									"let use_unique_suffix = (pm.environment.has(\"fluent.data.use_unique_suffix\") && pm.environment.get(\"fluent.data.use_unique_suffix\") == true) ? true : false;",
42									"",
43									"let currentRetailerRef = \"fc_fashion\";",
44									"if (use_unique_suffix) {",
45									"    currentRetailerRef = currentRetailerRef + \"_\" + pm.environment.get(\"fluent.data.unique_suffix\");",
46									"}",
47									"",
48									"pm.variables.set(\"fc_fashion_username\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.username\"));",
49									"pm.variables.set(\"fc_fashion_password\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.password\"));",
50									"",
51									"pm.environment.set(\"fluent.retailer.current.id\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".id\"));",
52									"pm.environment.set(\"fluent.retailer.current.ref\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".ref\"));",
53									"pm.environment.set(\"fluent.retailer.current.user.username\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.username\"));",
54									"pm.environment.set(\"fluent.retailer.current.user.password\", pm.environment.get(\"fluent.retailer.\" + currentRetailerRef + \".user.password\"));",
55									"",
56									"",
57									"",
58									"console.log(\"Setting Current Retailer: \" + pm.environment.get(\"fluent.retailer.current.ref\") + \", Id: \" + pm.environment.get(\"fluent.retailer.current.id\"));",
59									""
60								],
61								"type": "text/javascript"
62							}
63						}
64					],
65					"request": {
66						"auth": {
67							"type": "noauth"
68						},
69						"method": "POST",
70						"header": [],
71						"url": {
72							"raw": "{{fluent.account.host}}/oauth/token?username={{fc_fashion_username}}&password={{fc_fashion_password}}&client_id={{fluent.account.client_id}}&client_secret={{fluent.account.client_secret}}&scope=api&grant_type=password",
73							"host": [
74								"{{fluent.account.host}}"
75							],
76							"path": [
77								"oauth",
78								"token"
79							],
80							"query": [
81								{
82									"key": "username",
83									"value": "{{fc_fashion_username}}",
84									"description": "FC Fashion Admin User Username"
85								},
86								{
87									"key": "password",
88									"value": "{{fc_fashion_password}}",
89									"description": "FC Fashion Admin User Password"
90								},
91								{
92									"key": "client_id",
93									"value": "{{fluent.account.client_id}}",
94									"description": "Fluent Account Id / Client Id"
95								},
96								{
97									"key": "client_secret",
98									"value": "{{fluent.account.client_secret}}",
99									"description": "Fluent Account Client Secret"
100								},
101								{
102									"key": "scope",
103									"value": "api"
104								},
105								{
106									"key": "grant_type",
107									"value": "password"
108								}
109							]
110						},
111						"description": "## Authenticate the FC FASHION Retailer Admin User\n\nUse this request to Authenticate your FC FASHION Retailer Admin User.\n\nThe response `access_token` will be saved into the `fluent.retailer.current.token` and the `fluent.retailer.<retailer_ref>.token` environment variable for use in future requests.\n\nFor more information: [Fluent API Authentication](https://lingo.fluentcommerce.com/DEVELOPERS/authentication/)"
112					},
113					"response": [
114						{
115							"name": "Fluent Auth - Account: SUCCESS",
116							"originalRequest": {
117								"method": "POST",
118								"header": [],
119								"url": {
120									"raw": "{{fluent.account.host}}/oauth/token?username={{fluent.account.username}}&password={{fluent.account.password}}&client_id={{fluent.account.client_id}}&client_secret={{fluent.account.client_secret}}&scope=api&grant_type=password",
121									"host": [
122										"{{fluent.account.host}}"
123									],
124									"path": [
125										"oauth",
126										"token"
127									],
128									"query": [
129										{
130											"key": "username",
131											"value": "{{fluent.account.username}}",
132											"description": "Fluent Account Admin User Username"
133										},
134										{
135											"key": "password",
136											"value": "{{fluent.account.password}}",
137											"description": "Fluent Account Admin User Password"
138										},
139										{
140											"key": "client_id",
141											"value": "{{fluent.account.client_id}}",
142											"description": "Fluent Account Id / Client Id"
143										},
144										{
145											"key": "client_secret",
146											"value": "{{fluent.account.client_secret}}",
147											"description": "Fluent Account Client Secret"
148										},
149										{
150											"key": "scope",
151											"value": "api"
152										},
153										{
154											"key": "grant_type",
155											"value": "password"
156										}
157									]
158								}
159							},
160							"status": "OK",
161							"code": 200,
162							"_postman_previewlanguage": "json",
163							"header": [
164								{
165									"key": "Date",
166									"value": "Tue, 29 Oct 2019 00:45:57 GMT"
167								},
168								{
169									"key": "Content-Type",
170									"value": "application/json;charset=UTF-8"
171								},
172								{
173									"key": "Transfer-Encoding",
174									"value": "chunked"
175								},
176								{
177									"key": "Connection",
178									"value": "keep-alive"
179								},
180								{
181									"key": "Server",
182									"value": "nginx/1.10.3 (Ubuntu)"
183								},
184								{
185									"key": "Access-Control-Allow-Origin",
186									"value": "*"
187								},
188								{
189									"key": "Access-Control-Allow-Methods",
190									"value": "POST, PUT, GET, OPTIONS, DELETE"
191								},
192								{
193									"key": "Access-Control-Max-Age",
194									"value": "3600"
195								},
196								{
197									"key": "Access-Control-Allow-Headers",
198									"value": "Authorization, Content-Type, fluent.account"
199								},
200								{
201									"key": "Access-Control-Expose-Headers",
202									"value": "flex.type, flex.version"
203								},
204								{
205									"key": "Access-Control-Allow-Credentials",
206									"value": "true"
207								},
208								{
209									"key": "X-Content-Type-Options",
210									"value": "nosniff"
211								},
212								{
213									"key": "X-XSS-Protection",
214									"value": "1; mode=block"
215								},
216								{
217									"key": "Cache-Control",
218									"value": "no-cache, no-store, max-age=0, must-revalidate"
219								},
220								{
221									"key": "Cache-Control",
222									"value": "no-store"
223								},
224								{
225									"key": "Pragma",
226									"value": "no-cache"
227								},
228								{
229									"key": "Pragma",
230									"value": "no-cache"
231								},
232								{
233									"key": "Expires",
234									"value": "0"
235								},
236								{
237									"key": "X-Frame-Options",
238									"value": "DENY"
239								}
240							],
241							"cookie": [],
242							"body": "{\n    \"access_token\": \"4b5eb7aa-5714-4c73-8813-4e4aae0a3e0f\",\n    \"token_type\": \"bearer\",\n    \"expires_in\": 2579,\n    \"scope\": \"api\",\n    \"Roles\": [],\n    \"FirstName\": \"Bob\",\n    \"LastName\": \"Smith\"\n}"
243						}
244					]
245				}
246			],
247			"description": "This Authentication Request is set to authenticate the FC FASHION Retailer Admin User.\n\nThis request will set the `fluent.retailer.current.token` which is used by the following requests.\n\nThis effectively activates the current Retailer for the given Lab steps to be executed."
248		},
249		{
250			"name": "Get Setting/Workflow",
251			"item": [
252				{
253					"name": "Get the Retailer settings",
254					"event": [
255						{
256							"listen": "test",
257							"script": {
258								"exec": [
259									"tests[\"HTTP response code is 200\"] = responseCode.code === 200;"
260								],
261								"type": "text/javascript"
262							}
263						}
264					],
265					"request": {
266						"auth": {
267							"type": "bearer",
268							"bearer": [
269								{
270									"key": "token",
271									"value": "{{fluent.retailer.current.token}}",
272									"type": "string"
273								}
274							]
275						},
276						"method": "GET",
277						"header": [
278							{
279								"key": "Content-Type",
280								"value": "application/json"
281							}
282						],
283						"url": {
284							"raw": "{{fluentApiHost}}/api/v4.1/settings/retailer/1/DEFAULT_TAX_TYPE",
285							"host": [
286								"{{fluentApiHost}}"
287							],
288							"path": [
289								"api",
290								"v4.1",
291								"settings",
292								"retailer",
293								"1",
294								"DEFAULT_TAX_TYPE"
295							]
296						}
297					},
298					"response": []
299				},
300				{
301					"name": "Get workflow by Retailer Id and Workflow Name",
302					"event": [
303						{
304							"listen": "test",
305							"script": {
306								"exec": [
307									"tests[\"HTTP response code is 200\"] = responseCode.code === 200;"
308								],
309								"type": "text/javascript"
310							}
311						}
312					],
313					"request": {
314						"auth": {
315							"type": "bearer",
316							"bearer": [
317								{
318									"key": "token",
319									"value": "{{fluent.retailer.current.token}}",
320									"type": "string"
321								}
322							]
323						},
324						"method": "GET",
325						"header": [
326							{
327								"key": "Content-Type",
328								"value": "application/json"
329							},
330							{
331								"key": "Authorization",
332								"value": "Bearer {{access_token}}"
333							},
334							{
335								"key": "fluent.account",
336								"value": "{{account.id}}",
337								"type": "text",
338								"disabled": true
339							}
340						],
341						"url": {
342							"raw": "{{fluentApiHost}}/api/v4.1/workflow/1/BILLING_ACCOUNT::CUSTOMER",
343							"host": [
344								"{{fluentApiHost}}"
345							],
346							"path": [
347								"api",
348								"v4.1",
349								"workflow",
350								"1",
351								"BILLING_ACCOUNT::CUSTOMER"
352							]
353						}
354					},
355					"response": []
356				}
357			],
358			"description": "This Authentication Request is set to authenticate the FC FASHION Retailer Admin User.\n\nThis request will set the `fluent.retailer.current.token` which is used by the following requests.\n\nThis effectively activates the current Retailer for the given Lab steps to be executed."
359		},
360		{
361			"name": "Create Settings",
362			"item": [
363				{
364					"name": "Create DEFAULT_TAX_TYPE setting",
365					"event": [
366						{
367							"listen": "test",
368							"script": {
369								"exec": [
370									""
371								],
372								"type": "text/javascript"
373							}
374						}
375					],
376					"request": {
377						"auth": {
378							"type": "bearer",
379							"bearer": [
380								{
381									"key": "token",
382									"value": "{{fluent.retailer.current.token}}",
383									"type": "string"
384								}
385							]
386						},
387						"method": "POST",
388						"header": [],
389						"body": {
390							"mode": "graphql",
391							"graphql": {
392								"query": "mutation taxType ($taxTypeValue: Json) {\n    createSetting(input: {\n        name: \"DEFAULT_TAX_TYPE\",\n        valueType: \"JSON\",\n        context: \"RETAILER\",\n        contextId: 1,\n        lobValue: $taxTypeValue\n    }) {\n        id\n    }\n}\n",
393								"variables": "{\n    \"taxTypeValue\": {\n        \"country\": \"UK\",\n        \"group\": \"STANDARD\",\n        \"tariff\": \"GST\"\n    }\n}\n"
394							}
395						},
396						"url": {
397							"raw": "{{fluent.account.host}}/graphql",
398							"host": [
399								"{{fluent.account.host}}"
400							],
401							"path": [
402								"graphql"
403							]
404						}
405					},
406					"response": []
407				},
408				{
409					"name": "Create APPEASEMENT_REASON setting",
410					"event": [
411						{
412							"listen": "test",
413							"script": {
414								"exec": [
415									""
416								],
417								"type": "text/javascript"
418							}
419						}
420					],
421					"request": {
422						"auth": {
423							"type": "bearer",
424							"bearer": [
425								{
426									"key": "token",
427									"value": "{{fluent.retailer.current.token}}",
428									"type": "string"
429								}
430							]
431						},
432						"method": "POST",
433						"header": [],
434						"body": {
435							"mode": "graphql",
436							"graphql": {
437								"query": "mutation {\n    createSetting(input: {\n        name: \"APPEASEMENT_REASON\",\n        valueType: \"JSON\",\n        context: \"RETAILER\",\n        contextId: 1,\n        lobValue: [\n        {\n            label: \"Save a sale\",\n            value: \"Save a sale\"\n        },\n        {\n            label: \"Match offer\",\n            value: \"Match offer\"\n        },\n        {\n            label: \"Customer Satisfaction\",\n            value: \"Customer Satisfaction\"\n        }\n    ]\n    }) {\n        id\n    }\n}\n",
438								"variables": ""
439							}
440						},
441						"url": {
442							"raw": "{{fluent.account.host}}/graphql",
443							"host": [
444								"{{fluent.account.host}}"
445							],
446							"path": [
447								"graphql"
448							]
449						}
450					},
451					"response": []
452				},
453				{
454					"name": "Create GST setting",
455					"event": [
456						{
457							"listen": "test",
458							"script": {
459								"exec": [
460									""
461								],
462								"type": "text/javascript"
463							}
464						}
465					],
466					"request": {
467						"auth": {
468							"type": "bearer",
469							"bearer": [
470								{
471									"key": "token",
472									"value": "{{fluent.retailer.current.token}}",
473									"type": "string"
474								}
475							]
476						},
477						"method": "POST",
478						"header": [],
479						"body": {
480							"mode": "graphql",
481							"graphql": {
482								"query": "mutation GST ($GSTValue: String) {\n    createSetting(input: {\n        name: \"GST\",\n        valueType: \"STRING\",\n        context: \"RETAILER\",\n        contextId: 1,\n        value: $GSTValue\n    }) {\n        id\n    }\n}\n",
483								"variables": "{\n\t\"GSTValue\": \"0.0\"\n}"
484							}
485						},
486						"url": {
487							"raw": "{{fluent.account.host}}/graphql",
488							"host": [
489								"{{fluent.account.host}}"
490							],
491							"path": [
492								"graphql"
493							]
494						}
495					},
496					"response": []
497				}
498			]
499		},
500		{
501			"name": "Post a basic Billing Account workflow",
502			"item": [
503				{
504					"name": "Post a a basic Billing Account workflow",
505					"request": {
506						"auth": {
507							"type": "bearer",
508							"bearer": [
509								{
510									"key": "token",
511									"value": "{{fluent.retailer.current.token}}",
512									"type": "string"
513								}
514							]
515						},
516						"method": "PUT",
517						"header": [],
518						"body": {
519							"mode": "raw",
520							"raw": "{\n    \"retailerId\": \"1\",\n    \"version\": \"1.0\",\n    \"entityType\": \"BILLING_ACCOUNT\",\n    \"entitySubtype\": \"CUSTOMER\",\n    \"description\": \"Basic Billing Account workflow template\",\n    \"name\": \"BILLING_ACCOUNT::CUSTOMER\",\n    \"rulesets\": [\n        {\n            \"name\": \"CREATE\",\n            \"description\": \"CREATE BILLING_ACCOUNT\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"ACTIVE\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"ProcessCredit\",\n            \"description\": \"ProcessCredit\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.CreateCreditMemoFromReturnOrder\",\n                    \"props\": {\n                        \"creditMemoType\": \"TYPE_MEMO\",\n                        \"creditMemoItemType\": \"TYPE_MEMO_ITEM\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"ACTIVE\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"CREATE\",\n            \"description\": \"CREATE CREDIT MEMO\",\n            \"type\": \"CREDIT_MEMO\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"PENDING_REFUND\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"PaymentFailed\",\n            \"description\": \"PaymentFailed\",\n            \"type\": \"CREDIT_MEMO\",\n            \"subtype\": \"DEFAULT\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"REFUND_FAILED\"\n                    }\n                },\n                {\n                    \"name\": \"FLUENTRETAIL.base.SendEventForCreditMemoToReturn\",\n                    \"props\": {\n                        \"eventName\": \"RefundRejected\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"PENDING_REFUND\"\n                },\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"PaymentComplete\",\n            \"description\": \"PaymentComplete\",\n            \"type\": \"CREDIT_MEMO\",\n            \"subtype\": \"DEFAULT\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.ChangeStateGQL\",\n                    \"props\": {\n                        \"status\": \"REFUND_COMPLETE\"\n                    }\n                },\n                {\n                    \"name\": \"FLUENTRETAIL.base.SendEventForCreditMemoToReturn\",\n                    \"props\": {\n                        \"eventName\": \"RefundComplete\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"PENDING_REFUND\"\n                },\n                {\n                    \"status\": \"CREATED\"\n                }\n            ],\n            \"userActions\": []\n        },\n        {\n            \"name\": \"ProcessCreditForRevisedOrder\",\n            \"description\": \"Start the processing of the creditMemo\",\n            \"type\": \"BILLING_ACCOUNT\",\n            \"subtype\": \"CUSTOMER\",\n            \"eventType\": \"NORMAL\",\n            \"rules\": [\n                {\n                    \"name\": \"FLUENTRETAIL.base.CreateCreditMemoForRevisedOrder\",\n                    \"props\": {\n                        \"creditMemoType\": \"EXCHANGE\",\n                        \"creditMemoItemType\": \"EXCHANGE_ITEM\"\n                    }\n                }\n            ],\n            \"triggers\": [\n                {\n                    \"status\": \"ACTIVE\"\n                }\n            ],\n            \"userActions\": []\n        }\n    ],\n    \"statuses\": [\n        {\n            \"name\": \"CREATED\",\n            \"entityType\": \"BILLING_ACCOUNT\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"ACTIVE\",\n            \"entityType\": \"BILLING_ACCOUNT\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"REFUND_COMPLETE\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"DONE\"\n        },\n        {\n            \"name\": \"REFUND_FAILED\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"DONE\"\n        },\n        {\n            \"name\": \"CREATED\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"BOOKING\"\n        },\n        {\n            \"name\": \"PENDING_REFUND\",\n            \"entityType\": \"CREDIT_MEMO\",\n            \"category\": \"BOOKING\"\n        }\n    ]\n}",
521							"options": {
522								"raw": {
523									"language": "json"
524								}
525							}
526						},
527						"url": {
528							"raw": "{{fluent.account.host}}/api/v4.1/workflow",
529							"host": [
530								"{{fluent.account.host}}"
531							],
532							"path": [
533								"api",
534								"v4.1",
535								"workflow"
536							]
537						}
538					},
539					"response": []
540				}
541			]
542		}
543	]
544}

Configuring Appeasement

Key Points

Prerequisites

Settings Creation and Editing Mutations

Steps

Billing Account Flow availability in Orchestration

Order workflows

Home Delivery (HD) Order workflow ¶

Click and Collect (CC) Order workflow ¶

Required settings

DEFAULT_TAX_TYPE Setting

APPEASEMENT_REASON Setting

GST Setting

Configuration via Postman

Setup Appeasement configuration via Postman

Go to Postman and Authenticate using POST request Fluent Auth

Get the setting

Get workflow by Retailer Id and Workflow Name using GET request of the same name.

Create settings

Fluent Commerce

Knowledge Tracks Related To This Topic

Building Blocks

By Type

Helpful Resources

Quick Links
