How to enable Returns in Fluent OMS and Fluent Store
Author:
Fluent Commerce
Changed on:
8 July 2024
Overview
The feature is available for any OMX web apps. The following guide will step through the areas of configuration to enable the reference solution.
Key points
- A step-by-step guide to enable reference return functionality.
- Settings setup
- Create & Assign the Instore Return Role
- Workflow Configuration (Order, returnOrder and Billing)
- Manifest Changes for Fluent Store and Fluent OMS
Settings
The following settings are required as part of the Return setup:
1POST: {{fluentApiHost}}/graphql
2
3//create for both ACCOUNT and Retailer level:
4
5
6GraphQL Query:
7mutation CreateSetting {
8createSetting(input: {
9 name: "RETURN_ORCHESTRATED",
10 valueType: "BOOLEAN",
11 value: "TRUE",
12 context: "RETAILER",
13 contextId:$retailerId }) {
14 id
15 name
16 }
17}
18
19createSetting(input: {
20 name: "RETURN_ORCHESTRATED",
21 valueType: "BOOLEAN",
22 value: "TRUE",
23 context: "ACCOUNT",
24 contextId:0}) {
25 id
26 name
27 }
28}
29
1POST: {{fluentApiHost}}/graphql
2
3// create a postman environment variable:
4// Variable: json_value
5// initial val + current value:
6[
7 { "label":"Reusable", "value":"GOOD" },
8 { "label":"Destroy", "value":"BROKEN" }
9]
10
11
12GraphQL variables:
13{
14 "retailerId": {{retailer_id}},
15 "lobValue" : {{json_value}}
16}
17
18
19GraphQL Query:
20mutation CreateSetting($retailerId:Int! , $lobValue:Json) {
21createSetting(input: {
22 name: "RETURN_CONDITION",
23 valueType: "JSON",
24 lobValue:$lobValue ,
25 context: "RETAILER",
26 contextId:$retailerId}) {
27 id
28 name
29 }
30}
1POST: {{fluentApiHost}}/graphql
2
3// create a postman environment variable:
4// Variable: json_value
5// initial val + current value:
6[
7
8 {
9 "label": "Wrong Size",
10 "value": "WRONGSIZE"
11 },
12 {
13 "label": "Broken",
14 "value": "BROKEN"
15 },
16 {
17 "label": "Doesn't match the description",
18 "value": "WRONG_DESCRIPTION"
19 },
20 {
21 "label": "Change of mind",
22 "value": "CHANGE_MIND"
23 }
24]
25
26
27GraphQL variables:
28{
29 "retailerId": {{retailer_id}},
30 "lobValue" : {{json_value}}
31}
32
33
34GraphQL Query:
35mutation CreateSetting($retailerId:Int! , $lobValue:Json) {
36createSetting(input: {
37 name: "RETURN_REASON",
38 valueType: "JSON",
39 lobValue:$lobValue ,
40 context: "RETAILER",
41 contextId:$retailerId}) {
42 id
43 name
44 }
45}
1POST: {{fluentApiHost}}/graphql
2
3
4GraphQL Query:
5mutation CreateSetting {
6createSetting(input: {
7 name: "DEFAULT_RETURN_DESTINATION_LOCATION",
8 valueType: "STRING",
9 value: $retailerId,
10 context: "RETAILER",
11 contextId:$retailerId }) {
12 id
13 name
14 }
15}
1POST: {{fluentApiHost}}/graphql
2
3// create a postman environment variable:
4// Variable: DEFAULT_TAX_TYPE
5// initial val + current value:
6{
7 "country": "AUS",
8 "group": "STANDARD",
9 "tariff": "GST"
10}
11
12
13GraphQL variables:
14{
15 "retailerId": {{retailer_id}},
16 "lobValue" : {{DEFAULT_TAX_TYPE}}
17}
18
19
20GraphQL Query:
21mutation CreateSetting($retailerId:Int! , $lobValue:Json) {
22createSetting(input: {
23 name: "DEFAULT_TAX_TYPE",
24 valueType: "JSON",
25 lobValue:$lobValue ,
26 context: "RETAILER",
27 contextId:$retailerId}) {
28 id
29 name
30 }
31}
1POST {{fluentApiHost}}/graphql
2
3mutation CreateSetting {
4 createSetting(input: {
5 name: "HOTFIX_NEW_APOLLO_CLIENT_ENABLED",
6 valueType: "BOOLEAN",
7 value: "TRUE",
8 context: "ACCOUNT",
9 contextId: 0}) {
10 id
11 name
12 }
13}
Create & Assign the Instore Return Role
1POST: {{fluentApiHost}}/graphql
2
3mutation {
4 createRole(input: {name: "INSTORE_RETURNS",
5 permissions: [
6 {name: "ORDER_VIEW"},
7 {name: "CUSTOMER_VIEW"},
8 {name: "RETURN_VIEW"},
9 {name: "ORDERITEM_VIEW"},
10 {name: "PRODUCT_VIEW"},
11 {name: "VARIANTPRODUCT_VIEW"},
12 {name: "STANDARDPRODUCT_VIEW"},
13 {name: "GROUPPRODUCT_VIEW"},
14 {name: "CATEGORY_VIEW"}
15 ]
16 }) {
17 name
18 permissions {
19 name
20 }
21 }
22}
23
1POST: {{fluentApiHost}}/graphql
2
3// Graphql Variables:
4{
5 "input": {
6 "id": {{userID}},
7 "roles": [
8 {
9 "contexts": [
10 {
11 "contextId": "{{retailerID}}",
12 "contextType": "RETAILER"
13 },
14 {
15 "contextId": "{{locationID}}",
16 "contextType": "AGENT"
17 }
18 ],
19 "role": {
20 "name": "INSTORE_RETURNS"
21 }
22 }
23 ]
24 }
25}
26
27
28
29
30// QUERY:
31mutation updateUser ($input: UpdateUserInput) {
32 updateUser (input: $input) {
33 id
34 ref
35 username
36 title
37 firstName
38 lastName
39 primaryEmail
40 primaryPhone
41 type
42 status
43 department
44 country
45 timezone
46 promotionOptIn
47 createdOn
48 updatedOn
49 roles{
50 contexts{
51 contextId
52 contextType
53 }
54 role{
55 name
56 }
57 }
58 }
59}
Workflow Configuration

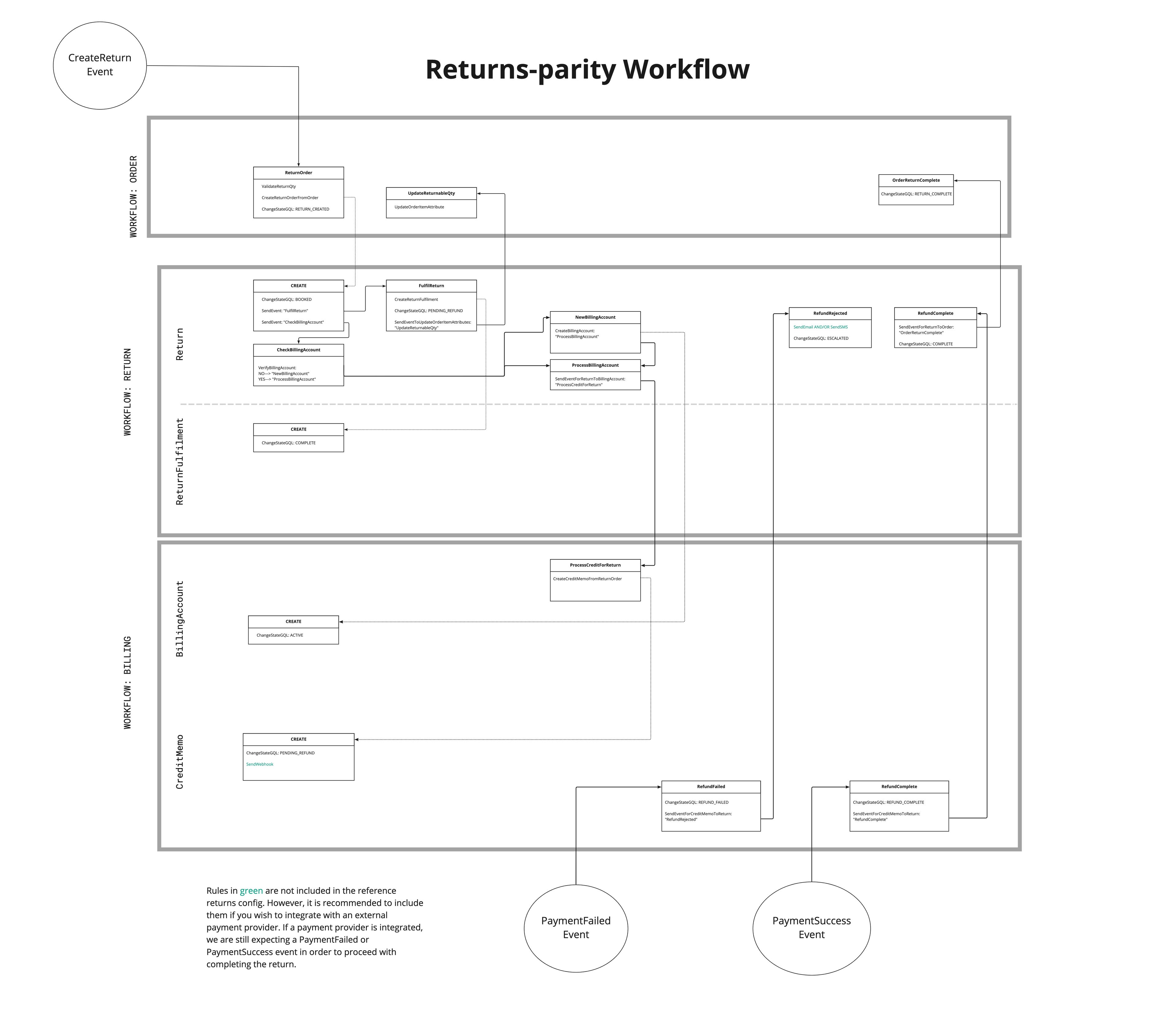

The following steps provide a reference solution of how workflows can be configured to enable . The below diagram serves as a visual guide of the logical flow of these rules and how they interact across workflows to manage a Return across its entire lifecycle. Hence, we will update the workflows and create a return and a billing .

1. Configuring the Order workflow
The following supplied rules can be added to the to allow a Return to be created from an existing .
ValidateOrderQty
The `ValidateOrderQty`
validates if a `ReturnOrder`
can be created based on the item quantity that is available to return.
CreateReturnOrderFromOrder
The `CreateReturnOrderFromOrder`
creates a return to begin the of refunding the returned items.
UpdateOrderItemAttribute
The `UpdateOrderItemAttribute`
calculates the remaining returnable quantity for the items within the .
Example Order Rulesets using the Returns rules
Using the above rules, we have assembled a sample set of rulesets, including status updates, which can be implemented into an .
If you are using the sample rulesets, please replace the `subtype`
value with the type you are implementing the rulesets against.
1{
2 "name":"ReturnOrder",
3 "description":"Validate if the item can be returned and create the return order",
4 "type":"ORDER",
5 "subtype":"{{order_type}}",
6 "eventType":"NORMAL",
7 "rules":[
8 {
9 "name":"FLUENTRETAIL.base.ValidateReturnQty"
10 },
11 {
12 "name":"FLUENTRETAIL.base.CreateReturnOrderFromOrder"
13 },
14 {
15 "name":"FLUENTRETAIL.base.ChangeStateGQL",
16 "props":{
17 "status":"RETURN_CREATED"
18 }
19 }
20 ],
21 "triggers":[
22 {
23 "status":"COMPLETE"
24 },
25 {
26 "status":"RETURN_CREATED"
27 },
28 {
29 "status":"RETURN_COMPLETE"
30 }
31 ],
32 "userActions":[
33 {
34 "context":[
35 {
36 "type":"PRIMARY",
37 "label":"Submit Return",
38 "confirm":false,
39 "modules":[
40 "adminconsole",
41 "store",
42 "servicepoint"
43 ]
44 }
45 ],
46 "attributes":[
47 {
48 "name":"lodgedLocation",
49 "type":"STRING",
50 "label":"Lodged Location",
51 "source":"",
52 "mandatory":false,
53 "defaultValue":""
54 },
55 {
56 "name":"pickupLocation",
57 "type":"ADDRESS",
58 "label":"Pickup Location",
59 "source":"",
60 "mandatory":false,
61 "defaultValue":""
62 },
63 {
64 "name":"returnItems",
65 "type":"RETURN_ITEMS",
66 "label":"Items",
67 "source":"",
68 "mandatory":true,
69 "defaultValue":""
70 },
71 {
72 "name":"type",
73 "type":"STRING",
74 "label":"Return Type",
75 "source":"",
76 "options":{
77 "active":[
78 {
79 "name":"Default",
80 "value":"DEFAULT"
81 }
82 ]
83 },
84 "mandatory":false,
85 "defaultValue":""
86 }
87 ]
88 }
89 ]
90},
91{
92 "name":"UpdateReturnableQty",
93 "description":"This rule updates the returnableQty to the order items attributes",
94 "type":"ORDER",
95 "subtype":"{{order_type}}",
96 "eventType":"NORMAL",
97 "rules":[
98 {
99 "name":"FLUENTRETAIL.base.UpdateOrderItemAttribute"
100 }
101 ],
102 "triggers":[
103 {
104 "status":"RETURN_CREATED"
105 }
106 ],
107 "userActions":[
108
109 ]
110},
111{
112 "name":"OrderReturnComplete",
113 "description":"Updates the status of the Return Order",
114 "type":"ORDER",
115 "subtype":"{{order_type}}",
116 "eventType":"NORMAL",
117 "rules":[
118 {
119 "name":"FLUENTRETAIL.base.ChangeStateGQL",
120 "props":{
121 "status":"RETURN_COMPLETE"
122 }
123 }
124 ],
125 "triggers":[
126 {
127 "status":"RETURN_CREATED"
128 }
129 ],
130 "userActions":[
131
132 ]
133}
The sample `ReturnOrder`
above has a `ChangeStateGQL`
which changes the status to `RETURN_CREATED`
. Secondly, the `OrderReturnComplete`
also contains a `ChangeStateGQL`
which upon execution changes the status to `RETURN_COMPLETE`
. To enable these rules to execute you will need to add the relevant statuses to the . The following snippet provides an example of that.
1{
2 "name": "RETURN_CREATED",
3 "entityType": "ORDER",
4 "category": "DONE"
5},
6{
7 "name": "RETURN_COMPLETE",
8 "entityType": "ORDER",
9 "category": "DONE"
10}
2. Configuring the Return Order workflow
After creating a Return , you will need to create a to manage it in its lifecycle. The following rules facilitate that :
CreateReturnFulfilment
The `CreateReturnFulfilment`
creates a Return Fulfilment for all return items.
SendEventToUpdateOrderItemAttribute
The `SendEventToUpdateOrderItemAttribute`
updates the returnable quantity amount for each returned item.
VerifyBillingAccount
The `VerifyBillingAccount`
verifies that a billing exists for the Customer Returning the items.
CreateBillingAccount
The `CreateBillingAccount`
creates a Billing for the Customer.
SendEventForReturnToBillingAccount
The `SendEventForReturnToBillingAccount`
sends an to the Billing associated with the Customer creating the Return.
SendEventForReturnToOrder
The `SendEventForReturnToOrder`
sends an to the associated with the .
Example Return Order workflow
Using the above rules, we have assembled a sample Return Order Workflow. This sample assumes the use of the following environment variables.
`retailerID`
`version`
You may have to change these values to be in line with the Retailer and version you wish to implement the against.
3. Configuring the Billing Account Workflow
CreateCreditMemoFromReturnOrder
The `CreateCreditMemoFromReturnOrder`
when executed creates a for the customer billing with the amount captured in the Return .
SendEventForCreditMemoToReturn
The `SendEventForCreditMemoToReturn`
sends an from the to the return .
Example Billing Account workflow
Using the above rules, we have assembled a sample Billing Account Workflow. This sample assumes the use of the following environment variables.
`retailerID`
`version`
You may have to change these values to be in line with the Retailer and version you wish to implement the against.
Manifest Changes for Fluent Store and Fluent OMS
1. Configure Fluent Store Base Manifest
The following changes will be required to the `fc.mystique.manifest.store`
manifest.
Add the Returns Plugin
Add the alongside any others that exist within the . See how to configure UX plugins here
`{`
"type": "url",
"src": "/_plugins/"
}
Add the Returns Reference Route
Add the Reference Route alongside the others within the . See Reference Routes for more information.
`{`
"type": "reference",
"settingName": "fc...store.fragment."
}
Add the Returns Fragment
Create a new fragment called `fc.mystique.manifest.store.fragment.returns`
using the same naming as the reference route added to `fc.mystique.manifest.store.json`
in the previous step.
The most up-to-date content for the fragment can be found in the Fluent Store getting started guide.
2. Configure Fluent OMS Manifests
Update OMS Base Manifest
Much like the Store , the needs to be added to the base OMS manifest.
`{`
"type": "url",
"src": "/_plugins/"
}
Configure the Order Management Fragment
If you are not using the latest `fc.mystique.manifest.oms.fragment.ordermanagement`
reference fragment, then the following additions are required.
In the props of the `orders/:id/:retailerId/:ref`
( Details) page a primary is required for returnOrder.
Optionally add `overrides`
to edit the `lodgedLocation`
and `pickupLocationtext`
text labels.
In the following snippet lines 21-34 are the new configuration which should be added to the `ordermanagement`
fragment. The other lines serve to demonstrate where exactly the new and overrides are required.
Returns order management fragment changes
1{
2 "type": "page",
3 "path": "orders/:id/:retailerId/:ref",
4 "component": "fc.page",
5 "data": {
6 "query": "query ($id: ID!, $items_after: String, $items_first: Int, $fulfilments_first: Int, $comments_first: Int, $financialTransactions_first: Int, $returnOrders_first: Int, $ref: String!, $retailerId: ID!) {\n orderById(id: $id) {\n id\n __typename\n ref\n status\n type\n createdOn\n updatedOn\n retailer {\n id\n tradingName\n }\n customer {\n id\n ref\n firstName\n lastName\n primaryEmail\n primaryPhone\n timezone\n }\n items(after: $items_after, first: $items_first) {\n edges {\n node {\n id\n ref\n price\n quantity\n totalPrice\n currency\n product {\n name\n }\n }\n }\n }\n fulfilmentChoice {\n id\n pickupLocationRef\n deliveryAddress {\n id\n name\n street\n city\n state\n postcode\n country\n longitude\n latitude\n companyName\n }\n deliveryInstruction\n deliveryType\n fulfilmentPrice\n }\n fulfilments(first: $fulfilments_first) {\n edges {\n node {\n id\n deliveryType\n status\n eta\n createdOn\n fromAddress {\n ref\n companyName\n name\n }\n toAddress {\n ref\n companyName\n name\n }\n }\n }\n }\n financialTransactions(first: $financialTransactions_first) {\n edges {\n node {\n ref\n createdOn\n status\n type\n cardType\n paymentMethod\n total\n }\n }\n }\n attributes {\n name\n type\n value\n }\n }\n comments(first: $comments_first, entityId: [$id], entityType: \"ORDER\") {\n edges {\n node {\n id\n text\n entityId\n entityType\n text\n createdOn\n updatedOn\n }\n }\n }\n returnOrders(\n first: $returnOrders_first\n order: {ref: $ref, retailer: {id: $retailerId}}\n ) {\n edges {\n node {\n id\n ref\n type\n status\n createdOn\n retailer {\n id\n }\n }\n }\n }\n}\n",
7 "variables": {
8 "id": "{{params.id}}",
9 "ref": "{{params.ref}}",
10 "retailerId": "{{params.retailerId}}",
11 "fulfilments_first": 100,
12 "items_first": 100,
13 "comments_first": 100,
14 "financialTransactions_first": 100,
15 "returnOrders_first": 100
16 }
17 },
18 "props": {
19 "title": "{{orderById.ref}} - {{orderById.status}}",
20 "actions": {
21 "primary": [
22 {
23 "type": "userAction",
24 "name": "ReturnOrder",
25 "overrides": {
26 "lodgedLocation": {
27 "label": "i18n:fc.om.orders.detail.userAction.returnOrder.lodgedLocation.label"
28 },
29 "pickupLocation": {
30 "label": "i18n:fc.om.orders.detail.userAction.returnOrder.pickupLocation.label"
31 }
32 }
33 }
34 ],
35 "secondary": [
36 {
37 "type": "mutation",
38 "label": "i18n:fc.om.orders.detail.userAction.addComment",
39 "name": "createComment",
40 "overrides": {
41 "entityId": {
42 "defaultValue": "{{orderById.id}}"
43 },
44 "entityType": {
45 "defaultValue": "i18n:fc.om.orders.index.userAction.entityType.order"
46 }
47 }
48 },
49 {
50 "type": "userAction",
51 "name": "OrderAddressChange",
52 "overrides": {
53 "deliveryAddress": {
54 "defaultValue": {
55 "companyName": "{{orderById.fulfilmentChoice.deliveryAddress.companyName}}",
56 "name": "{{orderById.fulfilmentChoice.deliveryAddress.name}}",
57 "street": "{{orderById.fulfilmentChoice.deliveryAddress.street}}",
58 "city": "{{orderById.fulfilmentChoice.deliveryAddress.city}}",
59 "postcode": "{{orderById.fulfilmentChoice.deliveryAddress.postcode}}",
60 "state": "{{orderById.fulfilmentChoice.deliveryAddress.state}}",
61 "country": "{{orderById.fulfilmentChoice.deliveryAddress.country}}"
62 }
63 }
64 }
65 }
66 ]
67 },
68 "backButtons": [
69 {
70 "path": "orders",
71 "menuLabel": "i18n:fc.om.orders.detail.breadcrumb.backToOrders"
72 },
73 {
74 "path": "customers/{{orderById.customer.id}}/{{orderById.customer.ref}}",
75 "menuLabel": "i18n:fc.om.orders.detail.breadcrumb.viewCustomer"
76 }
77 ]
78 },
Configure a summary card
You can configure a summary component and the field with the setting. Steps for configuring one can be found in the returns summary knowledge base guide
