Key Points

To aid with the picking process, Users can download a printable pick list that details the items required to complete the outstanding fulfilments. Customisable via a setting, the custom pick list allows developers to define their own fields and layouts to create a more efficient picking process.
Enabling the Custom Pick List

Steps

Enabling the Custom Pick List

This Custom Pick List setting can only be enabled if the `WAVE_RUBIXIFIED` setting is set to true. For more information, see Retailer Settings, then make sure the role has GraphQL Permissions.

Define the HTML structure

There is a base template to get started with. Please use your preferred HTML editor to edit the fields and layout to your desired outcome.

1<head>
2<link rel="preconnect" href="https://fonts.googleapis.com">
3<link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
4<link href="https://fonts.googleapis.com/css2?family=Libre+Barcode+39+Text&display=swap" rel="stylesheet">
5</head>
6<style>
7.CustomLabel .items th{
8padding: 0 3px 2px 3px;
9text-align:left;
10vertical-align:bottom;
11}
12.CustomLabel .items td{
13padding: 5px 4px;
14font-size: 12px;
15width: 32px;
16}
17.CustomLabel .items div.qty{
18text-align: center;
19border-radius: 50%;
20font-size: 16px;
21font-weight: bold;
22border: 1px solid black;
23width: 26px;
24height: 26px;
25line-height: 24px;
26}
27.CustomLabel .items div.qty.qty-1 {
28text-align: center;
29font-size: 16px;
30padding: 0;
31font-size: inherit;
32font-weight: normal;
33border: 0;
34}
35.CustomLabel .items td.product-image {
36width: 80px
37}
38.CustomLabel .items td.product-barcode {
39font-family: 'Libre Barcode 39 Text', cursive;
40font-size: 40px;
41}
42.CustomLabel .items div.soh{
43text-align: center;
44border-radius: 50%;
45font-size: 13px;
46font-weight: bold;
47border: 1px solid black;
48width: 30px;
49height: 30px;
50line-height: 27px;
51}
52</style>
53<div style="font-size:16px; padding:10px; text-align:end">{{dateFormat date "HH:mm:ss - DD/MM/YYYY"}}</div>
54<div style="text-align:center; font-size:20px; font-weight:bold">Custom Pick List - Wave: {{id}}</div>
55<div style="margin-top:50px">
56<table class="items">
57    <tr style="font-size:15px">
58        <th>Qty</th>
59        <th>Size</th>
60        <th>Colour</th>
61        <th>Description</th>
62        <th>Dept</th>
63        <th>Item Code</th>
64        <th>Image</th>
65        <th>Barcode</th>
66    </tr>
67    {{#items}}
68    <tr style="border-top: 1px solid silver">
69        <td>
70            <div class="qty qty-{{requiredQty}}">{{requiredQty}}</div>
71        </td>
72        <td style="text-align:center">{{sku.attributes.byName.Size}}</td>
73        <td>{{sku.attributes.byName.Colour}}</td>
74        <td>{{sku.name}}</td>
75        <td>{{sku.category}}</td>
76        <td>{{sku.skuRef}}</td>
77        <td class="product-image"><img src="{{sku.imageUrlRef}}" style="width:70px; height: 70px"/></td>
78        <td class="product-barcode">*{{sku.references.BARCODE}}*</td>
79    </tr>
80    {{/items}}
81</table>
82</div>
83<head>
84<link rel="preconnect" href="https://fonts.googleapis.com">
85<link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
86<link href="https://fonts.googleapis.com/css2?family=Libre+Barcode+39+Text&display=swap" rel="stylesheet">
87</head>
88<style>
89.CustomLabel .items th{
90padding: 0 3px 2px 3px;
91text-align:left;
92vertical-align:bottom;
93}
94.CustomLabel .items td{
95padding: 5px 4px;
96font-size: 12px;
97width: 32px;
98}
99.CustomLabel .items div.qty{
100text-align: center;
101border-radius: 50%;
102font-size: 16px;
103font-weight: bold;
104border: 1px solid black;
105width: 26px;
106height: 26px;
107line-height: 24px;
108}
109.CustomLabel .items div.qty.qty-1 {
110text-align: center;
111font-size: 16px;
112padding: 0;
113font-size: inherit;
114font-weight: normal;
115border: 0;
116}
117.CustomLabel .items td.product-image {
118width: 80px
119}
120.CustomLabel .items td.product-barcode {
121font-family: 'Libre Barcode 39 Text', cursive;
122font-size: 40px;
123}
124.CustomLabel .items div.soh{
125text-align: center;
126border-radius: 50%;
127font-size: 13px;
128font-weight: bold;
129border: 1px solid black;
130width: 30px;
131height: 30px;
132line-height: 27px;
133}
134</style>
135<div style="font-size:16px; padding:10px; text-align:end">{{dateFormat date "HH:mm:ss - DD/MM/YYYY"}}</div>
136<div style="text-align:center; font-size:20px; font-weight:bold">Custom Pick List - Wave: {{id}}</div>
137<div style="margin-top:50px">
138<table class="items">
139    <tr style="font-size:15px">
140        <th>Qty</th>
141        <th>Size</th>
142        <th>Colour</th>
143        <th>Description</th>
144        <th>Dept</th>
145        <th>Item Code</th>
146        <th>Image</th>
147        <th>Barcode</th>
148    </tr>
149    {{#items}}
150    <tr style="border-top: 1px solid silver">
151        <td>
152            <div class="qty qty-{{requiredQty}}">{{requiredQty}}</div>
153        </td>
154        <td style="text-align:center">{{sku.attributes.byName.Size}}</td>
155        <td>{{sku.attributes.byName.Colour}}</td>
156        <td>{{sku.name}}</td>
157        <td>{{sku.category}}</td>
158        <td>{{sku.skuRef}}</td>
159        <td class="product-image"><img src="{{sku.imageUrlRef}}" style="width:70px; height: 70px"/></td>
160        <td class="product-barcode">*{{sku.references.BARCODE}}*</td>
161    </tr>
162    {{/items}}
163</table>
164</div>

Choose from the supported fields

Field	Description
date	The current date
id	The waveID
sku.name	The product name in the GraphQL schema (Deprecated)
sku.category	The `product.categories.edges.node.name` in the GraphQL schema
sku.image.UrlRef	Taken from the products attributes, given there is one that matches name=’imageUrl’
sku.skuRef	The `product.ref` in the GraphQL schema
sku.productRef	The 1product.name` in the GraphQL schema
sku.catalogueRef	The `roduct.catalogue.ref` in the GraphQL schema
sku.onHand	The inventory of the item taken from `virtualPositions(productRef: $ref, groupRef: $groupRef, type: "BASE", status: "ACTIVE")`
sku.orderPrice	Given it exists, the first `product.prices`
sku.orderPriceWithTax	Given it exists, the first in `product.prices`
sku.references.BARCODE	Given it exists, the value of `product.gtin` (Will be N/A if no value exists)
sku.attributes	An array of all the `product.attributes`

Note

If you want to use a particular attribute, you can do so, by appending “byName.“ (case sensitive). For example:`sku.attributes.byName.Colour`.

Add the supported fields

To iterate over the array the following notation is used `{{#<field>}} ... iteration happens here... {{/<field>}}`.For example:

1<table class="items">
2   <tr class="table-headers">
3      <th>SKU</th>
4      <th>Name</th>
5      <th>Colour</th>
6   </tr>
7   {{#items}}
8   <tr class="table-values">
9      <td>{{sku.skuRef}}</td>
10      <td>{{sku.name}}</td>
11      <td>{{sku.attributes.byName.Colour}}</td>
12   </tr>
13   {{/items}}
14</table>

Adding an item barcode

You will notice that the base template has made inclusions for adding item barcodes out of the box, however please note the following for reference:Barcode rendering is achieved using the following Google Font.It's a requirement of the font to surround the barcode with: `*<Barcode>*.`For example: `<td class="product-barcode">*{{sku.references.BARCODE}}*</td>`

Create a setting PICK_N_PACK_CUSTOM_PICK_LIST

Name	PICK_N_PACK_CUSTOM_PICK_LIST
Value type	`LOB`
LOB value	`<..The HTML template, from Step 1..>`
Context	`RETAILER -or- ACCOUNT`
Context ID	`<RetailerID> -or- 0`

Configure the Waves fragment to include the “Custom Pick List“ button

If the Waves fragment has not been configured previously then you will first need to get the content of the baseline waves fragment. Otherwise, if you have already configured the waves fragment on your account, then get the content from your account settings instead.Once you have accessed the baseline waves fragment, copy the content into your preferred text editor.Define the following component to the first step of the wizard (PICK stage), just below the component `fc.button.print.pick`

1{
2    "component": "fc.button.print.pick",
3    "props": {
4        "label": "i18n:fc.sf.ui.waves.detail.action.pickList.custom.label",
5        "setting": "PICK_N_PACK_CUSTOM_PICK_LIST",
6        "behavior":"print"
7    }
8}

Make sure the JSON is validated.

Note

`behavior` prop can contain 3 values. Details about this property can be found in the print component.

Update the Waves fragment setting on your account with your new file

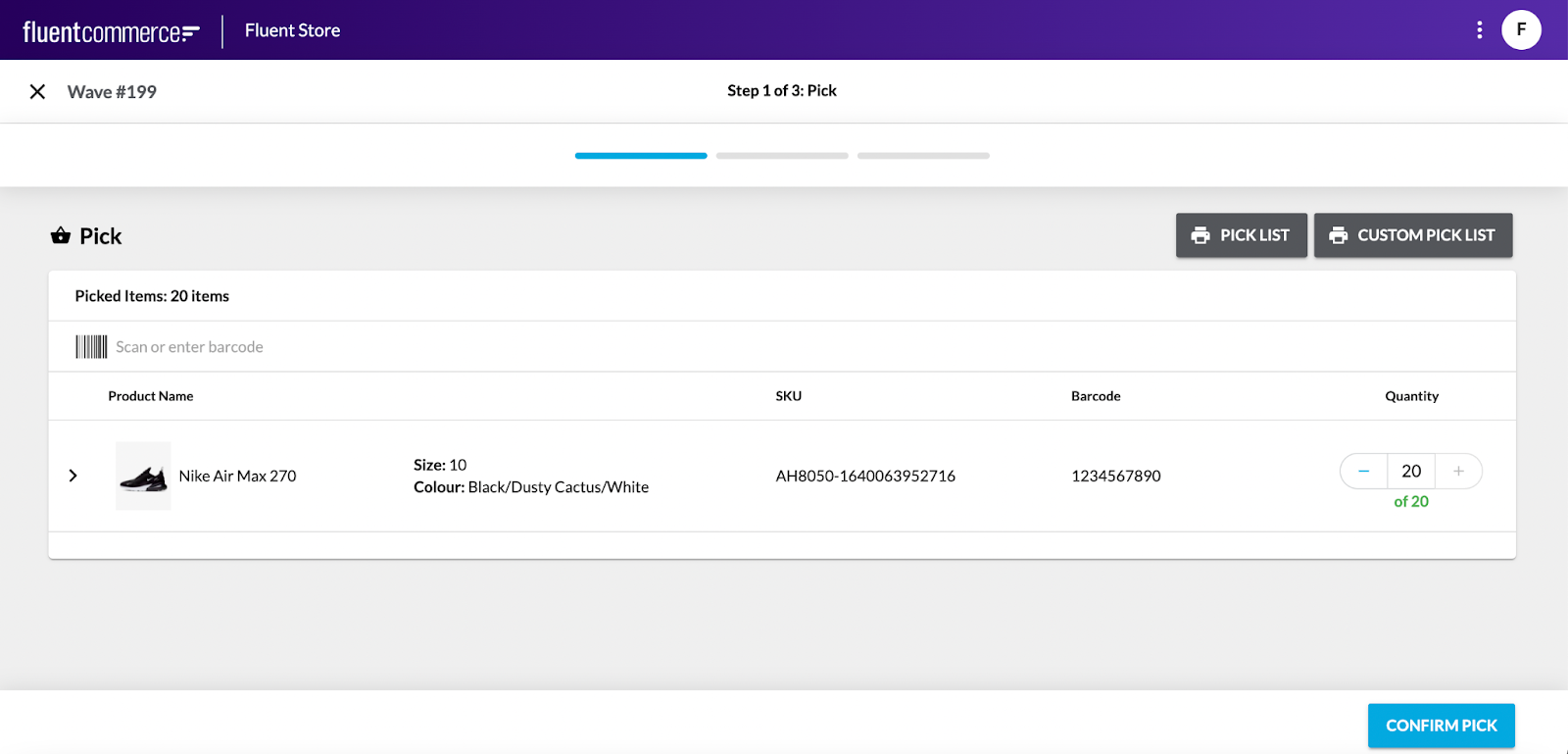

Once you have successfully updated the waves fragment with the Custom Pick List button, now create/ update the waves fragment setting on your account. Manifest documents should be stored as a JSON Setting at the Account context.You can now log on to Fluent Store with your location username and password. Select a Wave in the status “PICK” or Create a new Wave. You should then be able to see the “Custom Pick List” button on the PICK step of the Wave.

Note

For best results, when setting printer options, we recommend setting margins to None or Minimum and disabling the Background graphics option.We also recommend removing the `PICK LIST` button from the manifest if that is not required in your store setup.
