Author:

Kirill Gaiduk

Changed on:

2 Oct 2025

Key Points

Use the Responsive Sourcing Framework building blocks to manage your sourcing logic
Use the `createSourcingProfile` mutation to create new versions of Sourcing Profiles, which are immutable
Activate relevant Sourcing Profiles versions with the `activateSourcingProfile` mutation
Reference Sourcing Profiles within the corresponding Workflows

Prerequisites

Setting Up Region-Specific Sourcing Logic

Responsive Sourcing Framework Overview

Sourcing Profile GraphQL API Overview

Sourcing Utilities Overview

Steps

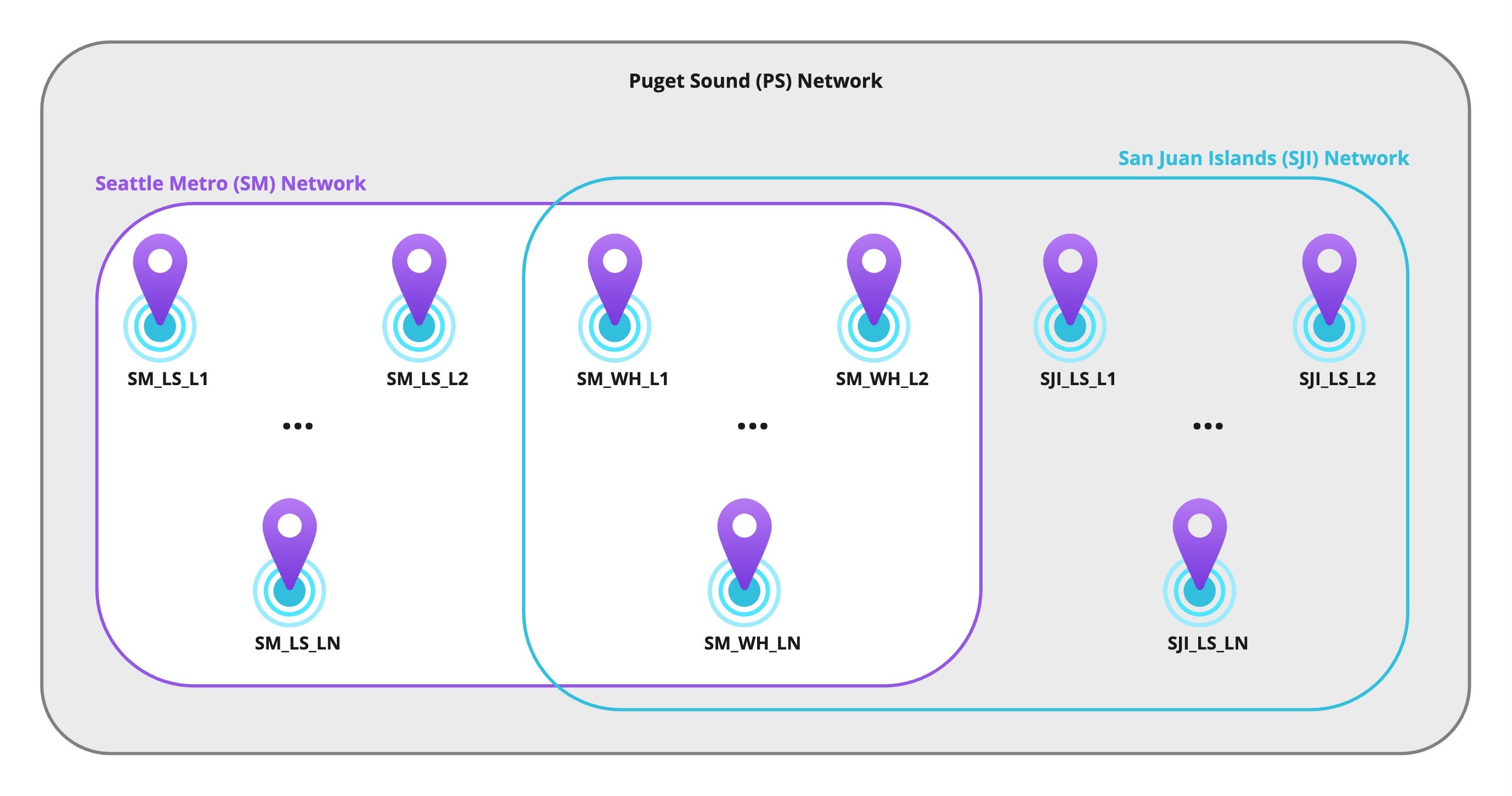

Create Networks

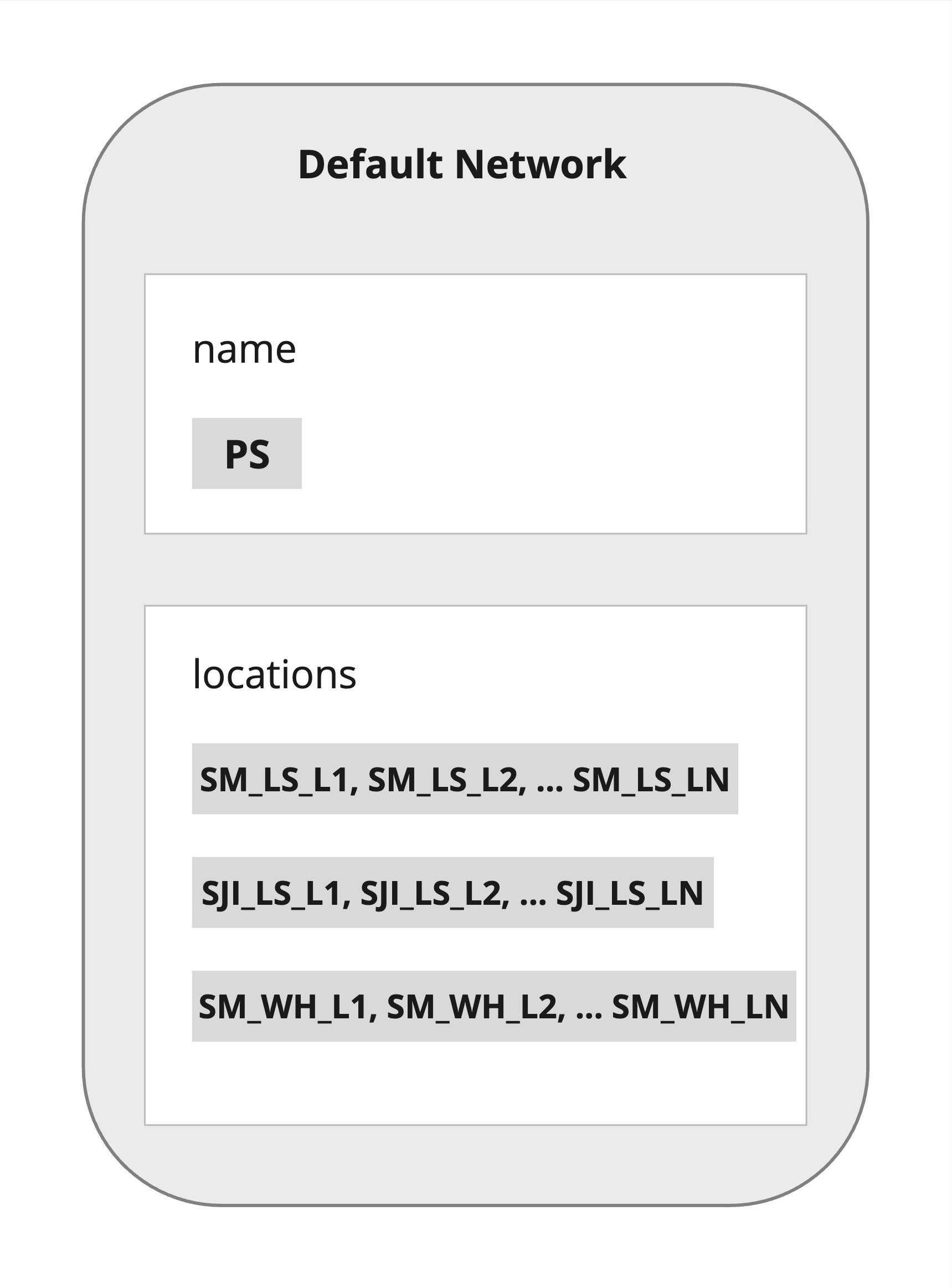

1. Use the `createNetwork` mutation to create the Puget Sound (`PS`) Default Network for your Sourcing Profile, including all the Locations from `SM_LS`, `SJI_LS`, `SM_WH` Networks.2. Configure your Network using the `CreateNetworkInput` fields: No alt provided

Use a unique `CreateNetworkInput.name` value (it is saved in the `Network.ref` field).
Use the `network` query to get the list of Location Ids by Network Reference.

3. Repeat the points 1 and 2 for the following Networks creation:

`SM` for Seattle Metro
`SJI` for for San Juan Islands

Create Sourcing Profile

1. Use the `createSourcingProfile` mutation to create a new Sourcing Profile, including its:

Primary and Fallback Sourcing Strategies with their
Sourcing Conditions and Criteria

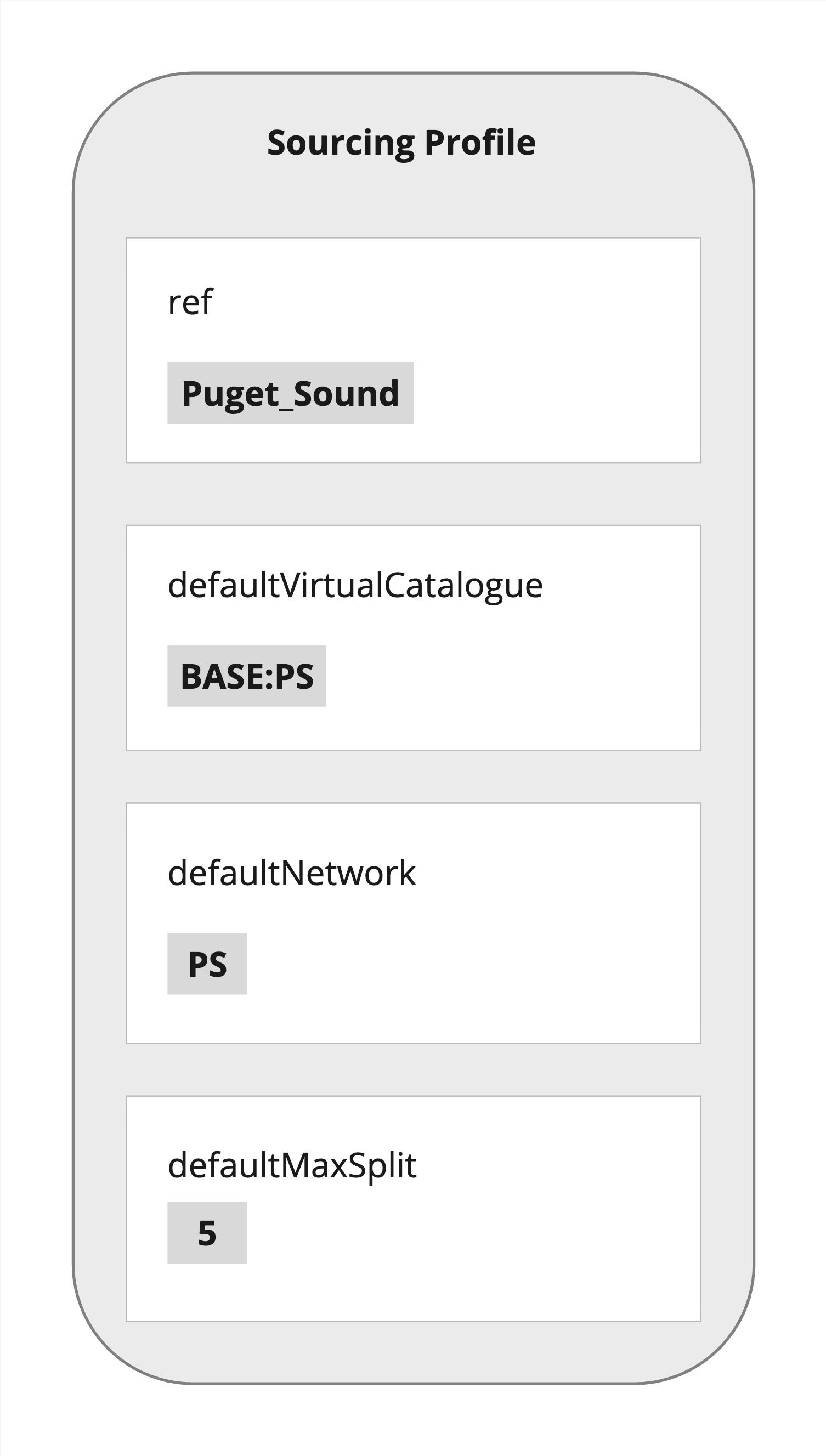

2. Configure your Sourcing Profile using the `CreateSourcingProfileInput` fields:

Use a unique Sourcing Profile `ref` for new Profile creation
Virtual Catalog, Network, and Max Split can be overridden at the Sourcing Strategy level (If not specified, the Profile’s default values will be inherited).

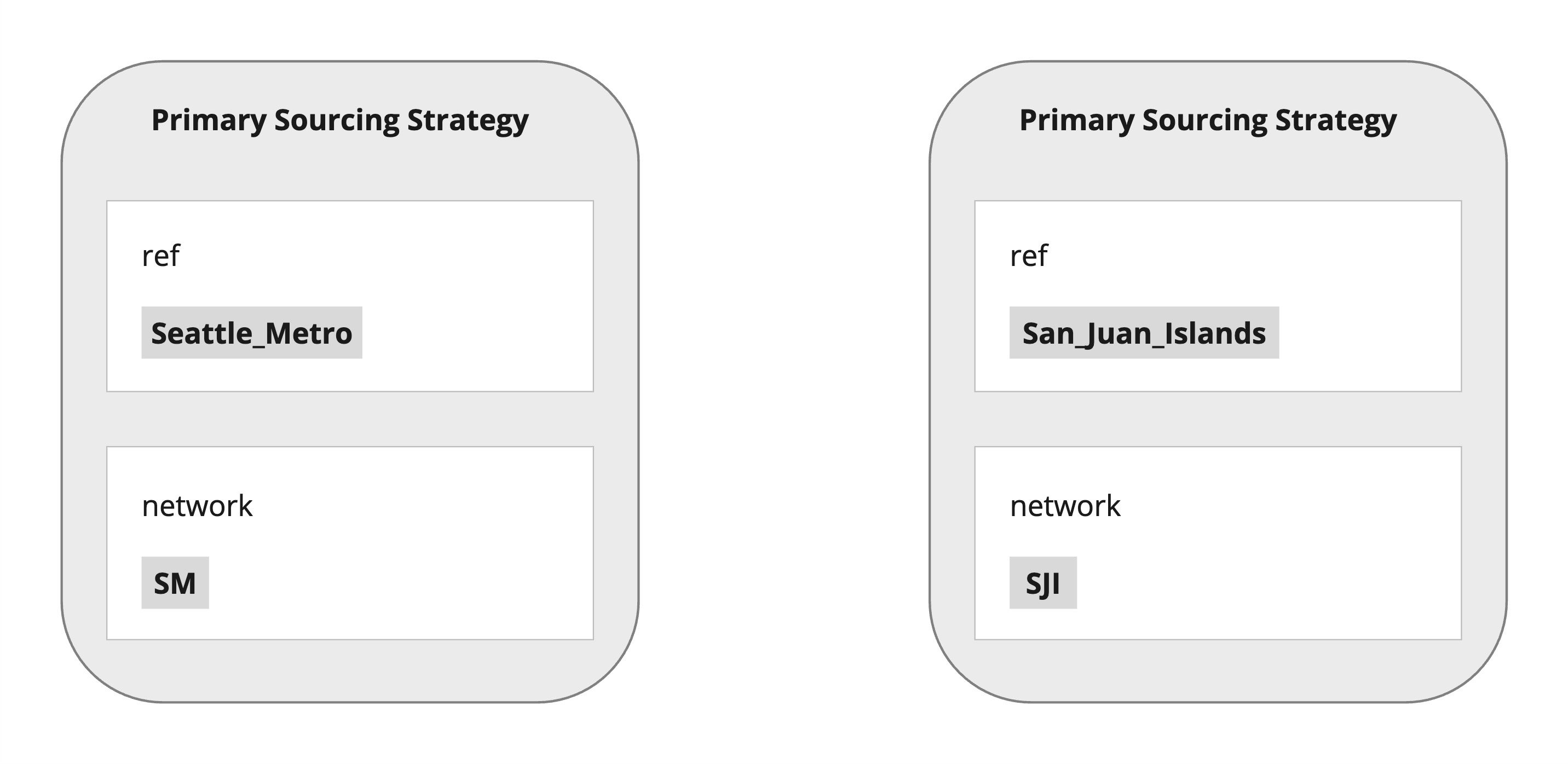

3. Configure your Primary Sourcing Strategies using the `CreateSourcingStrategyInput` fields: No alt provided

Seattle Metro Sourcing Strategy restricts available Locations to those within the Seattle Metro region (`SM` Network)
San Juan Islands Sourcing Strategy allows fulfillment from stores within the San Juan Islands region, as well as cross-region delivery from warehouses located in the Seattle Metro (`SJI` Network)
Both Strategies inherit the Virtual Catalog and Max Split defaults from the Sourcing Profile
The order of Sourcing Strategies in the `"sourcingStrategies": []` defines their `priority`

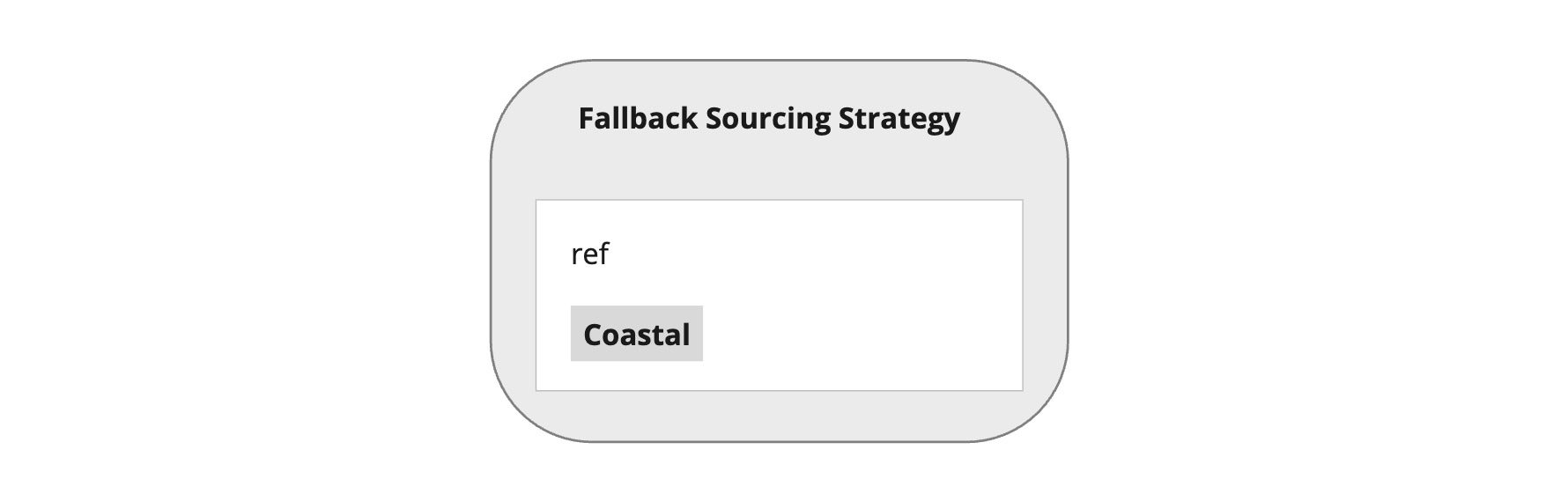

4. Configure your Fallback Sourcing Strategies using the `CreateSourcingFallbackStrategyInput` fields: No alt provided

Coastal Sourcing Strategy inherits the Sourcing Profile's Virtual Catalog, Network, and Max Split defaults

Reminder

You can:

keep both Primary and Fallback Sourcing Strategies in a single Sourcing Profile, or
create two separate Sourcing Profiles: one for Primary and another for Fallback Sourcing Strategies.

5. Define Sourcing Conditions using the `CreateSourcingConditionInput` fields: No alt provided

Destination sourcing restrictions are enforced based on Delivery Region Sourcing Conditions for Seattle Metro and San Juan Islands Sourcing Strategies
A Product-specific restriction applies to the Coastal Fallback Sourcing Strategy

6. Define Sourcing Criteria using the `CreateSourcingCriterionInput` fields: No alt provided

For Seattle Metro Strategy, Locations are ranked based on:
- Local stores preferred over warehouses
- Distance to the destination as a tie-breaker
For San Juan Islands Strategy, ranking is based on region-compliant Network prioritization
For Coastal Strategy:
- Limits Locations within a specified radius
- Allows partial Order fulfillment, prioritizing monetary value a Location can fulfill

Sample createSourcingProfile Payload

1mutation createSourcingProfile($input: CreateSourcingProfileInput) {
2    createSourcingProfile (input: $input) {
3        id
4        ref
5        version
6        versionComment
7        name
8        description
9        status
10        user {
11            id
12        }
13        createdOn
14        updatedOn
15        retailer {
16            id
17        }
18        defaultVirtualCatalogue {
19            ref
20        }
21        defaultNetwork {
22            ref
23        }
24        defaultMaxSplit
25        sourcingStrategies {
26            id
27            ref
28            sourcingProfile {
29                id
30            }
31            name
32            description
33            status
34            priority
35            createdOn
36            updatedOn
37            virtualCatalogue {
38                ref
39            }
40            network {
41                ref
42            }
43            maxSplit
44            sourcingConditions {
45                name
46                type
47                params
48            }
49            sourcingCriteria {
50                name
51                type
52                params
53            }
54        }
55        sourcingFallbackStrategies {
56            id
57            ref
58            sourcingProfile {
59                id
60            }
61            name
62            description
63            status
64            priority
65            createdOn
66            updatedOn
67            virtualCatalogue {
68                ref
69            }
70            network {
71                ref
72            }
73            maxSplit
74            sourcingConditions {
75                name
76                type
77                params
78            }
79            sourcingCriteria {
80                name
81                type
82                params
83            }
84        }
85    }
86}

1{
2  "input": {
3    "ref": "Puget_Sound",
4    "versionComment": "First version of Puget_Sound",
5    "name": "Puget_Sound",
6    "description": "Profile Description",
7    "retailer": {
8      "id": 1
9    },
10    "defaultVirtualCatalogue": {
11      "ref": "BASE:PS"
12    },
13    "defaultNetwork": {
14      "ref": "PS"
15    },
16    "defaultMaxSplit": 5,
17    "sourcingStrategies": [
18      {
19        "ref": "Seattle_Metro",
20        "name": "Seattle_Metro",
21        "description": "Seattle_Metro Sourcing Strategy",
22        "status": "ACTIVE",
23        "network": {
24          "ref": "SM"
25        },
26        "sourcingConditions": [
27          {
28            "name": "deliveryRegionIn",
29            "type": "fc.sourcing.condition.path",
30            "params": {
31              "path": "fulfilmentChoice.address.region",
32              "operator": "in",
33              "value": "Seattle Metro"
34            }
35          }
36        ],
37        "sourcingCriteria": [
38          {
39            "name": "networkPriority",
40            "type": "fc.sourcing.criterion.networkPriority",
41            "params": {
42              "value": [
43                "SM_LS",
44                "SM_WH"
45              ]
46            }
47          },
48          {
49            "name": "locationDistance",
50            "type": "fc.sourcing.criterion.locationDistance"
51          }
52        ]
53      },
54      {
55        "ref": "San_Juan_Islands",
56        "name": "San_Juan_Islands",
57        "description": "San_Juan_Islands Sourcing Strategy",
58        "status": "ACTIVE",
59        "network": {
60          "ref": "SJI"
61        },
62        "sourcingConditions": [
63          {
64            "name": "deliveryRegionIn",
65            "type": "fc.sourcing.condition.path",
66            "params": {
67              "path": "fulfilmentChoice.address.region",
68              "operator": "in",
69              "value": "San Juan Islands"
70            }
71          }
72        ],
73        "sourcingCriteria": [
74          {
75            "name": "networkPriority",
76            "type": "fc.sourcing.criterion.networkPriority",
77            "params": {
78              "value": [
79                "SJI_LS",
80                "SM_WH"
81              ]
82            }
83          },
84          {
85            "name": "locationDistance",
86            "type": "fc.sourcing.criterion.locationDistance"
87          }
88        ]
89      }
90    ],
91    "sourcingFallbackStrategies": [
92      {
93        "ref": "Coastal",
94        "name": "Coastal",
95        "description": "Coastal Strategy Description",
96        "status": "ACTIVE",
97        "sourcingConditions": [
98          {
99            "name": "allProductSizeIn",
100            "type": "fc.sourcing.condition.path",
101            "params": {
102              "path": "unfulfilledItems.product.attributes.byName.size",
103              "operator": "in",
104              "value": [
105                "Extra-Small",
106                "Small"
107              ],
108              "conditionScope": "ALL"
109            }
110          }
111        ],
112        "sourcingCriteria": [
113          {
114            "name": "locationDistanceExclusion",
115            "type": "fc.sourcing.criterion.locationDistanceExlusion",
116            "params": {
117              "value": 50,
118              "valueUnit": "miles"
119            }
120          },
121          {
122            "name": "orderValue",
123            "type": "fc.sourcing.criterion.orderValue"
124          }
125        ]
126      }
127    ]
128  }
129}

1{
2  "data": {
3    "createSourcingProfile": {
4      "id": "333",
5      "ref": "Puget_Sound",
6      "version": 1,
7      "versionComment": "First version of Puget_Sound",
8      "name": "Puget_Sound",
9      "description": "Profile Description",
10      "status": "ACTIVE",
11      "user": {
12        "id": "1302"
13      },
14      "createdOn": "2025-08-18T13:41:40.774Z",
15      "updatedOn": "2025-08-18T13:41:40.774Z",
16      "retailer": {
17        "id": "1"
18      },
19      "defaultVirtualCatalogue": {
20        "ref": "BASE:PS"
21      },
22      "defaultNetwork": {
23        "ref": "PS"
24      },
25      "defaultMaxSplit": 5,
26      "sourcingStrategies": [
27        {
28          "id": "516",
29          "ref": "Seattle_Metro",
30          "sourcingProfile": {
31            "id": "333"
32          },
33          "name": "Seattle_Metro",
34          "description": "Seattle_Metro Sourcing Strategy",
35          "status": "ACTIVE",
36          "priority": 1,
37          "createdOn": "2025-08-18T13:41:40.787Z",
38          "updatedOn": "2025-08-18T13:41:40.787Z",
39          "virtualCatalogue": null,
40          "network": {
41            "ref": "SM"
42          },
43          "maxSplit": null,
44          "sourcingConditions": [
45            {
46              "name": "deliveryRegionIn",
47              "type": "fc.sourcing.condition.path",
48              "params": {
49                "path": "fulfilmentChoice.address.region",
50                "value": "Seattle Metro",
51                "operator": "in"
52              }
53            }
54          ],
55          "sourcingCriteria": [
56            {
57              "name": "networkPriority",
58              "type": "fc.sourcing.criterion.networkPriority",
59              "params": {
60                "value": [
61                  "SM_LS",
62                  "SM_WH"
63                ]
64              }
65            },
66            {
67              "name": "locationDistance",
68              "type": "fc.sourcing.criterion.locationDistance",
69              "params": null
70            }
71          ]
72        },
73        {
74          "id": "517",
75          "ref": "San_Juan_Islands",
76          "sourcingProfile": {
77            "id": "333"
78          },
79          "name": "San_Juan_Islands",
80          "description": "San_Juan_Islands Sourcing Strategy",
81          "status": "ACTIVE",
82          "priority": 2,
83          "createdOn": "2025-08-18T13:41:40.782Z",
84          "updatedOn": "2025-08-18T13:41:40.782Z",
85          "virtualCatalogue": null,
86          "network": {
87            "ref": "SJI"
88          },
89          "maxSplit": null,
90          "sourcingConditions": [
91            {
92              "name": "deliveryRegionIn",
93              "type": "fc.sourcing.condition.path",
94              "params": {
95                "path": "fulfilmentChoice.address.region",
96                "value": "San Juan Islands",
97                "operator": "in"
98              }
99            }
100          ],
101          "sourcingCriteria": [
102            {
103              "name": "networkPriority",
104              "type": "fc.sourcing.criterion.networkPriority",
105              "params": {
106                "value": [
107                  "SJI_LS",
108                  "SM_WH"
109                ]
110              }
111            },
112            {
113              "name": "locationDistance",
114              "type": "fc.sourcing.criterion.locationDistance",
115              "params": null
116            }
117          ]
118        }
119      ],
120      "sourcingFallbackStrategies": [
121        {
122          "id": "315",
123          "ref": "Coastal",
124          "sourcingProfile": {
125            "id": "333"
126          },
127          "name": "Coastal",
128          "description": "Coastal Strategy Description",
129          "status": "ACTIVE",
130          "priority": 1,
131          "createdOn": "2025-08-18T13:41:40.781Z",
132          "updatedOn": "2025-08-18T13:41:40.781Z",
133          "virtualCatalogue": null,
134          "network": null,
135          "maxSplit": null,
136          "sourcingConditions": [
137            {
138              "name": "allProductSizeIn",
139              "type": "fc.sourcing.condition.path",
140              "params": {
141                "path": "unfulfilledItems.product.attributes.byName.size",
142                "value": [
143                  "Extra-Small",
144                  "Small"
145                ],
146                "operator": "in",
147                "conditionScope": "ALL"
148              }
149            }
150          ],
151          "sourcingCriteria": [
152            {
153              "name": "locationDistanceExclusion",
154              "type": "fc.sourcing.criterion.locationDistanceExlusion",
155              "params": {
156                "value": 50,
157                "valueUnit": "miles"
158              }
159            },
160            {
161              "name": "orderValue",
162              "type": "fc.sourcing.criterion.orderValue",
163              "params": null
164            }
165          ]
166        }
167      ]
168    }
169  }
170}

Verify your Sourcing Profile

1. Use the `sourcingProfile` query to retrieve a Sourcing Profile by its `ref`.

Sample sourcingProfile Payload

1query sourcingProfile($ref: String!) {
2    sourcingProfile(ref: $ref) {
3        id
4        ref
5        version
6        versionComment
7        name
8        description
9        status
10        user {
11            id
12        }
13        createdOn
14        updatedOn
15        retailer {
16            id
17        }
18        defaultVirtualCatalogue {
19            ref
20        }
21        defaultNetwork {
22            ref
23        }
24        defaultMaxSplit
25        sourcingStrategies {
26            id
27            ref
28            sourcingProfile {
29                id
30            }
31            name
32            description
33            status
34            priority
35            createdOn
36            updatedOn
37            virtualCatalogue {
38                ref
39            }
40            network {
41                ref
42            }
43            maxSplit
44            sourcingConditions {
45                name
46                type
47                params
48            }
49            sourcingCriteria {
50                name
51                type
52                params
53            }
54        }
55        sourcingFallbackStrategies {
56            id
57            ref
58            sourcingProfile {
59                id
60            }
61            name
62            description
63            status
64            priority
65            createdOn
66            updatedOn
67            virtualCatalogue {
68                ref
69            }
70            network {
71                ref
72            }
73            maxSplit
74            sourcingConditions {
75                name
76                type
77                params
78            }
79            sourcingCriteria {
80                name
81                type
82                params
83            }
84        }
85    }
86}

1{
2  "ref": "Puget_Sound"
3}

1{
2  "data": {
3    "sourcingProfile": {
4      "id": "333",
5      "ref": "Puget_Sound",
6      "version": 1,
7      "versionComment": "First version of Puget_Sound",
8      "name": "Puget_Sound",
9      "description": "Profile Description",
10      "status": "ACTIVE",
11      "user": {
12        "id": "1302"
13      },
14      "createdOn": "2025-08-18T13:41:40.774Z",
15      "updatedOn": "2025-08-18T13:41:40.774Z",
16      "retailer": {
17        "id": "1"
18      },
19      "defaultVirtualCatalogue": {
20        "ref": "BASE:PS"
21      },
22      "defaultNetwork": {
23        "ref": "PS"
24      },
25      "defaultMaxSplit": 5,
26      "sourcingStrategies": [
27        {
28          "id": "516",
29          "ref": "Seattle_Metro",
30          "sourcingProfile": {
31            "id": "333"
32          },
33          "name": "Seattle_Metro",
34          "description": "Seattle_Metro Sourcing Strategy",
35          "status": "ACTIVE",
36          "priority": 1,
37          "createdOn": "2025-08-18T13:41:40.787Z",
38          "updatedOn": "2025-08-18T13:41:40.787Z",
39          "virtualCatalogue": null,
40          "network": {
41            "ref": "SM"
42          },
43          "maxSplit": null,
44          "sourcingConditions": [
45            {
46              "name": "deliveryRegionIn",
47              "type": "fc.sourcing.condition.path",
48              "params": {
49                "path": "fulfilmentChoice.address.region",
50                "value": "Seattle Metro",
51                "operator": "in"
52              }
53            }
54          ],
55          "sourcingCriteria": [
56            {
57              "name": "networkPriority",
58              "type": "fc.sourcing.criterion.networkPriority",
59              "params": {
60                "value": [
61                  "SM_LS",
62                  "SM_WH"
63                ]
64              }
65            },
66            {
67              "name": "locationDistance",
68              "type": "fc.sourcing.criterion.locationDistance",
69              "params": null
70            }
71          ]
72        },
73        {
74          "id": "517",
75          "ref": "San_Juan_Islands",
76          "sourcingProfile": {
77            "id": "333"
78          },
79          "name": "San_Juan_Islands",
80          "description": "San_Juan_Islands Sourcing Strategy",
81          "status": "ACTIVE",
82          "priority": 2,
83          "createdOn": "2025-08-18T13:41:40.782Z",
84          "updatedOn": "2025-08-18T13:41:40.782Z",
85          "virtualCatalogue": null,
86          "network": {
87            "ref": "SJI"
88          },
89          "maxSplit": null,
90          "sourcingConditions": [
91            {
92              "name": "deliveryRegionIn",
93              "type": "fc.sourcing.condition.path",
94              "params": {
95                "path": "fulfilmentChoice.address.region",
96                "value": "San Juan Islands",
97                "operator": "in"
98              }
99            }
100          ],
101          "sourcingCriteria": [
102            {
103              "name": "networkPriority",
104              "type": "fc.sourcing.criterion.networkPriority",
105              "params": {
106                "value": [
107                  "SJI_LS",
108                  "SM_WH"
109                ]
110              }
111            },
112            {
113              "name": "locationDistance",
114              "type": "fc.sourcing.criterion.locationDistance",
115              "params": null
116            }
117          ]
118        }
119      ],
120      "sourcingFallbackStrategies": [
121        {
122          "id": "315",
123          "ref": "Coastal",
124          "sourcingProfile": {
125            "id": "333"
126          },
127          "name": "Coastal",
128          "description": "Coastal Strategy Description",
129          "status": "ACTIVE",
130          "priority": 1,
131          "createdOn": "2025-08-18T13:41:40.781Z",
132          "updatedOn": "2025-08-18T13:41:40.781Z",
133          "virtualCatalogue": null,
134          "network": null,
135          "maxSplit": null,
136          "sourcingConditions": [
137            {
138              "name": "allProductSizeIn",
139              "type": "fc.sourcing.condition.path",
140              "params": {
141                "path": "unfulfilledItems.product.attributes.byName.size",
142                "value": [
143                  "Extra-Small",
144                  "Small"
145                ],
146                "operator": "in",
147                "conditionScope": "ALL"
148              }
149            }
150          ],
151          "sourcingCriteria": [
152            {
153              "name": "locationDistanceExclusion",
154              "type": "fc.sourcing.criterion.locationDistanceExlusion",
155              "params": {
156                "value": 50,
157                "valueUnit": "miles"
158              }
159            },
160            {
161              "name": "orderValue",
162              "type": "fc.sourcing.criterion.orderValue",
163              "params": null
164            }
165          ]
166        }
167      ]
168    }
169  }
170}

2. Ensure the Sourcing Profile configuration is correct. Verify values for:

The Sourcing Profile itself
Primary Sourcing Strategy(ies)
Fallback Sourcing Strategy(ies)
Sourcing Condition(s)
Sourcing Criterion(a)

3. (Optional) Use the `createSourcingProfile` mutation to make corrections if needed.4. (Optional) Use the `activateSourcingProfile` mutation to activate the updated version after making corrections.

Sample activateSourcingProfile Payload

1mutation activateSourcingProfile($input: ActivateSourcingProfileInput) {
2    activateSourcingProfile(input: $input) {
3        ref
4        version
5        status
6    }
7}

1{
2  "input": {
3    "ref": "Puget_Sound",
4    "version": 2
5  }
6}

1{
2  "data": {
3    "activateSourcingProfile": {
4      "ref": "Puget_Sound",
5      "version": 2,
6      "status": "ACTIVE"
7    }
8  }
9}

Reminder

A newly created Sourcing Profile is assigned version `1` and the `ACTIVE` status
Use the `createSourcingProfile` mutation to update your Sourcing Profile, including its:
- Primary and Fallback Sourcing Strategies with their
- Sourcing Conditions and Criteria
Each update creates a new record with:
- `DRAFT` status
- Incremented version
Use the `activateSourcingProfile` mutation to activate a specific version:
- Updates the current record (no new record is created)
- Sets the status to `ACTIVE`

For more details, refer to the Sourcing Profile GraphQL API Overview.

Update your Workflow

Ensure the Sourcing Profile `ref` is specified in the `sourcingProfileRef` parameter for the following Rules:

1{
2  "name": "SourceOrder",
3  "description": "Creates fulfilments at a location based on sourcing profile. If there are unfulfilled items in the order, trigger an event for sourcing from another location to fulfil remaining items",
4  "type": "ORDER",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.CreateFulfilmentWithSourcingProfile",
9      "props": {
10        "sourcingProfileRef": "Puget_Sound"
11      }
12    },
13    {
14      "name": "[[account.id]].order.CreatePartialFulfilmentWithSourcingProfile",
15      "props": {
16        "sourcingProfileRef": "Puget_Sound"
17      }
18    },
19    {
20      "name": "{{account}}.order.CreateRejectedFulfilment",
21      "props": {
22        "systemRejectedLocationRef": "RJT_PS"
23      }
24    }
25  ],
26  "triggers": [
27    {
28      "status": "BOOKED"
29    },
30    {
31      "status": "PICK_PACK"
32    }
33  ],
34  "userActions": []
35}

Related artifacts

fc.rubix.order.sourcing.conditions

fc.rubix.order.sourcing.criteria

CreateFulfilmentWithSourcingProfile

CreatePartialFulfilmentWithSourcingProfile

CreateRejectedFulfilment

Related content

Kirill Gaiduk

Knowledge Tracks Related To This Topic

All about Responsive Sourcing

Responsive Sourcing Framework Overview

How Sourcing Profile GraphQL API works

How Sourcing Utilities work

How Sourcing Conditions work

How Sourcing Criteria work

Setting Up Region-Specific Sourcing Logic

Configure Multi-Region Sourcing Logic

Setting Up Country-Specific Sourcing Logic

Configure Multi-Country Sourcing Logic

Setting Up Customer-Specific Sourcing Logic

Configure Multi-Customer-Tier Sourcing Logic

Sourcing Profiles Interface

Configuring Profiles and Sourcing Strategies: A Step-by-Step Guide

1mutation createSourcingProfile($input: CreateSourcingProfileInput) {
2    createSourcingProfile (input: $input) {
3        id
4        ref
5        version
6        versionComment
7        name
8        description
9        status
10        user {
11            id
12        }
13        createdOn
14        updatedOn
15        retailer {
16            id
17        }
18        defaultVirtualCatalogue {
19            ref
20        }
21        defaultNetwork {
22            ref
23        }
24        defaultMaxSplit
25        sourcingStrategies {
26            id
27            ref
28            sourcingProfile {
29                id
30            }
31            name
32            description
33            status
34            priority
35            createdOn
36            updatedOn
37            virtualCatalogue {
38                ref
39            }
40            network {
41                ref
42            }
43            maxSplit
44            sourcingConditions {
45                name
46                type
47                params
48            }
49            sourcingCriteria {
50                name
51                type
52                params
53            }
54        }
55        sourcingFallbackStrategies {
56            id
57            ref
58            sourcingProfile {
59                id
60            }
61            name
62            description
63            status
64            priority
65            createdOn
66            updatedOn
67            virtualCatalogue {
68                ref
69            }
70            network {
71                ref
72            }
73            maxSplit
74            sourcingConditions {
75                name
76                type
77                params
78            }
79            sourcingCriteria {
80                name
81                type
82                params
83            }
84        }
85    }
86}

1{
2  "input": {
3    "ref": "Puget_Sound",
4    "versionComment": "First version of Puget_Sound",
5    "name": "Puget_Sound",
6    "description": "Profile Description",
7    "retailer": {
8      "id": 1
9    },
10    "defaultVirtualCatalogue": {
11      "ref": "BASE:PS"
12    },
13    "defaultNetwork": {
14      "ref": "PS"
15    },
16    "defaultMaxSplit": 5,
17    "sourcingStrategies": [
18      {
19        "ref": "Seattle_Metro",
20        "name": "Seattle_Metro",
21        "description": "Seattle_Metro Sourcing Strategy",
22        "status": "ACTIVE",
23        "network": {
24          "ref": "SM"
25        },
26        "sourcingConditions": [
27          {
28            "name": "deliveryRegionIn",
29            "type": "fc.sourcing.condition.path",
30            "params": {
31              "path": "fulfilmentChoice.address.region",
32              "operator": "in",
33              "value": "Seattle Metro"
34            }
35          }
36        ],
37        "sourcingCriteria": [
38          {
39            "name": "networkPriority",
40            "type": "fc.sourcing.criterion.networkPriority",
41            "params": {
42              "value": [
43                "SM_LS",
44                "SM_WH"
45              ]
46            }
47          },
48          {
49            "name": "locationDistance",
50            "type": "fc.sourcing.criterion.locationDistance"
51          }
52        ]
53      },
54      {
55        "ref": "San_Juan_Islands",
56        "name": "San_Juan_Islands",
57        "description": "San_Juan_Islands Sourcing Strategy",
58        "status": "ACTIVE",
59        "network": {
60          "ref": "SJI"
61        },
62        "sourcingConditions": [
63          {
64            "name": "deliveryRegionIn",
65            "type": "fc.sourcing.condition.path",
66            "params": {
67              "path": "fulfilmentChoice.address.region",
68              "operator": "in",
69              "value": "San Juan Islands"
70            }
71          }
72        ],
73        "sourcingCriteria": [
74          {
75            "name": "networkPriority",
76            "type": "fc.sourcing.criterion.networkPriority",
77            "params": {
78              "value": [
79                "SJI_LS",
80                "SM_WH"
81              ]
82            }
83          },
84          {
85            "name": "locationDistance",
86            "type": "fc.sourcing.criterion.locationDistance"
87          }
88        ]
89      }
90    ],
91    "sourcingFallbackStrategies": [
92      {
93        "ref": "Coastal",
94        "name": "Coastal",
95        "description": "Coastal Strategy Description",
96        "status": "ACTIVE",
97        "sourcingConditions": [
98          {
99            "name": "allProductSizeIn",
100            "type": "fc.sourcing.condition.path",
101            "params": {
102              "path": "unfulfilledItems.product.attributes.byName.size",
103              "operator": "in",
104              "value": [
105                "Extra-Small",
106                "Small"
107              ],
108              "conditionScope": "ALL"
109            }
110          }
111        ],
112        "sourcingCriteria": [
113          {
114            "name": "locationDistanceExclusion",
115            "type": "fc.sourcing.criterion.locationDistanceExlusion",
116            "params": {
117              "value": 50,
118              "valueUnit": "miles"
119            }
120          },
121          {
122            "name": "orderValue",
123            "type": "fc.sourcing.criterion.orderValue"
124          }
125        ]
126      }
127    ]
128  }
129}

1{
2  "data": {
3    "createSourcingProfile": {
4      "id": "333",
5      "ref": "Puget_Sound",
6      "version": 1,
7      "versionComment": "First version of Puget_Sound",
8      "name": "Puget_Sound",
9      "description": "Profile Description",
10      "status": "ACTIVE",
11      "user": {
12        "id": "1302"
13      },
14      "createdOn": "2025-08-18T13:41:40.774Z",
15      "updatedOn": "2025-08-18T13:41:40.774Z",
16      "retailer": {
17        "id": "1"
18      },
19      "defaultVirtualCatalogue": {
20        "ref": "BASE:PS"
21      },
22      "defaultNetwork": {
23        "ref": "PS"
24      },
25      "defaultMaxSplit": 5,
26      "sourcingStrategies": [
27        {
28          "id": "516",
29          "ref": "Seattle_Metro",
30          "sourcingProfile": {
31            "id": "333"
32          },
33          "name": "Seattle_Metro",
34          "description": "Seattle_Metro Sourcing Strategy",
35          "status": "ACTIVE",
36          "priority": 1,
37          "createdOn": "2025-08-18T13:41:40.787Z",
38          "updatedOn": "2025-08-18T13:41:40.787Z",
39          "virtualCatalogue": null,
40          "network": {
41            "ref": "SM"
42          },
43          "maxSplit": null,
44          "sourcingConditions": [
45            {
46              "name": "deliveryRegionIn",
47              "type": "fc.sourcing.condition.path",
48              "params": {
49                "path": "fulfilmentChoice.address.region",
50                "value": "Seattle Metro",
51                "operator": "in"
52              }
53            }
54          ],
55          "sourcingCriteria": [
56            {
57              "name": "networkPriority",
58              "type": "fc.sourcing.criterion.networkPriority",
59              "params": {
60                "value": [
61                  "SM_LS",
62                  "SM_WH"
63                ]
64              }
65            },
66            {
67              "name": "locationDistance",
68              "type": "fc.sourcing.criterion.locationDistance",
69              "params": null
70            }
71          ]
72        },
73        {
74          "id": "517",
75          "ref": "San_Juan_Islands",
76          "sourcingProfile": {
77            "id": "333"
78          },
79          "name": "San_Juan_Islands",
80          "description": "San_Juan_Islands Sourcing Strategy",
81          "status": "ACTIVE",
82          "priority": 2,
83          "createdOn": "2025-08-18T13:41:40.782Z",
84          "updatedOn": "2025-08-18T13:41:40.782Z",
85          "virtualCatalogue": null,
86          "network": {
87            "ref": "SJI"
88          },
89          "maxSplit": null,
90          "sourcingConditions": [
91            {
92              "name": "deliveryRegionIn",
93              "type": "fc.sourcing.condition.path",
94              "params": {
95                "path": "fulfilmentChoice.address.region",
96                "value": "San Juan Islands",
97                "operator": "in"
98              }
99            }
100          ],
101          "sourcingCriteria": [
102            {
103              "name": "networkPriority",
104              "type": "fc.sourcing.criterion.networkPriority",
105              "params": {
106                "value": [
107                  "SJI_LS",
108                  "SM_WH"
109                ]
110              }
111            },
112            {
113              "name": "locationDistance",
114              "type": "fc.sourcing.criterion.locationDistance",
115              "params": null
116            }
117          ]
118        }
119      ],
120      "sourcingFallbackStrategies": [
121        {
122          "id": "315",
123          "ref": "Coastal",
124          "sourcingProfile": {
125            "id": "333"
126          },
127          "name": "Coastal",
128          "description": "Coastal Strategy Description",
129          "status": "ACTIVE",
130          "priority": 1,
131          "createdOn": "2025-08-18T13:41:40.781Z",
132          "updatedOn": "2025-08-18T13:41:40.781Z",
133          "virtualCatalogue": null,
134          "network": null,
135          "maxSplit": null,
136          "sourcingConditions": [
137            {
138              "name": "allProductSizeIn",
139              "type": "fc.sourcing.condition.path",
140              "params": {
141                "path": "unfulfilledItems.product.attributes.byName.size",
142                "value": [
143                  "Extra-Small",
144                  "Small"
145                ],
146                "operator": "in",
147                "conditionScope": "ALL"
148              }
149            }
150          ],
151          "sourcingCriteria": [
152            {
153              "name": "locationDistanceExclusion",
154              "type": "fc.sourcing.criterion.locationDistanceExlusion",
155              "params": {
156                "value": 50,
157                "valueUnit": "miles"
158              }
159            },
160            {
161              "name": "orderValue",
162              "type": "fc.sourcing.criterion.orderValue",
163              "params": null
164            }
165          ]
166        }
167      ]
168    }
169  }
170}

1query sourcingProfile($ref: String!) {
2    sourcingProfile(ref: $ref) {
3        id
4        ref
5        version
6        versionComment
7        name
8        description
9        status
10        user {
11            id
12        }
13        createdOn
14        updatedOn
15        retailer {
16            id
17        }
18        defaultVirtualCatalogue {
19            ref
20        }
21        defaultNetwork {
22            ref
23        }
24        defaultMaxSplit
25        sourcingStrategies {
26            id
27            ref
28            sourcingProfile {
29                id
30            }
31            name
32            description
33            status
34            priority
35            createdOn
36            updatedOn
37            virtualCatalogue {
38                ref
39            }
40            network {
41                ref
42            }
43            maxSplit
44            sourcingConditions {
45                name
46                type
47                params
48            }
49            sourcingCriteria {
50                name
51                type
52                params
53            }
54        }
55        sourcingFallbackStrategies {
56            id
57            ref
58            sourcingProfile {
59                id
60            }
61            name
62            description
63            status
64            priority
65            createdOn
66            updatedOn
67            virtualCatalogue {
68                ref
69            }
70            network {
71                ref
72            }
73            maxSplit
74            sourcingConditions {
75                name
76                type
77                params
78            }
79            sourcingCriteria {
80                name
81                type
82                params
83            }
84        }
85    }
86}

1{
2  "ref": "Puget_Sound"
3}

1{
2  "data": {
3    "sourcingProfile": {
4      "id": "333",
5      "ref": "Puget_Sound",
6      "version": 1,
7      "versionComment": "First version of Puget_Sound",
8      "name": "Puget_Sound",
9      "description": "Profile Description",
10      "status": "ACTIVE",
11      "user": {
12        "id": "1302"
13      },
14      "createdOn": "2025-08-18T13:41:40.774Z",
15      "updatedOn": "2025-08-18T13:41:40.774Z",
16      "retailer": {
17        "id": "1"
18      },
19      "defaultVirtualCatalogue": {
20        "ref": "BASE:PS"
21      },
22      "defaultNetwork": {
23        "ref": "PS"
24      },
25      "defaultMaxSplit": 5,
26      "sourcingStrategies": [
27        {
28          "id": "516",
29          "ref": "Seattle_Metro",
30          "sourcingProfile": {
31            "id": "333"
32          },
33          "name": "Seattle_Metro",
34          "description": "Seattle_Metro Sourcing Strategy",
35          "status": "ACTIVE",
36          "priority": 1,
37          "createdOn": "2025-08-18T13:41:40.787Z",
38          "updatedOn": "2025-08-18T13:41:40.787Z",
39          "virtualCatalogue": null,
40          "network": {
41            "ref": "SM"
42          },
43          "maxSplit": null,
44          "sourcingConditions": [
45            {
46              "name": "deliveryRegionIn",
47              "type": "fc.sourcing.condition.path",
48              "params": {
49                "path": "fulfilmentChoice.address.region",
50                "value": "Seattle Metro",
51                "operator": "in"
52              }
53            }
54          ],
55          "sourcingCriteria": [
56            {
57              "name": "networkPriority",
58              "type": "fc.sourcing.criterion.networkPriority",
59              "params": {
60                "value": [
61                  "SM_LS",
62                  "SM_WH"
63                ]
64              }
65            },
66            {
67              "name": "locationDistance",
68              "type": "fc.sourcing.criterion.locationDistance",
69              "params": null
70            }
71          ]
72        },
73        {
74          "id": "517",
75          "ref": "San_Juan_Islands",
76          "sourcingProfile": {
77            "id": "333"
78          },
79          "name": "San_Juan_Islands",
80          "description": "San_Juan_Islands Sourcing Strategy",
81          "status": "ACTIVE",
82          "priority": 2,
83          "createdOn": "2025-08-18T13:41:40.782Z",
84          "updatedOn": "2025-08-18T13:41:40.782Z",
85          "virtualCatalogue": null,
86          "network": {
87            "ref": "SJI"
88          },
89          "maxSplit": null,
90          "sourcingConditions": [
91            {
92              "name": "deliveryRegionIn",
93              "type": "fc.sourcing.condition.path",
94              "params": {
95                "path": "fulfilmentChoice.address.region",
96                "value": "San Juan Islands",
97                "operator": "in"
98              }
99            }
100          ],
101          "sourcingCriteria": [
102            {
103              "name": "networkPriority",
104              "type": "fc.sourcing.criterion.networkPriority",
105              "params": {
106                "value": [
107                  "SJI_LS",
108                  "SM_WH"
109                ]
110              }
111            },
112            {
113              "name": "locationDistance",
114              "type": "fc.sourcing.criterion.locationDistance",
115              "params": null
116            }
117          ]
118        }
119      ],
120      "sourcingFallbackStrategies": [
121        {
122          "id": "315",
123          "ref": "Coastal",
124          "sourcingProfile": {
125            "id": "333"
126          },
127          "name": "Coastal",
128          "description": "Coastal Strategy Description",
129          "status": "ACTIVE",
130          "priority": 1,
131          "createdOn": "2025-08-18T13:41:40.781Z",
132          "updatedOn": "2025-08-18T13:41:40.781Z",
133          "virtualCatalogue": null,
134          "network": null,
135          "maxSplit": null,
136          "sourcingConditions": [
137            {
138              "name": "allProductSizeIn",
139              "type": "fc.sourcing.condition.path",
140              "params": {
141                "path": "unfulfilledItems.product.attributes.byName.size",
142                "value": [
143                  "Extra-Small",
144                  "Small"
145                ],
146                "operator": "in",
147                "conditionScope": "ALL"
148              }
149            }
150          ],
151          "sourcingCriteria": [
152            {
153              "name": "locationDistanceExclusion",
154              "type": "fc.sourcing.criterion.locationDistanceExlusion",
155              "params": {
156                "value": 50,
157                "valueUnit": "miles"
158              }
159            },
160            {
161              "name": "orderValue",
162              "type": "fc.sourcing.criterion.orderValue",
163              "params": null
164            }
165          ]
166        }
167      ]
168    }
169  }
170}

1mutation activateSourcingProfile($input: ActivateSourcingProfileInput) {
2    activateSourcingProfile(input: $input) {
3        ref
4        version
5        status
6    }
7}

1{
2  "input": {
3    "ref": "Puget_Sound",
4    "version": 2
5  }
6}

1{
2  "data": {
3    "activateSourcingProfile": {
4      "ref": "Puget_Sound",
5      "version": 2,
6      "status": "ACTIVE"
7    }
8  }
9}

1{
2  "name": "SourceOrder",
3  "description": "Creates fulfilments at a location based on sourcing profile. If there are unfulfilled items in the order, trigger an event for sourcing from another location to fulfil remaining items",
4  "type": "ORDER",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "[[account.id]].order.CreateFulfilmentWithSourcingProfile",
9      "props": {
10        "sourcingProfileRef": "Puget_Sound"
11      }
12    },
13    {
14      "name": "[[account.id]].order.CreatePartialFulfilmentWithSourcingProfile",
15      "props": {
16        "sourcingProfileRef": "Puget_Sound"
17      }
18    },
19    {
20      "name": "{{account}}.order.CreateRejectedFulfilment",
21      "props": {
22        "systemRejectedLocationRef": "RJT_PS"
23      }
24    }
25  ],
26  "triggers": [
27    {
28      "status": "BOOKED"
29    },
30    {
31      "status": "PICK_PACK"
32    }
33  ],
34  "userActions": []
35}

Configure Multi-Region Sourcing Logic

Key Points

Prerequisites

Setting Up Region-Specific Sourcing Logic

Responsive Sourcing Framework Overview

Sourcing Profile GraphQL API Overview

Sourcing Utilities Overview

Steps

Create Networks

Create Sourcing Profile

Sample createSourcingProfile Payload

Verify your Sourcing Profile

Sample sourcingProfile Payload

Sample activateSourcingProfile Payload

Update your Workflow

Related artifacts

fc.rubix.order.sourcing.conditions

fc.rubix.order.sourcing.criteria

CreateFulfilmentWithSourcingProfile

CreatePartialFulfilmentWithSourcingProfile

CreateRejectedFulfilment

Related content

Setting Up Region-Specific Sourcing Logic

Setting Up Country-Specific Sourcing Logic

Configure Multi-Country Sourcing Logic

Setting Up Customer-Specific Sourcing Logic

Configure Multi-Customer-Tier Sourcing Logic

Kirill Gaiduk

Knowledge Tracks Related To This Topic

Building Blocks

By Type

Helpful Resources

Quick Links
