Fluent Store Dashboard: new dashboard tile based on fulfilment expiry time

How-to Guide
Extend

Author:

Randy Chan

Changed on:

16 Apr 2025

Key Points

  • A guide to extend Fluent STORE UI capabilities to allow the store users to have a better visibility on the fulfilments by expiry time.
  • The use case where the store staff would like to see number of fulfilments for the next 2 hours so that they can plan their pick and pack process accordingly.
  • One of the solutions is by using OOTB component and manifest to display the fulfilments number based on the expiry time.  Hence, there are no custom rules nor custom component is required for this solution.
  • Here are the steps to archive the outcome:
    • Create a new screen in fluent Store
    • Create dashboard tiles

Prerequisites

Wave Dashboard Template
Webapps OMS Dashboard

Steps

Step arrow right iconCreate a new screen in Fluent Store

Create a new for the new empty screen:

Name: fc...store.fragment.store_dashboard

Context:

Context ID: 0

Value Type: JSON

JSON Value:

1{
2    "manifestVersion": "2.0",
3    "routes": [
4        {
5            "type": "page",
6            "path": "store_dashboard",
7            "component": "fc.page",
8            "nav": {
9                "label": "Store Dashboard",
10                "icon": "store"
11            },
12            "props": {
13                "title": "Store Dashboard"
14            },
15            "descendants": []
16        }
17    ]
18}

Language: json

Name: fc.mystique.manifest.store.fragment.store_dashboard JSON Value

Description:

fc...store.fragment.store_dashboard JSON Value

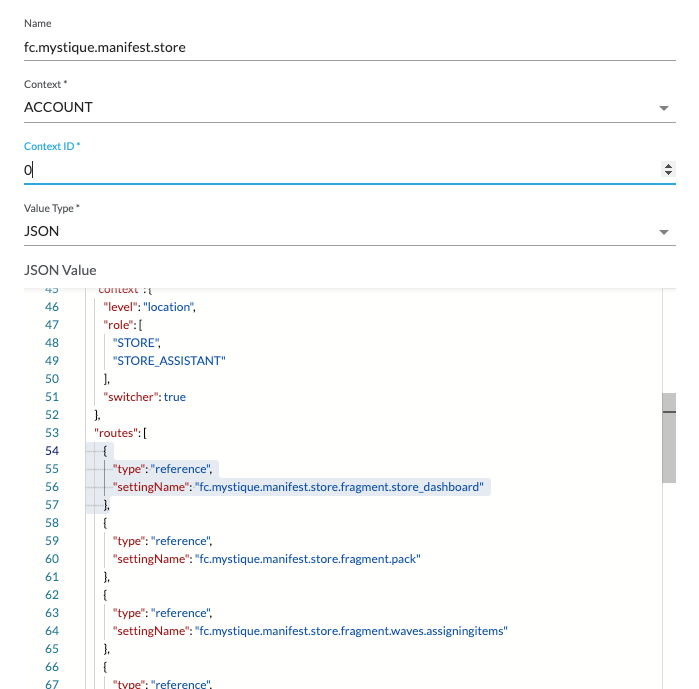

Then add the new to the fc...store

1{
2    "type": "reference",
3    "settingName": "fc.mystique.manifest.store.fragment.store_dashboard"
4},

Language: json

Name: fc.mystique.manifest.store

No alt provided

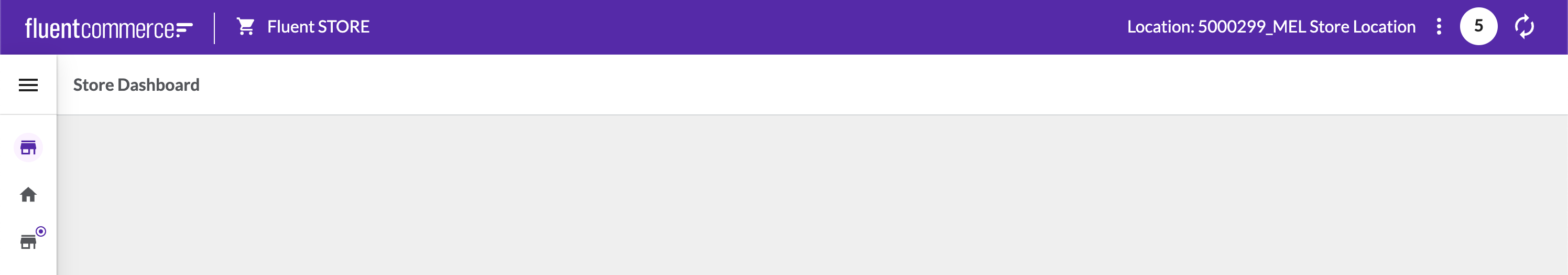

Refresh the store screen and you should able to see the new Store Dashboard page:

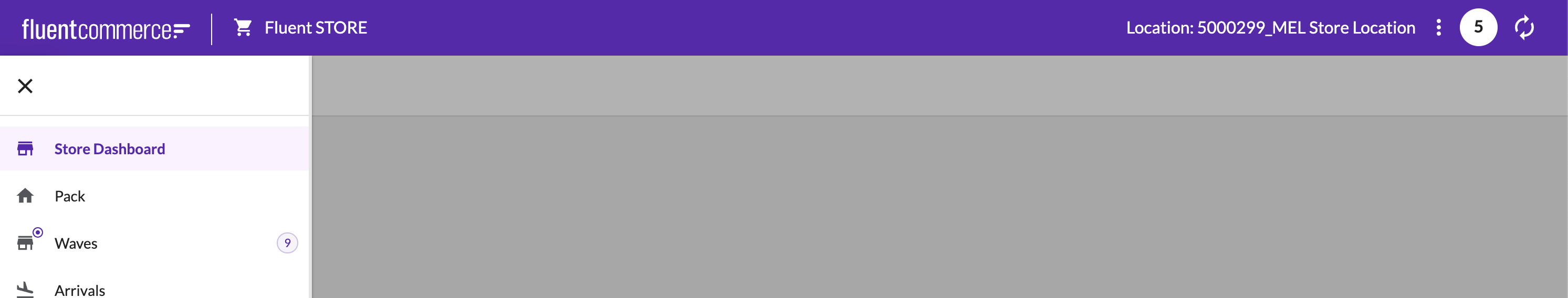

No alt providedNo alt provided

Step arrow right iconCreate dashboard tiles

This step is to create 4 dashboard tiles where:

  • Tile 1:  display the number of (AWAITING_WAVE) fulfilments with the expiry Time is less than 30 mins.
  • Tile 2: display the number of (AWAITING_WAVE) fulfilments with the expiry Time is between 30 and 60 mins.
  • Tile 3: display the number of (AWAITING_WAVE) fulfilments with the expiry Time is between 60 and 120 mins.
  • Tile 4: display the number of (AWAITING_WAVE) fulfilments assigned to this location.
Tile 1: Fulfilment expiring less than 30 mins

Parameter

Configuration

Data Source

`fulfilment_expired30Mins:fulfilment` query

Filters

  • `activeLocation.ref` of the current Location
  • `status` set to `AWAITING_WAVE`
  • `ExpiryTime from:Now, to:+30mins`

Min Threshold

0

Max Threshold

0

link

awaiting-pick page has a default filter of and status. Hence we only need to provide the fulfilments_expiryTime:

`#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}`

1{
2    "manifestVersion": "2.0",
3    "routes": [
4        {
5            "type": "page",
6            "path": "store_dashboard",
7            "component": "fc.page",
8            "nav": {
9                "label": "Store Dashboard",
10                "icon": "store"
11            },
12            "props": {
13                "title": "Store Dashboard"
14            },
15            "data": {
16                "query": "query ($ordersAwaitingPickFromLocationRef: String!, $ordersAwaitingPickStatus: [String]!,  $fulfilmentExpiryNow:DateTime!, $fulfilmentExpiry30mins:DateTime!) {  fulfilment_expired30Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiryNow, to:$fulfilmentExpiry30mins}) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  }  }",
17                "variables": {
18                    "ordersAwaitingPickFromLocationRef": "{{activeLocation.ref}}",
19                    "ordersAwaitingPickStatus": [
20                        "AWAITING_WAVE"
21                    ],
22                    "fulfilmentExpiryNow": "{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
23                    "fulfilmentExpiry30mins": "{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}"
24                }
25            },
26            "descendants": [
27                {
28                    "component": "fc.dashboard.threshold",
29                    "dataSource": "fulfilment_expired30Mins",
30                    "props": {
31                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired30Mins.title",
32                        "subTitle": "Expiring in 30 mins",
33                        "value": "{{edges.length}}",
34                        "thresholdLow": 0,
35                        "thresholdHigh": 0,
36                        "width": "third",
37                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
38                    }
39                }
40            ]
41        }
42    ]
43}

Language: json

Name: fc.mystique.manifest.store.fragment.store_dashboard with 1 dashboard tile

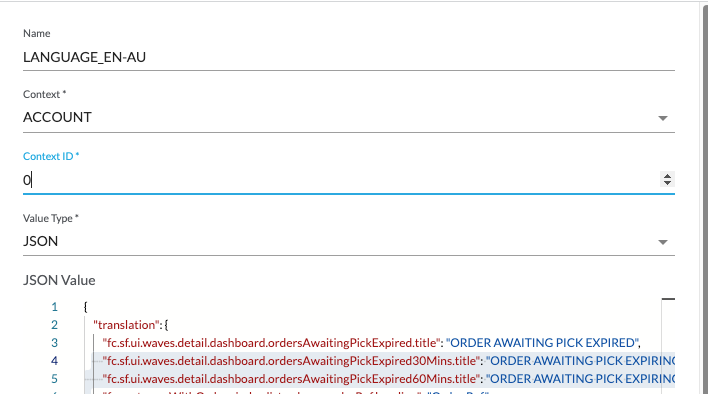

Update the language :

1"fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired30Mins.title": "ORDER AWAITING PICK EXPIRING in 30 mins",
2"fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired60Mins.title": "ORDER AWAITING PICK EXPIRING in 60 mins",
3"fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired120Mins.title": "ORDER AWAITING PICK EXPIRING in 2 hours",
4

Language: json

Name: Add value in language setting: LANGUAGE_EN-AU

No alt provided

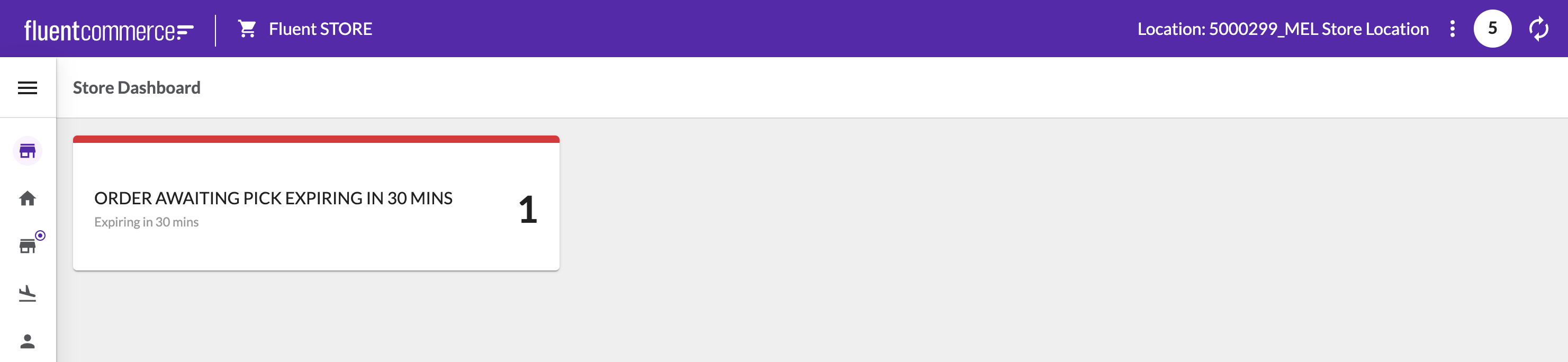

Refresh the Fluent Store screen:

No alt provided
Tile 2: Fulfilment expiring between 30 and 60 mins

Parameter

Configuration

Data Source

`fulfilment_expired60Mins:fulfilment` query

Filters

  • `activeLocation.ref` of the current Location
  • `status` set to `AWAITING_WAVE`
  • `ExpiryTime from:+30mins, to:+60mins`

Min Threshold

1

Max Threshold

10

link

awaiting-pick page has a default filter of and status. Hence we only need to provide the fulfilments_expiryTime:

`#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}`

1
2// 1. In the query section:
3//
4// 1.a Add a new parameter:
5, $fulfilmentExpiry60mins:DateTime!
6
7// 1.b add a new subquery:
8fulfilment_expired60Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiry30mins, to:$fulfilmentExpiry60mins }) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  }
9
10// 2. In the variables section:
11//
12,
13"fulfilmentExpiry60mins": "{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}"
14
15// 3. In the descendants section:
16,
17    {
18        "component": "fc.dashboard.threshold",
19        "dataSource": "fulfilment_expired60Mins",
20        "props": {
21            "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired60Mins.title",
22            "subTitle": "Expiring in 60 mins",
23            "value": "{{edges.length}}",
24            "thresholdLow": 1,
25            "thresholdHigh": 10,
26            "width": "third",
27            "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
28        }
29    }
30

Language: json

Name: Extend the fc.mystique.manifest.store.fragment.store_dashboard for tile 2:

1{
2    "manifestVersion": "2.0",
3    "routes": [
4        {
5            "type": "page",
6            "path": "store_dashboard",
7            "component": "fc.page",
8            "nav": {
9                "label": "Store Dashboard",
10                "icon": "store"
11            },
12            "props": {
13                "title": "Store Dashboard"
14            },
15            "data": {
16                "query": "query ($ordersAwaitingPickFromLocationRef: String!, $ordersAwaitingPickStatus: [String]!,  $fulfilmentExpiryNow:DateTime!, $fulfilmentExpiry30mins:DateTime!, $fulfilmentExpiry60mins:DateTime!) {  fulfilment_expired30Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiryNow, to:$fulfilmentExpiry30mins}) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  } \n fulfilment_expired60Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiry30mins, to:$fulfilmentExpiry60mins }) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  } }",
17                "variables": {
18                    "ordersAwaitingPickFromLocationRef": "{{activeLocation.ref}}",
19                    "ordersAwaitingPickStatus": [
20                        "AWAITING_WAVE"
21                    ],
22                    "fulfilmentExpiryNow": "{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
23                    "fulfilmentExpiry30mins": "{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
24                    "fulfilmentExpiry60mins": "{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}"
25                }
26            },
27            "descendants": [
28                {
29                    "component": "fc.dashboard.threshold",
30                    "dataSource": "fulfilment_expired30Mins",
31                    "props": {
32                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired30Mins.title",
33                        "subTitle": "Expiring in 30 mins",
34                        "value": "{{edges.length}}",
35                        "thresholdLow": 0,
36                        "thresholdHigh": 0,
37                        "width": "third",
38                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
39                    }
40                },
41                {
42                    "component": "fc.dashboard.threshold",
43                    "dataSource": "fulfilment_expired60Mins",
44                    "props": {
45                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired60Mins.title",
46                        "subTitle": "Expiring in 60 mins",
47                        "value": "{{edges.length}}",
48                        "thresholdLow": 1,
49                        "thresholdHigh": 10,
50                        "width": "third",
51                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
52                    }
53                }
54            ]
55        }
56    ]
57}

Language: json

Name: Extend the fc.mystique.manifest.store.fragment.store_dashboard with 2 dashboard tiles

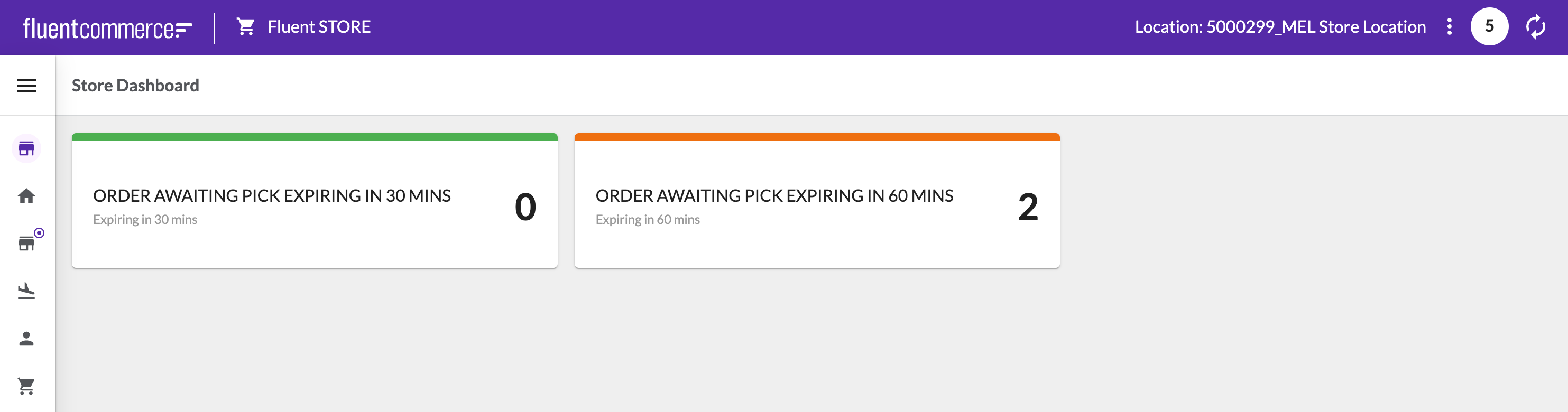

Refresh the Fluent Store:

No alt provided

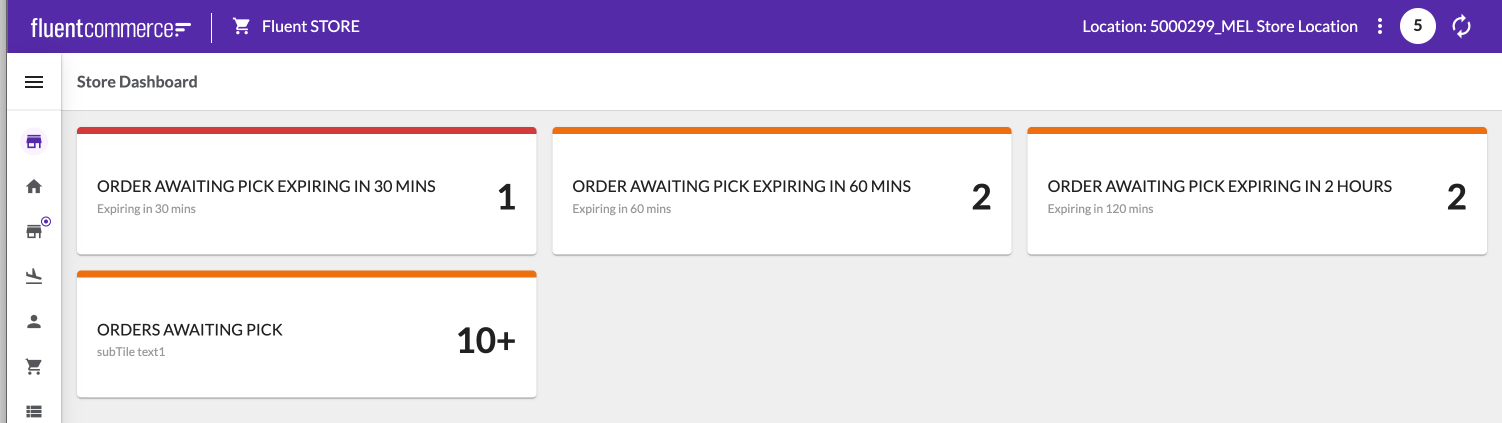

Follow the same pattern as above for tile 3 (with expiryTime from:60mins and to:120mins) and for tile 4 expiryTime parameter does not require:

1{
2    "manifestVersion": "2.0",
3    "routes": [
4        {
5            "type": "page",
6            "path": "store_dashboard",
7            "component": "fc.page",
8            "nav": {
9                "label": "Store Dashboard",
10                "icon": "store"
11            },
12            "props": {
13                "title": "Store Dashboard"
14            },
15            "data": {
16                "query": "query ($ordersAwaitingPickFromLocationRef: String!, $ordersAwaitingPickStatus: [String]!,  $fulfilmentExpiryNow:DateTime!, $fulfilmentExpiry30mins:DateTime!, $fulfilmentExpiry60mins:DateTime!, $fulfilmentExpiry120mins:DateTime!) {  fulfilment_expired30Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiryNow, to:$fulfilmentExpiry30mins}) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  } \n fulfilment_expired60Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiry30mins, to:$fulfilmentExpiry60mins }) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  } \n fulfilment_expired120Mins:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus, expiryTime:{from:$fulfilmentExpiry60mins, to:$fulfilmentExpiry120mins }) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  }\n fulfilment_awaitingwave:fulfilments(fromLocation: {ref: $ordersAwaitingPickFromLocationRef}, status: $ordersAwaitingPickStatus) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  } \n }",
17                "variables": {
18                    "ordersAwaitingPickFromLocationRef": "{{activeLocation.ref}}",
19                    "ordersAwaitingPickStatus": [
20                        "AWAITING_WAVE"
21                    ],
22                    "fulfilmentExpiryNow": "{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
23                    "fulfilmentExpiry30mins": "{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
24                    "fulfilmentExpiry60mins": "{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}",
25                    "fulfilmentExpiry120mins": "{{dateStringFormatter (dateAdd minute=120) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]' true}}"
26                }
27            },
28            "descendants": [
29                {
30                    "component": "fc.dashboard.threshold",
31                    "dataSource": "fulfilment_expired30Mins",
32                    "props": {
33                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired30Mins.title",
34                        "subTitle": "Expiring in 30 mins",
35                        "value": "{{edges.length}}",
36                        "thresholdLow": 0,
37                        "thresholdHigh": 0,
38                        "width": "third",
39                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd day=0) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
40                    }
41                },
42                {
43                    "component": "fc.dashboard.threshold",
44                    "dataSource": "fulfilment_expired60Mins",
45                    "props": {
46                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired60Mins.title",
47                        "subTitle": "Expiring in 60 mins",
48                        "value": "{{edges.length}}",
49                        "thresholdLow": 1,
50                        "thresholdHigh": 10,
51                        "width": "third",
52                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd minute=30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
53                    }
54                },
55                {
56                    "component": "fc.dashboard.threshold",
57                    "dataSource": "fulfilment_expired120Mins",
58                    "props": {
59                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPickExpired120Mins.title",
60                        "subTitle": "Expiring in 120 mins",
61                        "value": "{{edges.length}}",
62                        "thresholdLow": 1,
63                        "thresholdHigh": 10,
64                        "width": "third",
65                        "link": "#/waves/list/awaiting-pick?fulfilments_expiryTime={\"from\":\"{{dateStringFormatter (dateAdd minute=60) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\",\"to\":\"{{dateStringFormatter (dateAdd minute=120) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
66                    }
67                },
68                {
69                    "component": "fc.dashboard.threshold",
70                    "dataSource": "fulfilment_awaitingwave",
71                    "props": {
72                        "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPick.title",
73                        "subTitle": "subTile text1",
74                        "value": "{{edges.length}}",
75                        "thresholdLow": 1,
76                        "thresholdHigh": 10,
77                        "width": "third"
78                    }
79                }
80            ]
81        }
82    ]
83}

Language: json

Name: fc.mystique.manifest.store.fragment.store_dashboard with 4 dashboard tiles

No alt provided

Except as otherwise stated in the Extend Knowledge Content site policy, the content on this page is licensed under the Creative Commons Attribution 4.0 Licence, and any code samples that appear on this page are licensed under the Apache 2.0 Licence, unless any code sample forms part of the Fluent Order Management Platform code. Neither of these licences apply to any content on any other page that can be reached via a link on this page unless otherwise specified on that other page. If you wish to use any of the Extend Knowledge Content, you must do so in compliance with the licenses referred to above and the Extend Knowledge Content site policy, including attribution in the manner set out on this page.

Randy Chan

Randy Chan

Building Blocks
Building Blocks
Packages & Modules
UI Components
Workflows
Settings
Interface Contracts
Rules
By Type
All Types
Knowledge Tracks
Extend Knowledge
Glossary
How-to Guides
Sitemap
Topics
Use Cases
Helpful Resources
Platform Limits
Support Policy
Service Level Agreement (SLA) - Enterprise
Deprecation Policy
Extend Knowledge Content – Terms and Conditions
System and Organization Controls (SOC) 3 Report
Data Privacy Addendum
Security Policy
Quick Links
For Partners
Customer Resources
Webinars and Events
Certification
Training Resources
Knowledge Tracks
Builders Portal
Product Update Newsletter

Copyright © 2024-2025 Fluent Retail Pty Ltd (trading as Fluent Commerce). Unless otherwise expressly stated in a current written agreement with Fluent Commerce or any of its affiliates or on any single page of the docs.fluentcommerce.com site, use of the materials on this site is strictly limited to viewing by individuals over 18 years old for legitimate commercially appropriate reasons; and any downloading, copying or other actions or uses of any kind or by any means of the materials on this site, including by artificial intelligence tools, is strictly prohibited. All other rights reserved.

Fluent Logo
