Dashboard Threshold Component

UI Component

Changed on:

5 Feb 2025

Overview

The dashboard threshold component displays a card with a number referring to the total records returned by a GraphQL query. Tiles can be configured to change colour based on configured threshold limits to indicate their status.Each tile is configurable with a high and low threshold value, allowing users to view any 'total' data records.

Plugin Name	Core

The standard library of mystique components.

0000-00-00

v1.0.0

Initial changelog entry.

Alias

fc.dashboard.threshold

Detailed technical description

Note

If the GraphQL query is configured to return 999 results, then the number more than 999 results is shown with a "+" appended to it. For example: 999+.

Tile Colors

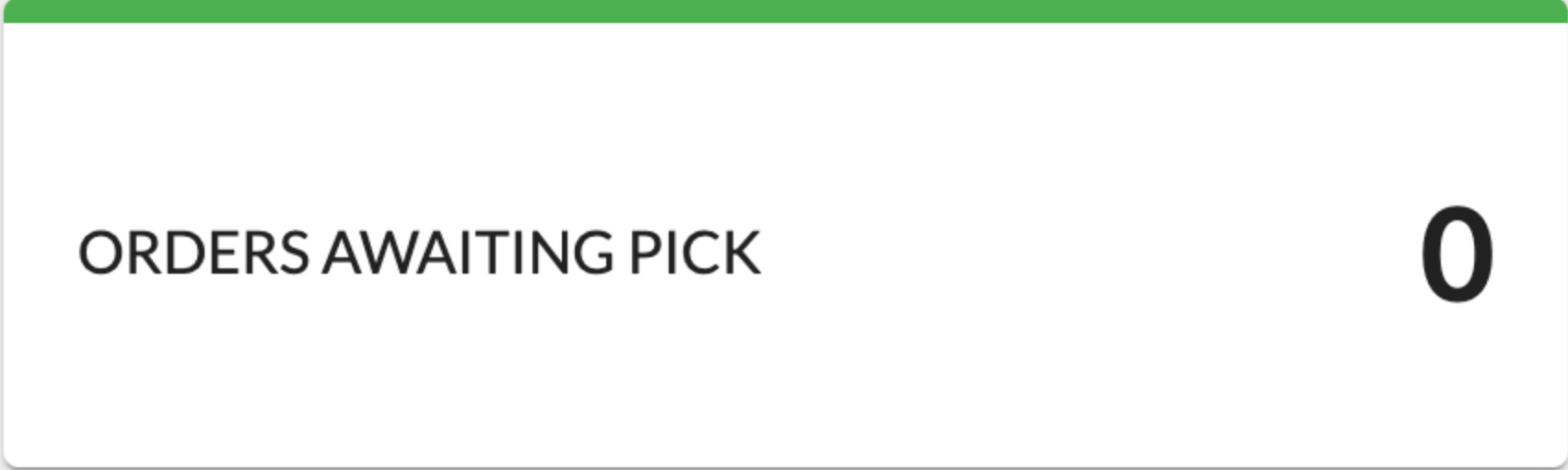

Below Low Threshold: GreenIn the sample manifest, the result count ‘0’ is equal or less than the thresholdLow (3) that results in green tile color. No alt provided

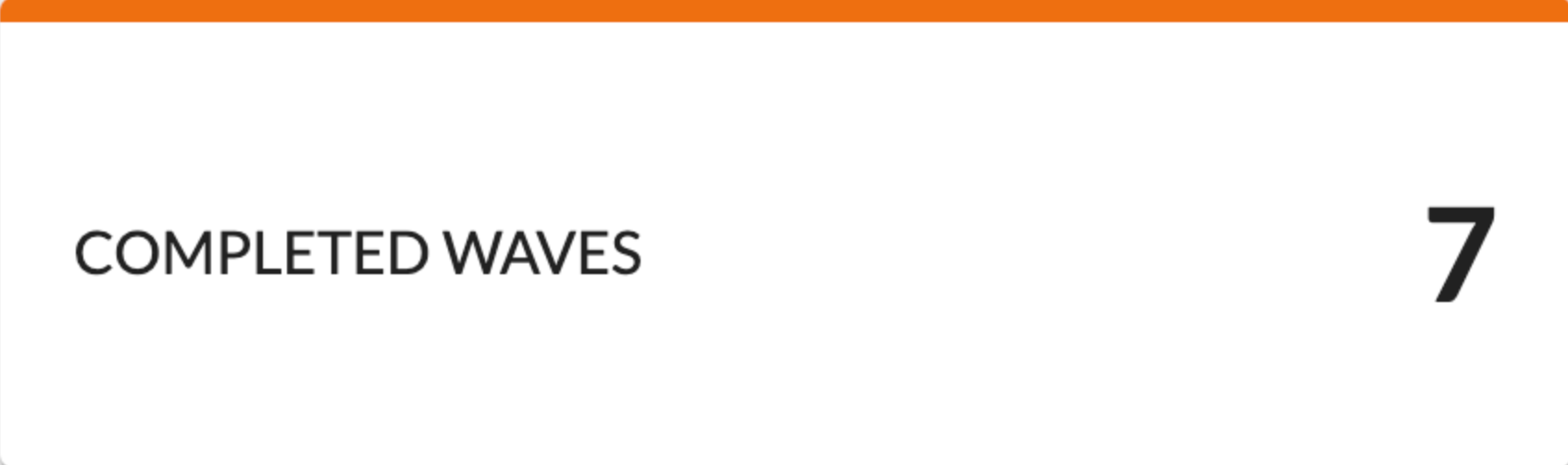

Between Low and High Threshold: OrangeIn the sample manifest, the result count ‘7’ lies between thresholdLow (3) and thresholdHigh(11) that results in orange tile color. No alt provided

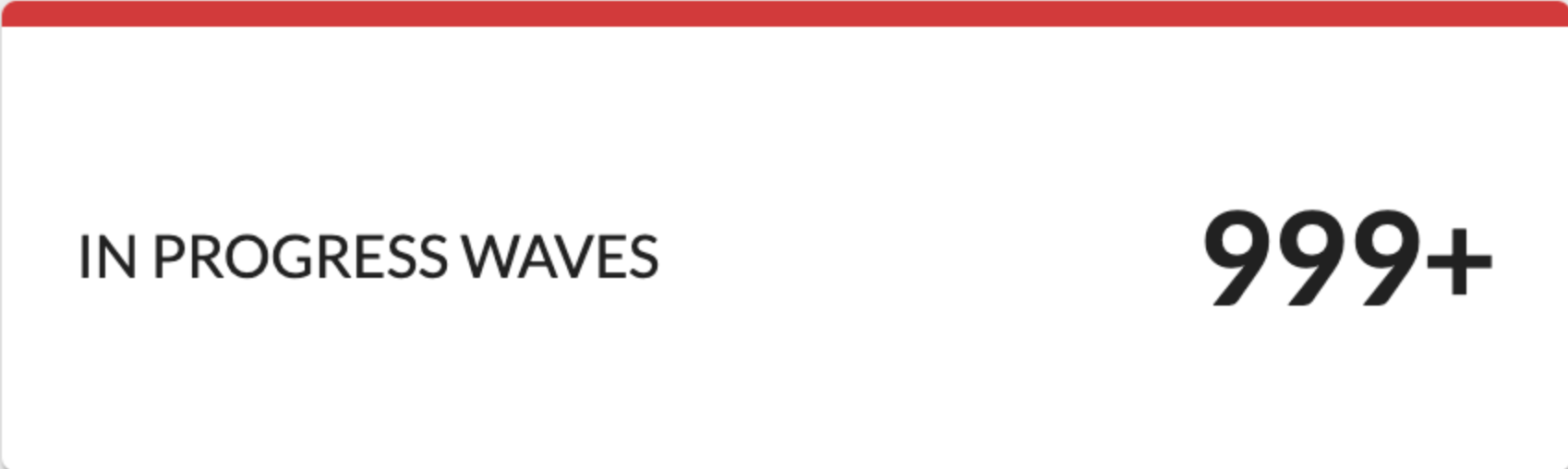

Above High Threshold: RedIn the sample manifest, the result count ‘999+’ is equal or greater than the thresholdHigh (11) that results in red tile color. No alt provided

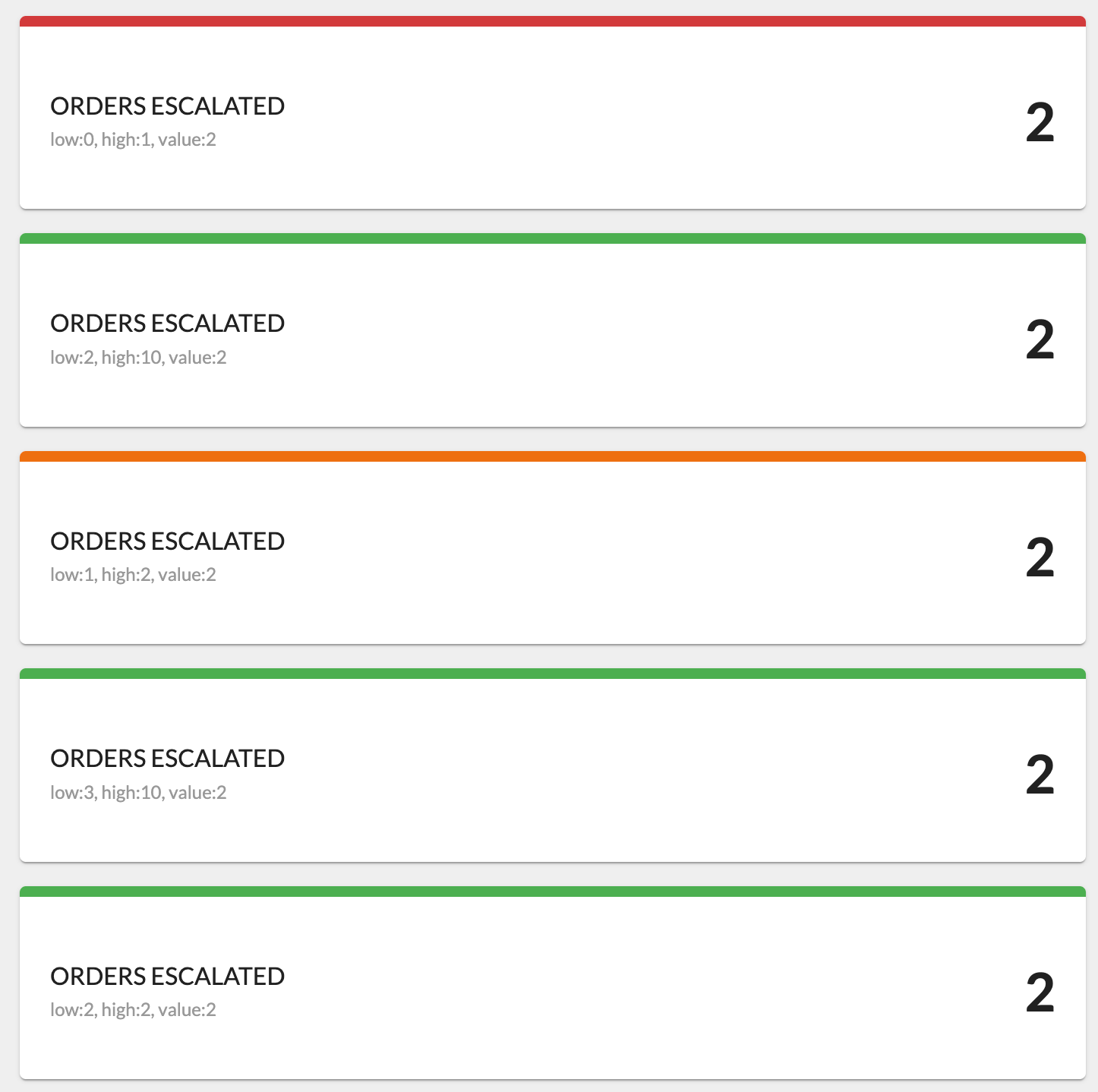

Another example of testing the lowThreshold and highThreshold: No alt provided

1{
2    "component": "fc.dashboard.threshold",
3    "props": {
4        "dataSource": "escalations",
5        "label": "i18n:fc.om.dashboard.alerts.ordersEscalated.label",
6        "subTitle": "low:0, high:1, value:2",
7        "value": "2",
8        "thresholdLow": 0,
9        "thresholdHigh": 1,
10        "link": "#/escalatedFulfilments?fulfilments_createdOn={\"from\":\"{{dateStringFormatter (dateAdd day=-30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
11    }
12},
13{
14    "component": "fc.dashboard.threshold",
15    "props": {
16        "dataSource": "escalations",
17        "label": "i18n:fc.om.dashboard.alerts.ordersEscalated.label",
18        "subTitle": "low:2, high:10, value:2",
19        "value": "2",
20        "thresholdLow": 2,
21        "thresholdHigh": 10,
22        "link": "#/escalatedFulfilments?fulfilments_createdOn={\"from\":\"{{dateStringFormatter (dateAdd day=-30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
23    }
24},
25{
26    "component": "fc.dashboard.threshold",
27    "props": {
28        "dataSource": "escalations",
29        "label": "i18n:fc.om.dashboard.alerts.ordersEscalated.label",
30        "subTitle": "low:1, high:2, value:2",
31        "value": "2",
32        "thresholdLow": 1,
33        "thresholdHigh": 2,
34        "link": "#/escalatedFulfilments?fulfilments_createdOn={\"from\":\"{{dateStringFormatter (dateAdd day=-30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
35    }
36},
37{
38    "component": "fc.dashboard.threshold",
39    "props": {
40        "dataSource": "escalations",
41        "label": "i18n:fc.om.dashboard.alerts.ordersEscalated.label",
42        "subTitle": "low:3, high:10, value:2",
43        "value": "2",
44        "thresholdLow": 3,
45        "thresholdHigh": 10,
46        "link": "#/escalatedFulfilments?fulfilments_createdOn={\"from\":\"{{dateStringFormatter (dateAdd day=-30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
47    }
48},
49{
50    "component": "fc.dashboard.threshold",
51    "props": {
52        "dataSource": "escalations",
53        "label": "i18n:fc.om.dashboard.alerts.ordersEscalated.label",
54        "subTitle": "low:2, high:2, value:2",
55        "value": "2",
56        "thresholdLow": 2,
57        "thresholdHigh": 2,
58        "link": "#/escalatedFulfilments?fulfilments_createdOn={\"from\":\"{{dateStringFormatter (dateAdd day=-30) 'YYYY-MM-DD[T]HH:mm:ss.SSS' true}}Z\"}"
59    }
60},

1"data": {
2    "query": "query ($ordersAwaitingPickFromLocationRef: String!, $ordersAwaitingPickStatus: [String]!, $wavesInProgressLocationRef: String!, $_wavesInProgressStatus: [String]!, $wavesCompletedStatus: [String]!, $wavesCompletedUpdatedOn: DateTime!, $locationId: ID!) {  locationById(id: $locationId) {    ref  }  dashboardFulfilments: fulfilments(    first: 999    fromLocation: {ref: $ordersAwaitingPickFromLocationRef}    status: $ordersAwaitingPickStatus    createdOn: { from: \"2024-11-10T05:26:46.182Z\" }) {    edges {      node {        id      }    }    pageInfo {      hasNextPage    }  }  dashboardWavesInProgress: waves(    first: 999    processingLocation: {ref: $wavesInProgressLocationRef}    status: $_wavesInProgressStatus  ) {    edges {      node {        id      }    }    pageInfo {      hasNextPage    }  }  dashboardWavesCompleted: waves(    first: 999    processingLocation: {ref: $wavesInProgressLocationRef}    status: $wavesCompletedStatus    updatedOn: {from: $wavesCompletedUpdatedOn}  ) {    edges {      node {        id      }    }    pageInfo {      hasNextPage    }  }  fulfilments(    fromLocation: {ref: $ordersAwaitingPickFromLocationRef}    status: $ordersAwaitingPickStatus  ) {    edges {      node {        id        ref        order {          ref          totalPrice          customer {            firstName            lastName          }        }        expiryTime        deliveryType      }    }  }  wavesInProgress: waves(    processingLocation: {ref: $wavesInProgressLocationRef}    status: $_wavesInProgressStatus  ) {    edges {      node {        id        ref        status        location {          id          ref        }      }    }  }  wavesCompleted: waves(    processingLocation: {ref: $wavesInProgressLocationRef}    status: $wavesCompletedStatus    updatedOn: {from: $wavesCompletedUpdatedOn}  ) {    edges {      node {        id        ref        updatedOn        status        location {          id          ref        }      }    }    pageInfo {      hasNextPage    }  }  waveCreateSetting: settings(name: \"fc.mystique.store.feature.wave.create\") {    edges {      node {        lobValue      }    }  }}",
3    "variables": {
4        "locationId": "{{activeLocation.id}}",
5        "ordersAwaitingPickFromLocationRef": "{{activeLocation.ref}}",
6        "ordersAwaitingPickStatus": [
7            "AWAITING_WAVE"
8        ],
9        "wavesInProgressLocationRef": "{{activeLocation.ref}}",
10        "_wavesInProgressStatus": [
11            "PICK",
12            "PACK",
13            "DISPATCH"
14        ],
15        "wavesCompletedStatus": [
16            "COMPLETE"
17        ],
18        "wavesCompletedUpdatedOn": "{{dateStringFormatter (dateAdd day=-1) 'YYYY-MM-DD[T]HH:mm:ss.SSS[Z]'}}"
19    }
20},
21"descendants": [
22    {
23        "component": "fc.dashboard.threshold",
24        "dataSource": "dashboardFulfilments",
25        "props": {
26            "label": "i18n:fc.sf.ui.waves.detail.dashboard.ordersAwaitingPick.title",
27            "value": "{{edges.length}}",
28            "thresholdLow": 1,
29            "thresholdHigh": 10,
30            "width": "third",
31            "link": "#/waves/list/awaiting-pick"
32        }
33    },
34    {
35        "component": "fc.dashboard.threshold",
36        "dataSource": "dashboardWavesInProgress",
37        "props": {
38            "label": "i18n:fc.sf.wave.inprogress.detail.title",
39            "value": "{{edges.length}}",
40            "thresholdLow": 1,
41            "thresholdHigh": 3,
42            "width": "third",
43            "link": "#/waves/list/in-progress"
44        }
45    },
46    {
47        "component": "fc.dashboard.threshold",
48        "dataSource": "dashboardWavesCompleted",
49        "props": {
50            "label": "i18n:fc.sf.wave.completed.detail.title",
51            "value": "{{edges.length}}",
52            "thresholdLow": 0,
53            "thresholdHigh": 1000000,
54            "width": "third",
55            "link": "#/waves/list/completed"
56        }
57    },

Properties

*Name*	*Type*	*Required*	*Default*	*Description*
label	`string`	Yes		Main text label of the tile. (see above for details).
value	`string`	Yes		Numeric value to display on the card. (see above for details).
link	`string`	No		Optional URL to navigate to when the card is clicked. (see above for details).
subTitle	`string`	No		Secondary text, used to give more context to the main title. (see above for details).
width	`CardWidth`	No	3	Card width for arranging this tile on the grid (see above for details).
thresholdLow	`number`	No		Lower threshold, below which the tile will appear green.
thresholdHigh	`number`	No		Upper threshold, above which the tile will appear red.

Configuration example

1{
2  "component": "fc.dashboard.threshold",
3  "dataSource": "fulfilmentsAwaitingWave",
4  "props": {
5    "label": "Fulfilments Awaiting Wave",
6    "subTitle": "(> 1 day)",
7    "value": "{{edges.length}}",
8    "link": "#/urgentFulfilments",
9    "thresholdLow": 3,
10    "thresholdHigh": 11
11  }
12}

Version History

2023-07-31

v0.0.0

First release

Recommended Placement

None

Copyright © 2024-2026 Fluent Retail Pty Ltd (trading as Fluent Commerce). Unless otherwise expressly stated in a current written agreement with Fluent Commerce or any of its affiliates or on any single page of the docs.fluentcommerce.com site, use of the materials on this site is strictly limited to viewing by individuals over 18 years old for legitimate commercially appropriate reasons; and any downloading, copying or other actions or uses of any kind or by any means of the materials on this site, including by artificial intelligence tools, is strictly prohibited. All other rights reserved.
