Overview

The Order Management Experience (OMX) Design System provides guidelines for delivering a user experience tailored to the Omnichannel Order Management space. This article will describe the foundations of the Design System, including color palette and typography which make up the overarching design theme of the Fluent Commerce platform.

Key points

  • The Fluent OMX Design System is based on Material Design 2, this article covers the exceptions & elements not included in this documentation.
  • Learn about the Fluent Commerce color palette & typography through usage examples, recommended practices, and code samples.

Foundations Overview

This section lays down the foundation for the overarching design theme of the Fluent Commerce platform. To create visually clean and user-friendly interfaces, there are recommendations and guidelines on how the overarching Fluent design theme elements, such as Color and typography, should be used.

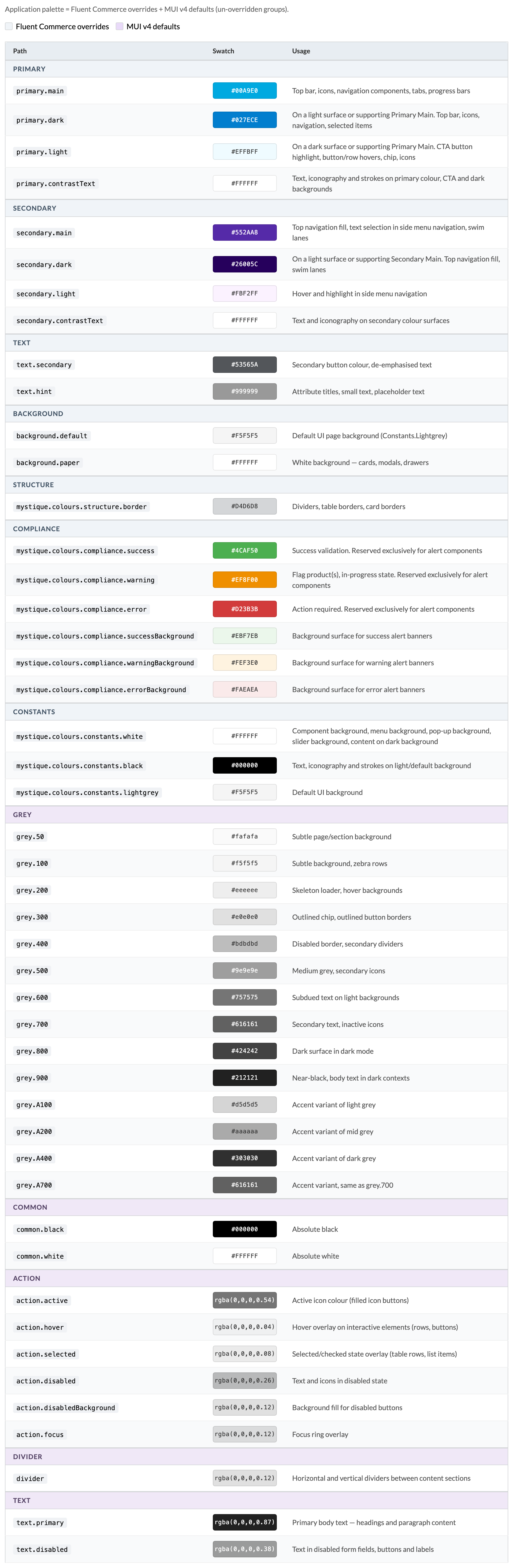

Color Palette

All Fluent Web Apps come with a built-in color palette that can be used for controlling the color system and theming.

These default colours include:

  • Variants of Primary and Secondary colours
  • Contextual messaging colors for alerts
  • Additional UI colors for things such as; backgrounds, surfaces, dividers, and buttons.

The following colors can be referenced by name in places that would otherwise expect a color hex code.

1palette: {
2    primary: {
3      light: '#effbff',
4      main: '#00A9E0',
5      dark: '#027ECE',
6      contrastText: '#FFFFFF'
7    },
8    secondary: {
9      light: '#FBF2FF',
10      main: '#552AA8',
11      dark: '#26005C',
12      contrastText: '#FFFFFF',
13    },
14    text: {
15      secondary: '#53565A',
16      hint: '#999',
17    },
18    background: {
19      default: '#FFF',
20    },
21    mystique: {
22      colours: {
23        structure: {
24          border: '#D4D6D8',
25        },
26        compliance: {
27          success: '#4CAF50',
28          warning: '#EF8F00',
29          error: '#D23B3B',
30        },
31        constants: {
32          white: '#FFF',
33          black: '#000',
34          lightgrey: '#F5F5F5',
35        },
36      },
37    },
38  },

Language: plain_text

Name: Color Palette CSS

Description:

[Warning: empty required content area]
Primary Color Palette

The color theme displayed most frequently in your WebApp. Use these to distinguish elements within a component, you can apply Primary Dark and Primary Light to provide more color variants.

Usage Examples

Primary color can be used in iconography, themed text, clickable text (for e.g. links), tags, top bar and navigation bar.

No alt provided
Secondary Color Palette

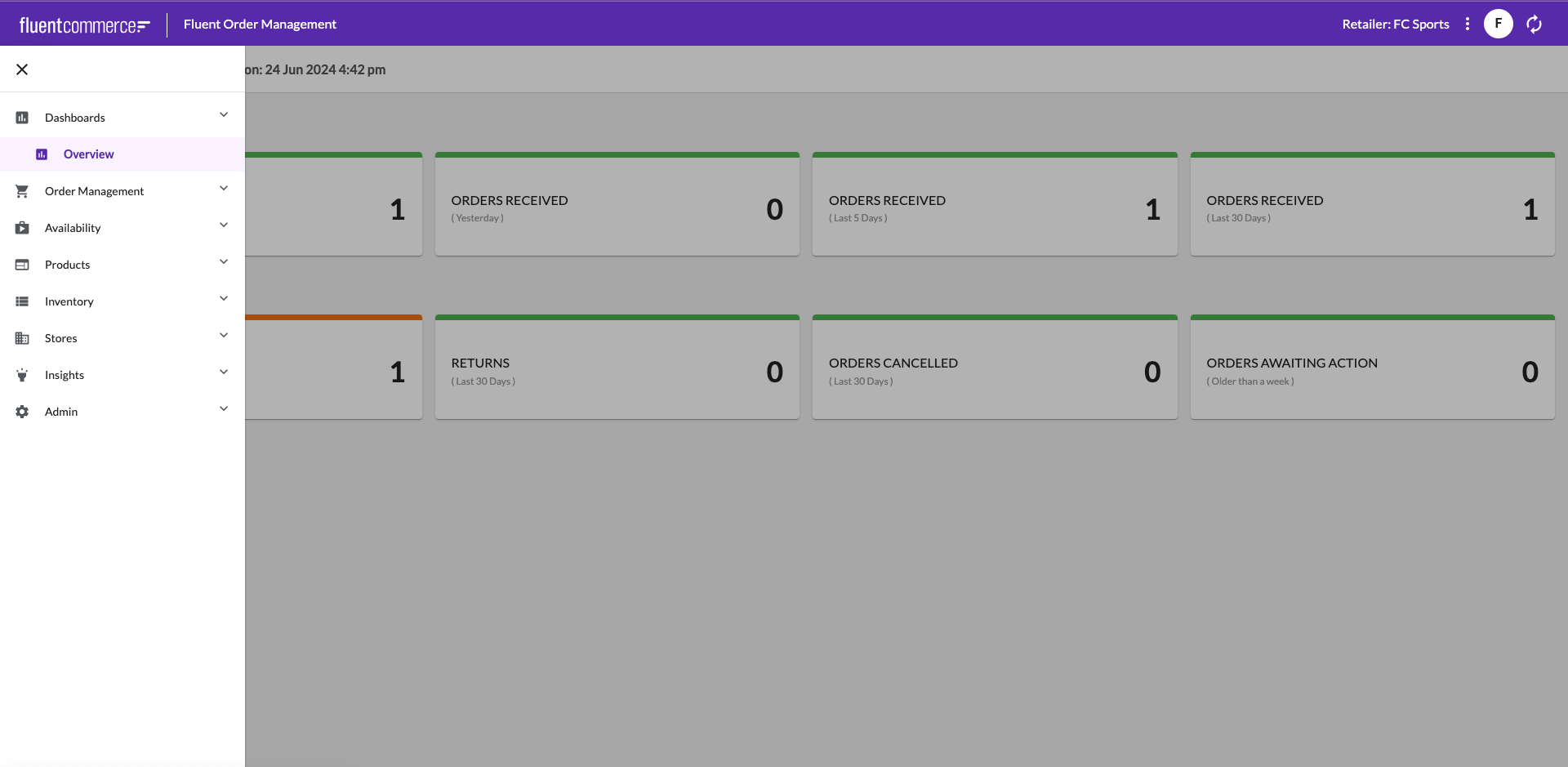

Secondary colors allow you to provide another way to distinguish your WebApps and select parts of the UI such as when hovering over a navigation menu item like below. You can apply Secondary Dark and Light to provide more color variants.

No alt provided
Usage Examples

Secondary colors can be used in sliders, switches, highlighting selected text, progress bars, links and headlines.

No alt provided

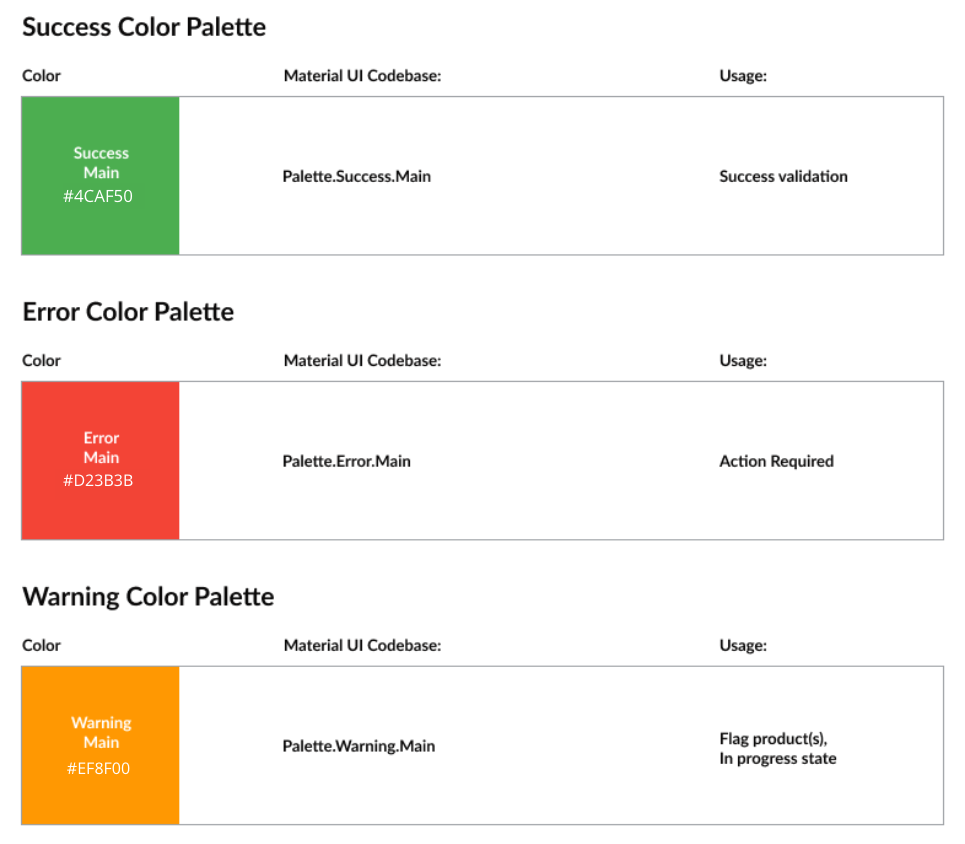

Reserved colors for Alerts

These colours are reserved for contextual messaging, they will only be applied on alert components.

Usage Examples
No alt provided

Success

Used to indicate the successful completion of an action that user triggered.

Error

Used to represent interface elements that the user should be made aware of.

Warning

Used to represent potentially dangerous actions or important messages.

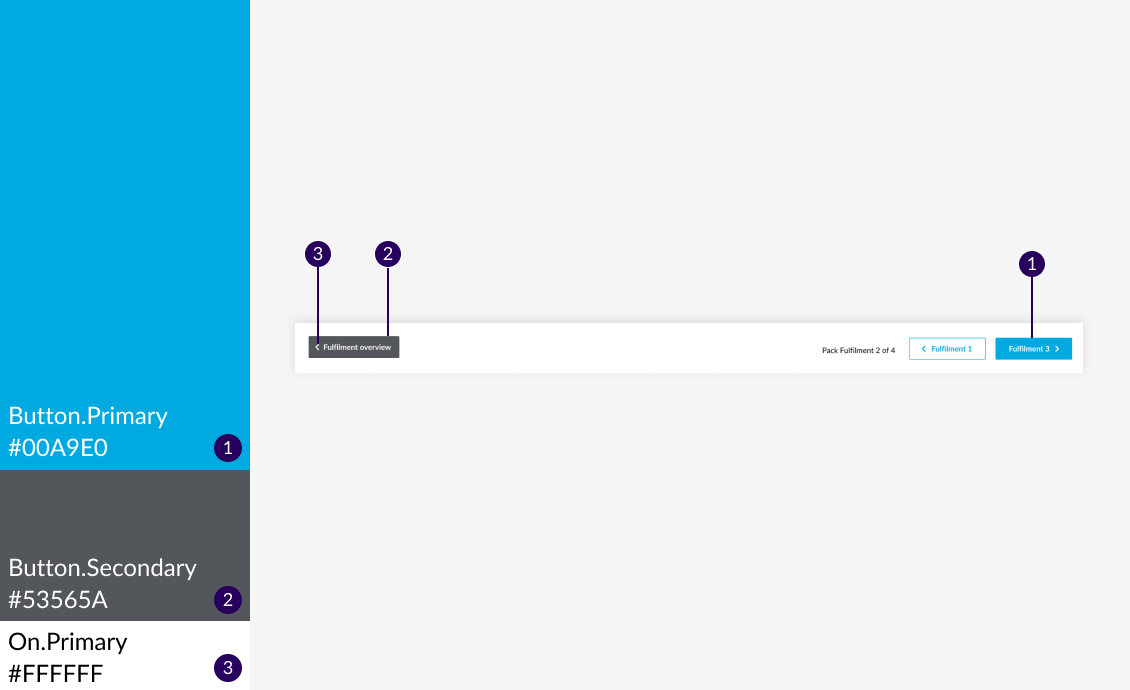

Buttons, Texts, and Dividers

UI colors are available for Buttons, Text, and Dividers. The button color should always be a color that allows white color text and iconography to be applied on the surface with strong contrast.

No alt provided

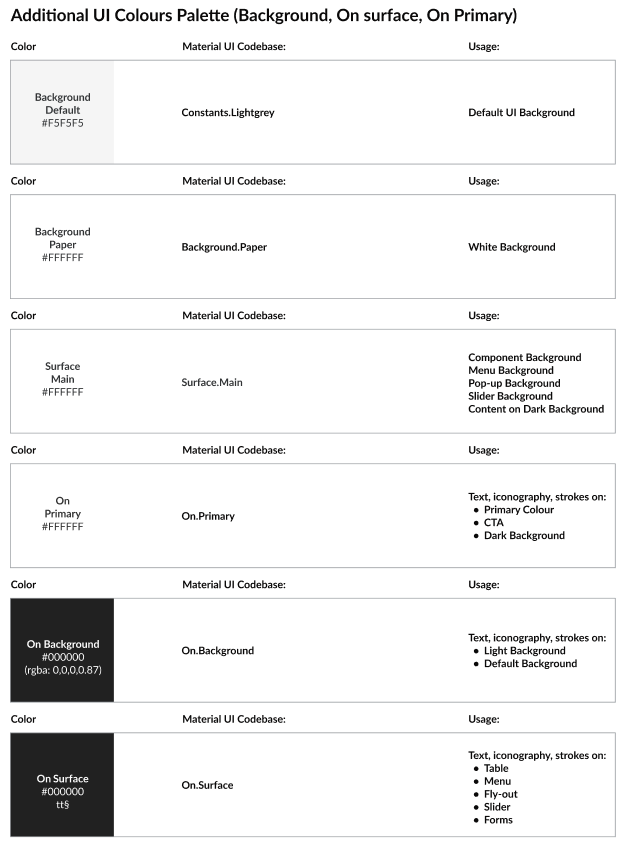

Background, Surface, and Text on Background/Surface
No alt provided

Background & Surface are usually in pure white in most scenario except the default base background color. This is to distinguish from other components and allow other colours to be applied on the surface or in the background.

Typography

The OMX Design System provides a set of typographic styles and guidelines for using the font. These styles have been mapped to their usage throughout the platform.

1const TypogStyles = (theme: Theme): Record<TypographyVariant, CSSProperties> => ({
2  'heading-1': {
3    fontSize: '20px',
4    lineHeight: '24px',
5    fontWeight: 400,
6  },
7  'heading-2': {
8    fontSize: '20px',
9    lineHeight: '24px',
10    fontWeight: 700,
11  },
12  'heading-3-title': {
13    fontSize: '16px',
14    lineHeight: '24px',
15    fontWeight: 400,
16    textTransform: 'capitalize',
17  },
18  'heading-3-uppercase': {
19    fontSize: '16px',
20    lineHeight: '24px',
21    fontWeight: 400,
22    textTransform: 'uppercase',
23  },
24  'heading-4': {
25    fontSize: '14px',
26    lineHeight: '20px',
27    fontWeight: 700,
28  },
29  'heading-5': {
30    fontSize: '13px',
31    lineHeight: '20px',
32    fontWeight: 700,
33    textTransform: 'uppercase',
34  },
35  'heading-6': {
36    fontSize: '14px',
37    lineHeight: '16px',
38    fontWeight: 400,
39    color: theme.palette.text.hint,
40  },
41  'body-1': {
42    fontSize: '14px',
43    lineHeight: '24px',
44    fontWeight: 400,
45  },
46  'body-2': {
47    fontSize: '16px',
48    lineHeight: '24px',
49    fontWeight: 700,
50    color: theme.palette.text.secondary,
51  },
52  'small-text-1': {
53    fontSize: '12px',
54    lineHeight: '16px',
55    fontWeight: 400,
56    color: theme.palette.text.hint,
57  },
58  'small-text-1-bold': {
59    fontSize: '12px',
60    lineHeight: '16px',
61    fontWeight: 700,
62    color: theme.palette.text.hint,
63  },
64});

Language: plain_text

Name: Typography Theme CSS

Description:

[Warning: empty required content area]

Fluent Commerce Typography Theme

Style and CSS

Usage

Heading 1

fontSize: 20px
lineHeight: 24px
fontWeight: 400

  • Page header

Heading 2

fontSize: 20px
lineHeight: 24px
fontWeight: 700

  • In-page headers

Heading 3 - title

fontSize: 16px
lineHeight: 24px
fontWeight: 400

textTransform: capitalize

  • Card heading
  • Title text

Heading 3 - uppercase

fontSize: 16px
lineHeight: 24px
fontWeight: 400

textTransform: uppercase

  • Drawer titles

Heading 4

fontSize: 14px
lineHeight: 20px
fontWeight: 700

  • Card header
  • Modal headings
  • Tab labels
  • Buttons

Heading 5

fontSize: 13px
lineHeight: 20px
fontWeight: 700

textTransform: uppercase

  • Form field labels
  • Text buttons

Heading 6

fontSize: 14px
lineHeight: 16px
fontWeight: 400

color: theme palette text hint

  • Attribute titles

Body 1

fontSize: 14px
lineHeight: 24px
fontWeight: 400

  • Content
  • Body

Body 2

fontSize: 16px
lineHeight: 24px
fontWeight: 700

color: theme palette text secondary

  • Content Title
  • Body Title

Small text 1

fontSize: 12px
lineHeight: 16px
fontWeight: 400

color: theme palette text hint

  • Attribute titles

Small text 1 - bold

fontSize: 12px
lineHeight: 16px
fontWeight: 700

color: theme palette text hint

  • Attributes
