Product Card Component

UI Component

Changed on:

19 July 2024

Overview

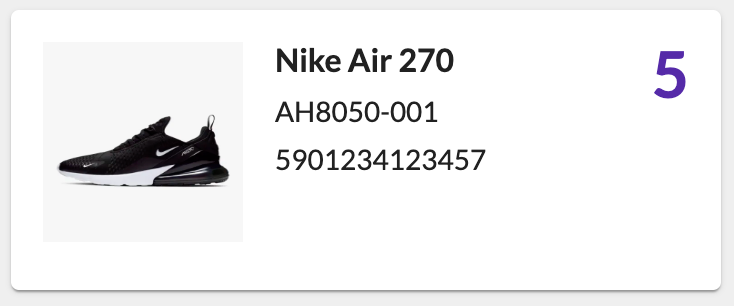

The Product Card Component is a consistent way to represent product information across the applications. Alongside the typical card features it can also display an image, attributes, a count, and a close icon, while also allowing nested components for added functionality.

Plugin Name	Core

The standard library of mystique components.

0000-00-00

v1.0.0

Initial changelog entry.

Alias

fc.card.product

Detailed technical description

Various child components can be placed inside the card to extend basic functionality. If composing the component with others is necessary, using the card without an indent will avoid extra spacing.

1{
2    "component": "fc.card.product",
3    "props": {
4        "title": "Nike Air 270",
5        "cardImage": {
6            "imageUrl": "https://c.static-nike.com/a/images/f_auto,b_rgb:f5f5f5,w_440/skwgyqrbfzhu6uyeh0gg/air-max-270-shoe-nnTrqDGR.jpg",
7            "width": "100px",
8            "height": "100px"
9        },
10        "width": 4,
11        "attributes": [
12            {"value": "AH8050-001", "label": "ref"},
13            {"value": "5901234123457", "label": "gtin"}
14        ],
15        "descendants": [
16            {
17                "component": "fc.accordion",
18                "props": {
19                    "noCard": true,
20                    "defaultExpanded": false,
21                    "summary": "Product Details",
22                    "details": "A blend of cutting-edge comfort and street-smart style, designed for those who demand peak performance and unmatched durability. Elevate your everyday look while enjoying cloud-like cushioning and unbeatable traction with every step."
23                }
24            }
25        ]
26    }
27}

Language: json

Name: Product Card with an Accordion inside

Description:

Product Card configuration with an accordion inside

Example:

Product Card utilization and other configuration options

Using the List component offers a transition from desktop to mobile view. When the view changes, each table row transforms into a card. The Product card can be used to override the list mobile view via
```
`rowComponent`
```
property.
The component can be configured via manifest or utilized during custom component development. Read more about its configuration options in the Utility Components.

Properties

Name	Type	Required	Default	Description
title	`string`	no	none	The Title text of the card
attributes	`TextDynamicAttribute[]`	no	[]	List of key/value pairs to show on the card
count	`number`	no	none	Number that is displayed in the to right corner of the card.
cardImage	`CardImageProps`	no	none	An object containing image URL and dimensions (width and height)
width	`CardWidth ("quarter"/ "third"/ "half"/ "two-thirds"/ "full"/ number (1-12))`	no	12	Define the width of this card on a 12-column grid. Can use the named widths for readability or numbers directly. On mobile devices, all widths will automatically change to 12 for the best responsive experience.
indent	`boolean`	no	true	Card padding switcher.

CardImageProperties

Name	Type	Required	Default	Description
height	`string`	no	-	Image height
width	`string`	mo	-	Image width
imageUrl	`string`	no	-	Image URL

Configuration example

1{
2  "component": "fc.card.product",
3  "props": {
4    "title": "Nike Air 270",
5    "cardImage": {
6      "imageUrl": "https://c.static-nike.com/a/images/f_auto,b_rgb:f5f5f5,w_440/skwgyqrbfzhu6uyeh0gg/air-max-270-shoe-nnTrqDGR.jpg",
7      "width": "100px",
8      "height": "100px"
9    },
10    "width": 4,
11    "attributes": [
12      { "value": "AH8050-001"},
13      { "value": "5901234123457"}
14    ],
15    "count": 5
16  }
17}

Language: json

Version History

2024-07-22

v24.7.22

The initial release

Recommended Placement

The component can be placed in pages, drawers, lists.
