Key Points

It is possible to use the generic SAML configuration to add an external identity provider that follows the SAML standard.
Steps to configure an external identity provider via SAML configuration

Steps

Configuring Entra ID & Azure AD – Same Steps, New Name

This guide covers the configuration steps for both Azure Active Directory (Azure AD) and Microsoft Entra ID. The setup process remains the same, with only minor differences in naming—"Active Directory" in Azure AD is now "Applications" in Microsoft Entra ID.For more details on the name change, see Microsoft’s official documentation.

Overview

It is possible to use the generic SAML configuration to add an external identity provider that follows the SAML standard. To configure an external identity provider via SAML configuration, it is required to do the following.

Registering application with Microsoft

Prerequisites

Ensure that you have:

A Microsoft Azure account with an active subscription
An Azure AD tenant

To set up Microsoft as an external identity provider for the application, it is required to register the application with Microsoft.

Access Microsoft Azure Portal

Go to Microsoft Azure portal. If one doesn’t have a Microsoft Azure account, they can create one.

Access Azure Active Directory

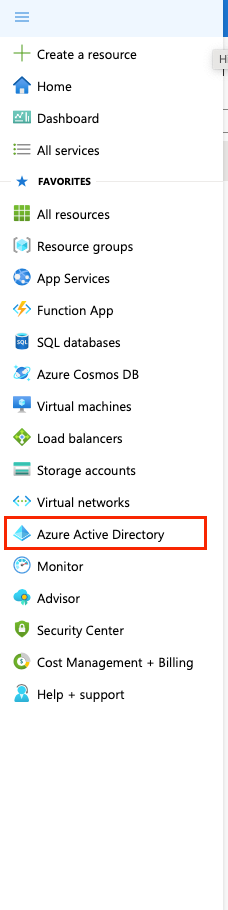

Under Azure services, click Azure Active Directory. No alt provided

Access Enterprise applications

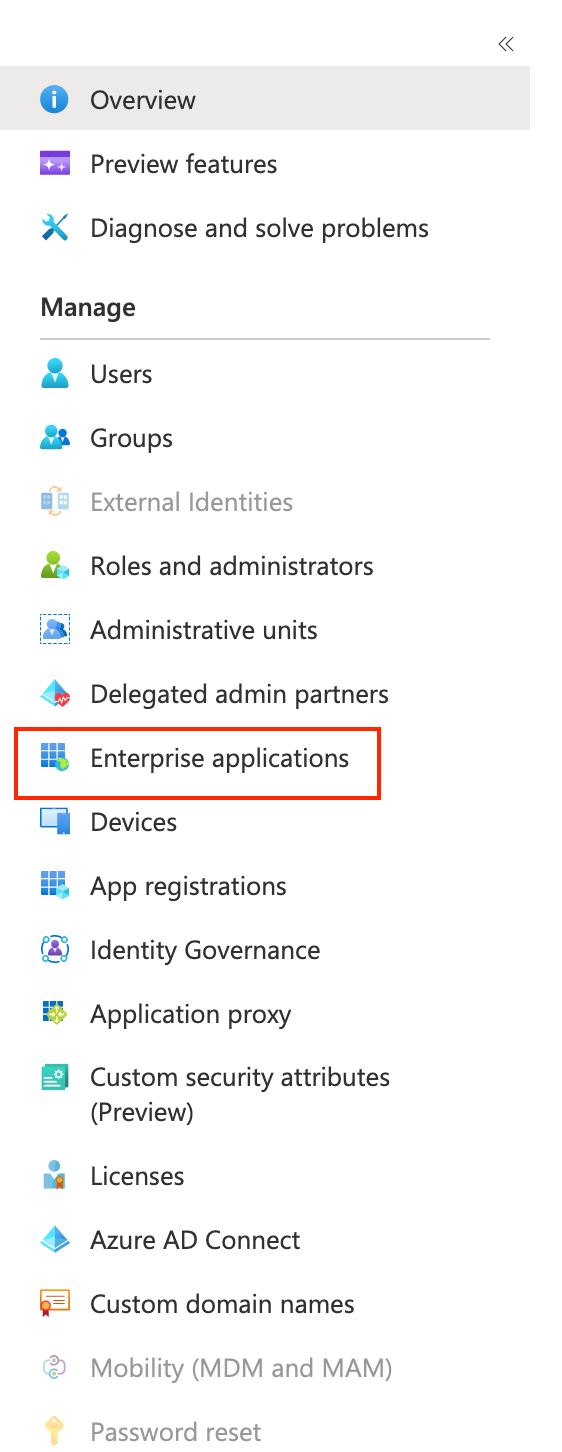

On the left, click Enterprise applications. No alt provided

Create New Application

At the top, click New application and then click button Create your own application.

Configure Application

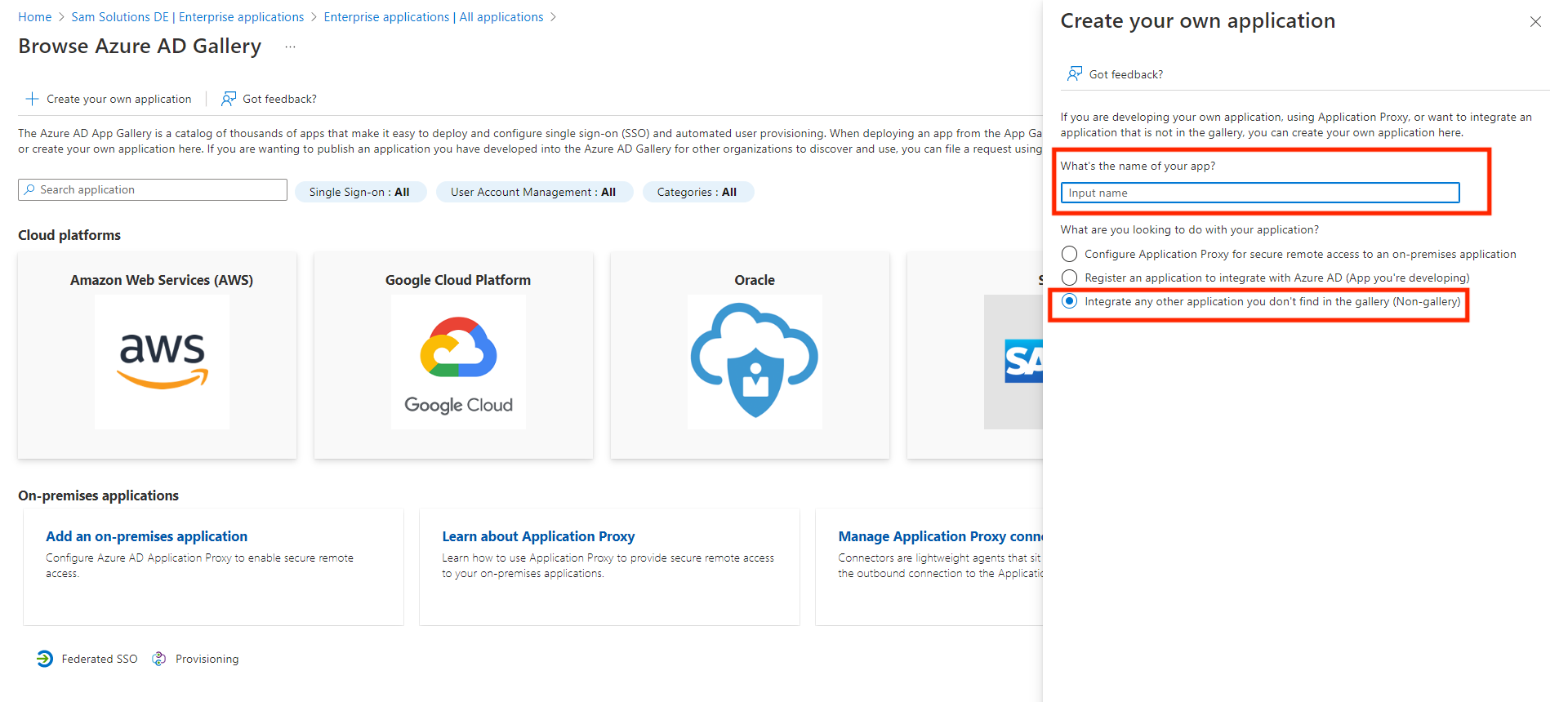

On the appeared drawer input application name, select Integrate any other applications you don’t find in the gallery (Non-gallery) option and then click Create button in the bottom of the drawer. No alt provided

Configuration

Access Enterprise Application in Azure Portal

Go to Microsoft Azure portal and select your Enterprise application. No alt provided

Navigate to Single Sign-On: SAML

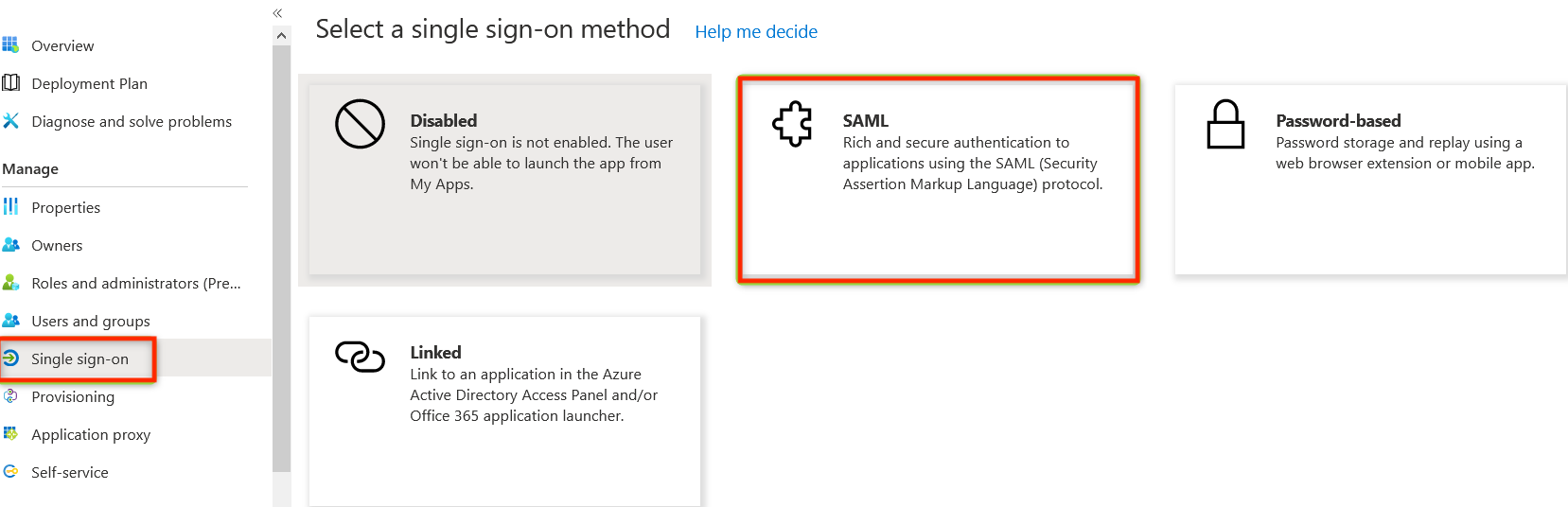

On the left menu, click Single sign-on and select SAML. No alt provided

Edit Basic SAML Configuration

Click on Edit icon on the Basic SAML Configuration card. It is necessary to fill Identifier and Reply URL fields on the drawer. To do so, click on Add Identifier and Add reply URL buttons. No alt provided

Note

Unless configured do not close Azure and PingOne tabs/windows in the browser.

Set Up External IdP in PingOne

To fill the values from the previous step, we need to create an External IdP in PingOne. Go to Connections → External IDPs and click + Add Provider. No alt provided

Configure SAML Profile

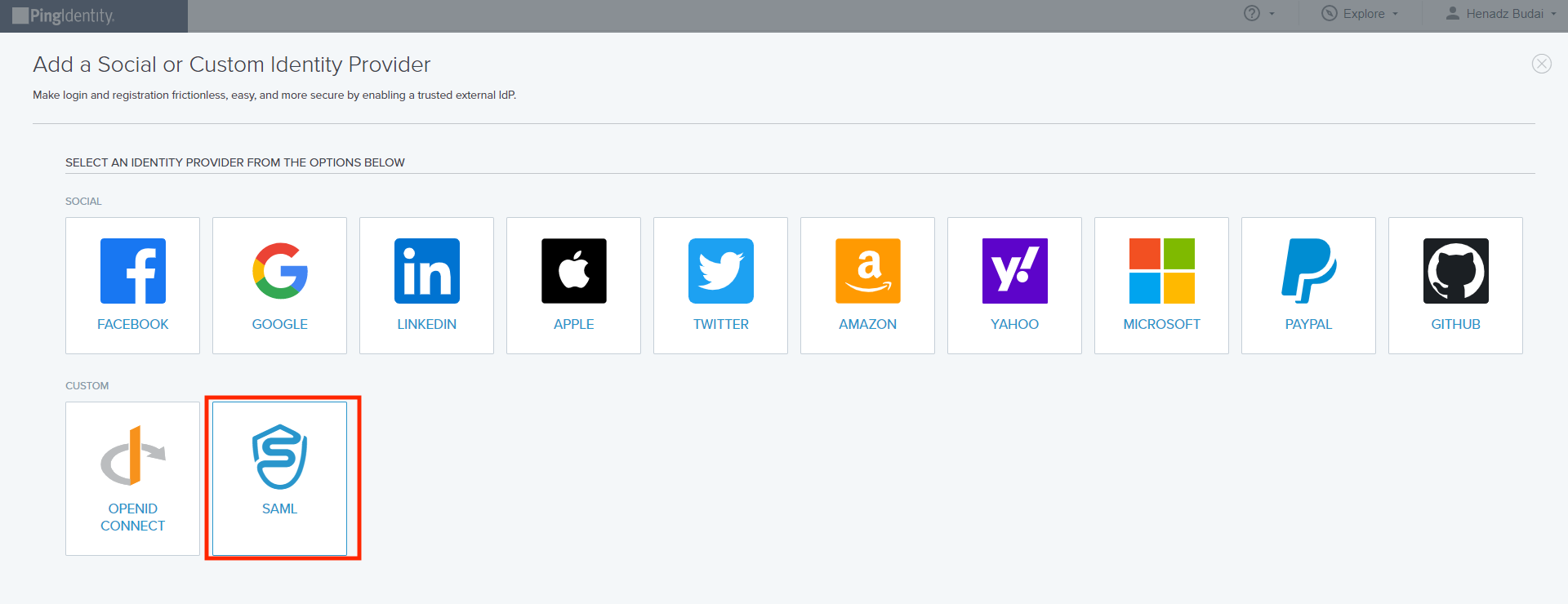

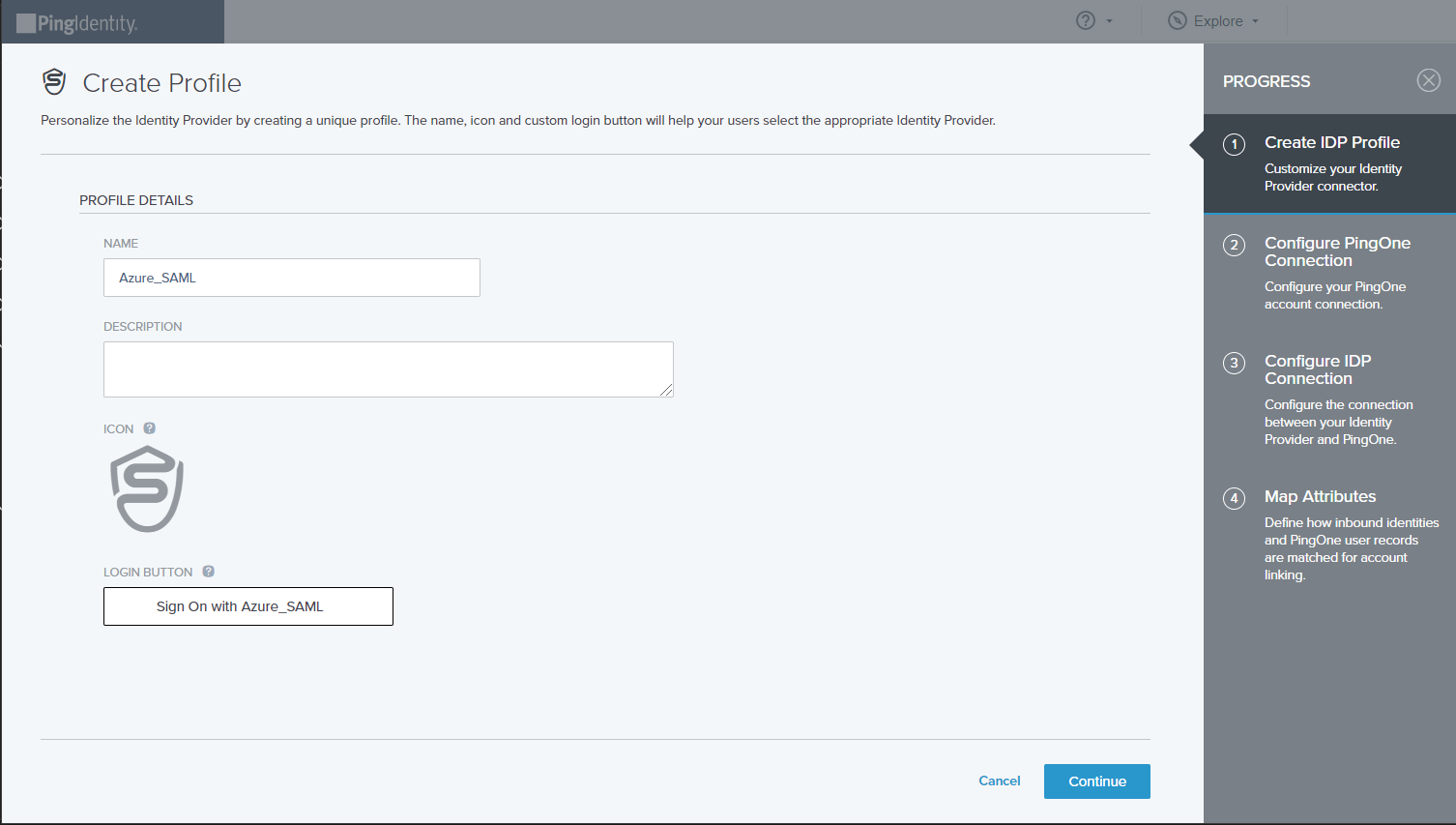

Click SAML. Then on the Create Profile screen, enter the following:

Name. A unique identifier for the identity provider.
Description (optional). A brief characterization of the identity provider.
Icon (optional). An image to represent the identity provider. Use a file up to 1MB in JPG, JPEG, GIF, or PNG format.
Login button (optional). An image will be used for the login button that the end user will see. Use a 300 X 42-pixel image.

Click Continue.

Copy PingOne (SP) Entity ID to Azure

On the Configure PingOne Connection screen, copy the PingOne (SP) entity ID and put the value into the Identifier field on the Basic SAML Configuration drawer in Azure (see Edit Basic SAML Configuration step). No alt provided

Then click Continue. No alt provided

Copy ACS Endpoint to Azure and Save

On the Configure IDP Connection screen, copy ACS ENDPOINT and fill the copied value into the Reply URL field on the Basic SAML Configuration drawer in Azure (see Edit Basic SAML Configuration step). No alt provided

Click the Save button on the Basic SAML Configuration drawer in Azure. No alt provided

Copy App Federation Metadata URL and Import to PingOne

In the SAML Certificates card, copy the App Federation Metadata URL. No alt provided

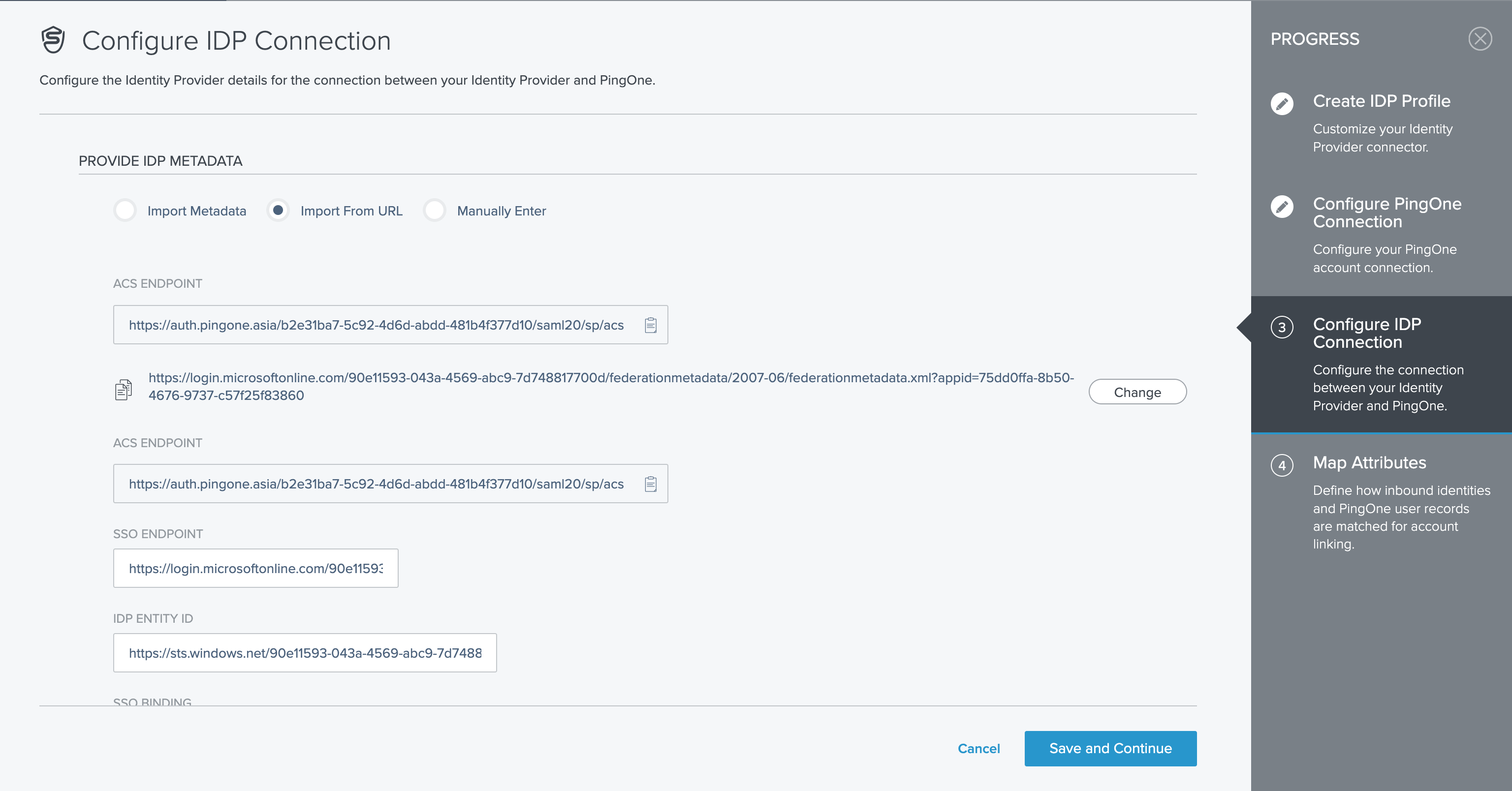

Afterward, go back to PingOne and select the option Import from URL on the Configure IDP Connection screen, paste the App Federation Metadata URL, and click Import. No alt provided

Click Save and Continue.

Complete SAML configuration

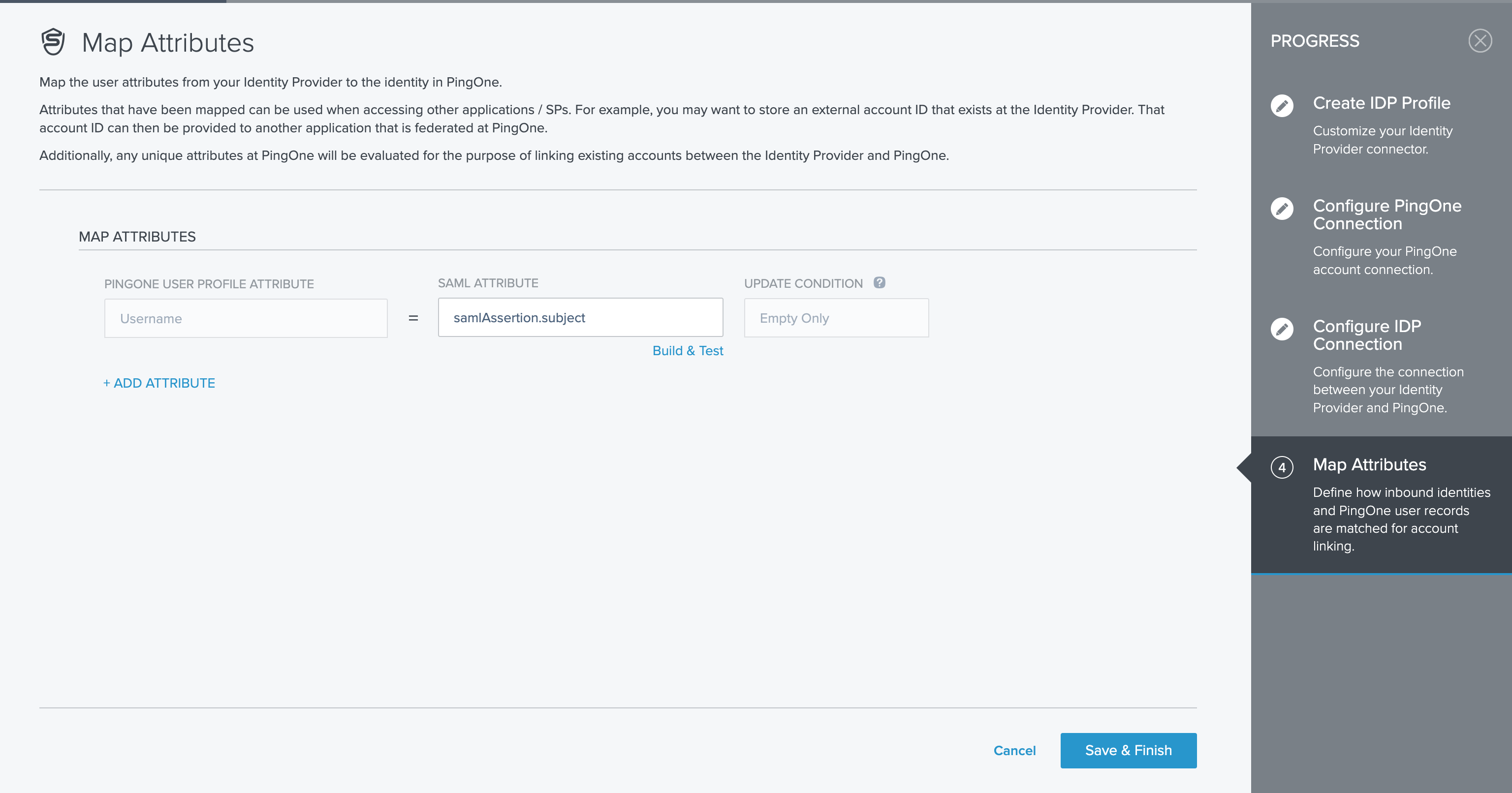

On the Map Attributes screen, click Save&Finish. No alt provided

Do not forget

Enable External Identity Provider and Add to Authentication Policy

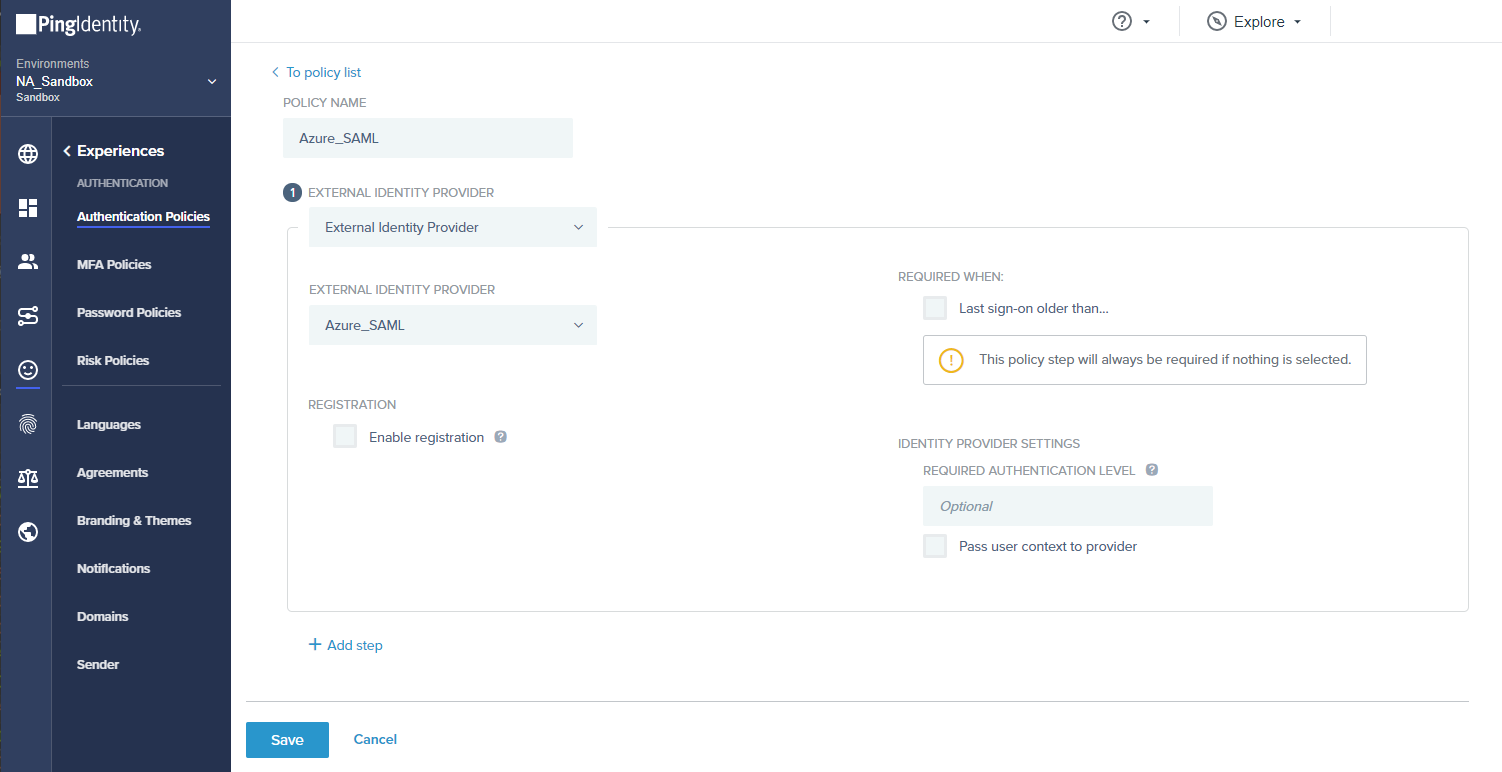

1. Enable the External Identity Provider.2. Create a new Authentication Policy and add the newly created External Identity Provider to it. No alt provided

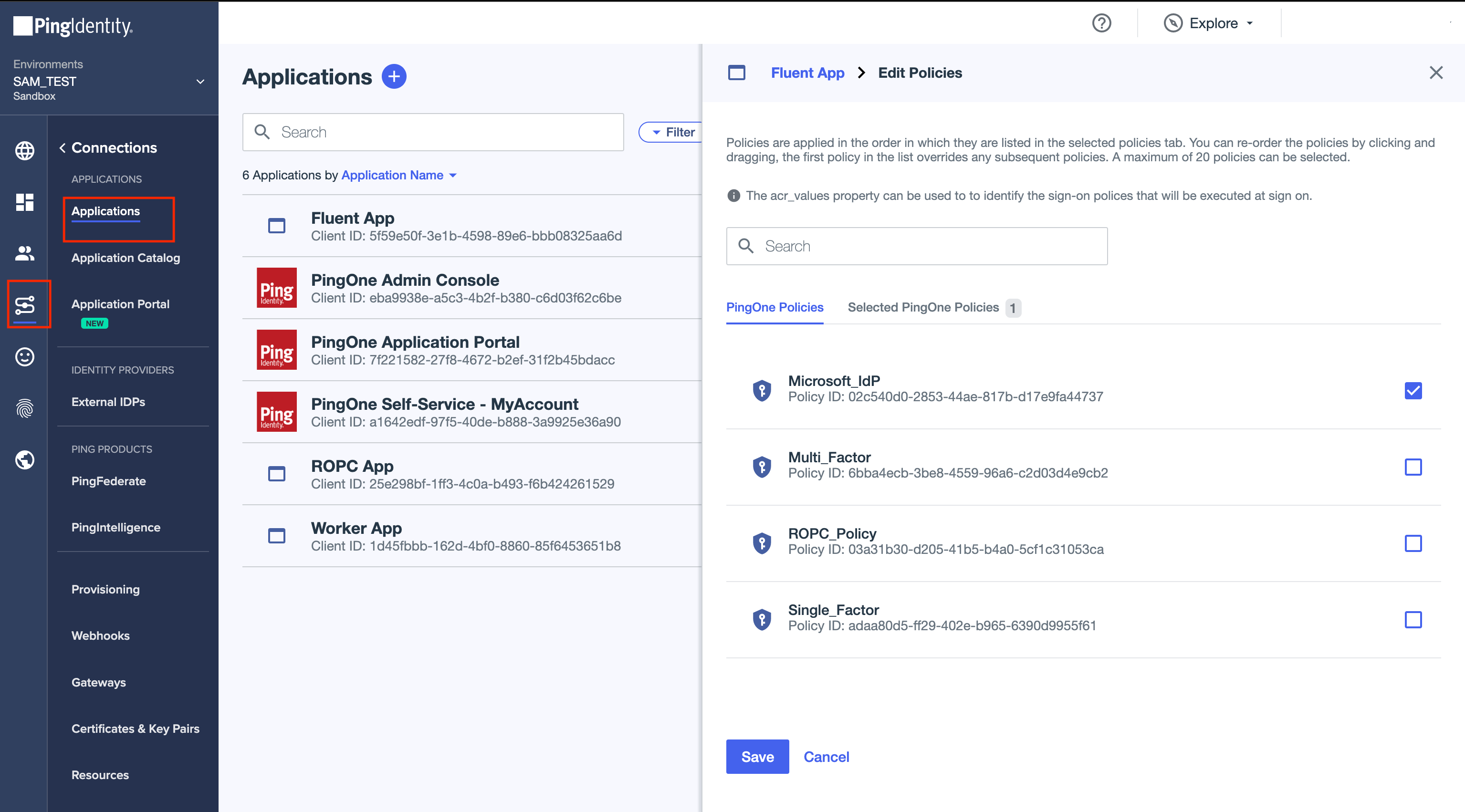

3. Add the Authentication Policy to the application. No alt provided

Decide which users from the company should have access to Fluent App

Access the Microsoft Azure portal, navigate to Enterprise applications, then All applications, and select your application. Go to the Manage section and select Users and groups. Then, proceed by clicking the Add user/group button to assign users and groups to application roles for the specific application. No alt provided

Azure Single Logout configuration

Read more about Azure Single Logout configuration in the guide.
