Overview

This article explains the logic that triggers the creation of a wave. Commonly, waves are created based on the fulfillment expiry time. Alternatively, the logic can be based on specific attributes of identified items (e.g. bulk items). Making this change can help facilitate a more efficient picking process according to the store layout.

User actions can be created throughout the wave process to reinforce specific business procedures. For example, we can ensure that in-store staff confirms the completion of the picking phase by using a confirmation dialogue box.

Domain Area:	The Location workflow provides the capability to alter the pick and pack process to best suit business needs.

Package

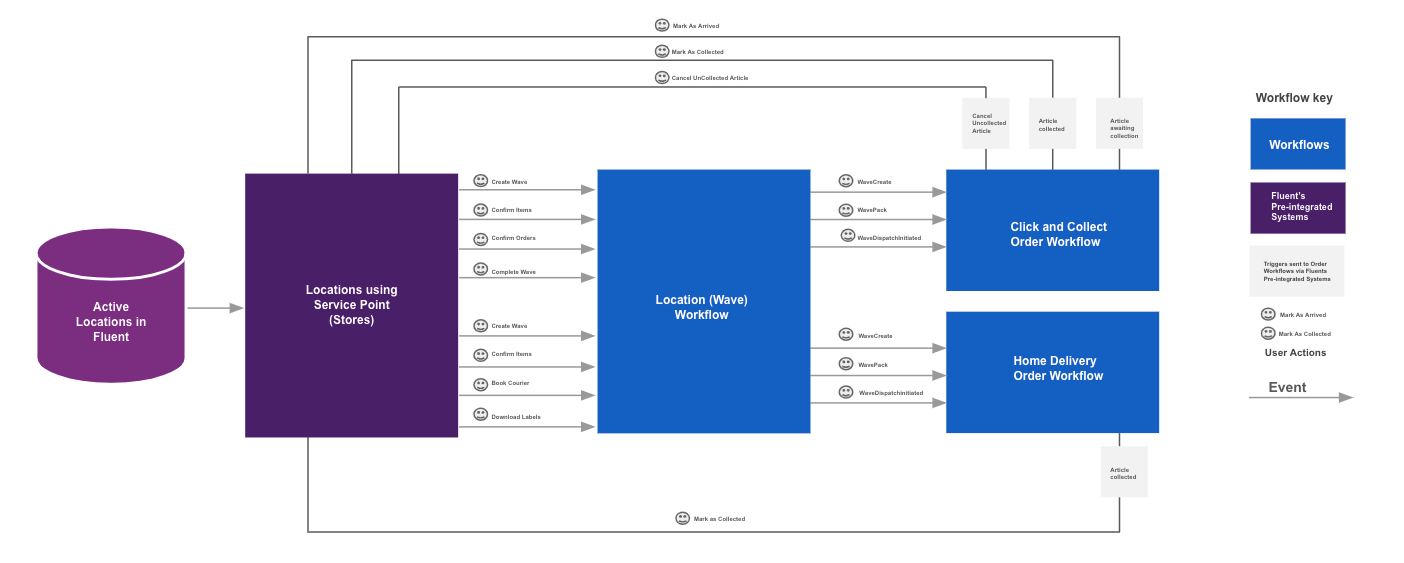

Diagram

Features

commercetools connector - Location Sync

A Location is any place where an order can be fulfilled and/or collected by the customer. Locations can include a physical store, warehouse, drop ship vendor, lockers or third-party collection points. Locations will be synced from Fluent to commercetools. The existing entity in commercetools for Fluent location is Channel.

Detailed Technical Description

Features

The base location workflow provides the following features:

Create a Wave

Create Wave based on the expiry time of the fulfilments. Add fulfilments to a wave, which will expire the soonest so that orders can be fulfilled in ascending order of their expiry time, and serve the online customers on a first in best-dressed principle.

it is possible to specify the expiry time frame in the workflow to create a wave. Example: Add fulfilments to wave that expire in 1 day. To add fulfilments to wave that will expire the soonest, you will need to specify the time as 0(Zero) in the workflow.
This feature helps you sort the fulfilments, on the storefront, in Fluent's servicepoint application, based on the criterion you want to use to fulfill your online orders - Example: you may choose to fulfill the fulfilments based on a delivery option, say Express Delivery/ or sales value.
Based on the criterion set in the location workflow, for adding fulfilments to a wave, the fulfilments meeting the criterion will be prioritized over other fulfilments waiting to be fulfilled.

Confirm Picks

Allocate picked items to fulfilments based on the expiry time of fulfilments. Allocate items to those fulfilments in a wave, which will expire the soonest so that orders can be fulfilled in ascending order of their expiry time, and serve the online customers on a first in best-dressed principle.

The criterion set above, for creating wave should match with the one set for allocating picked items to the fulfillment in the wave.
At this stage, when the picked items are confirmed and allocated amongst the fulfilments in the wave, the status of wave changes to PACK.
An event WavePack is sent to ALL Fulfilments of the wave - to commit the items confirmed for each fulfillment and change status of the fulfillment according to the number of items confirmed.
Example: If all items confirmed, then fulfillment status changes to FULFILLED.

Dispatch Waves

Pack stage is complete - Create Articles, consignment and book Couriers.Create articles and consignment in the Fluent System for Home Delivery Orders and Click and Collect orders, that need to be transferred to a Collection Point from another fulfilling store, so that couriers can be booked and orders can be shipped to customers and collection points.

For clients booking couriers outside the scope of the fluent system, this will be an integration point and an event, same as internal event WaveDispatch will be required with Article and consignment information, for the workflow to create Article and Consignment within Fluent System and end the pick pack dispatch process.
The WaveDispatch event is initiated by the user action: Download Labels (for a wave containing HD orders only ) and user action: Confirm Orders (for a wave containing CC orders only ).
For a wave that has a mix of CC and HD orders - the user action will be Download Labels.

Complete Waves

Couriers are Booked, wave process is Complete.Complete each wave after it has been processed successfully so that the completed waves and their corresponding fulfilments can be updated.

Interface Details

Create

Given a location has been created and is in the status ACTIVE

Source Entity	Source/Source EventName	To EventName	To Entity	Type
LOCATION	Location Workflow/ CREATE	EventAPI/ CREATE	LOCATION	Event API

1{
2    "name": "CREATE",
3    "description": "A location has been created. Activate the location.",
4    "type": "LOCATION",
5    "eventType": "NORMAL",
6    "rules": [
7        {
8            "name": "FLUENTRETAIL.base.ChangeState",
9            "props": {
10                "status": "ACTIVE"
11            }
12        }
13    ],
14    "triggers": [
15        {
16            "status": "CREATED"
17        }
18    ],
19    "userActions": []
20}

WaveCreate

Create a wave for the Active location.

Source Entity	Source/Source EventName	To EventName	To Entity	Type
LOCATION	Servicepoint User Action/Location Workflow/ WaveCreate	Fluent Order Workflow	FULFILLMENT	User Action/Event API/WaveCreate

1{
2    "id": "1",
3    "name": "WaveCreate",
4    "accountId": "ACME",
5    "retailerId": "1",
6    "entityId": "123",
7    "entityRef": "F_123",
8    "entityType": "FULFILMENT",
9    "entitySubtype": "CC_PFS",
10    "entityStatus": "AWAITING_WAVE",
11    "type": "NORMAL",
12    "attributes": {
13        "rootEntityRef": "O_123",
14        "rootEntityType": "ORDER",
15        "rootEntityId": "123"
16    }
17}

PickConfirm / WavePack

items Confirmed in a wave/ Wave is in pack status in ServicePoint

Source Entity	Source/Source EventName	To EventName	To Entity	Type
WAVE	Location Workflow/ServicePoint/ PickConfirm	OrderApp / CC Workflow/ WavePack	FULFILLMENT	User Action Event / EventAPI

1{
2"name": "WavePack",
3"accountId": "ACME",
4"retailerId": "1",
5"entityId": "123",
6"entityRef": "F_123",
7"entityType": "FULFILMENT",
8"entitySubtype": "CC_PFS",
9"entityStatus": "ASSIGNED",
10"type": "NORMAL",
11"attributes": {
12    "rootEntityRef": "O_123",
13    "fulfilmentItems": [
14        {
15            "fulfilmentItemRef": "FI_1",
16            "orderItemId": "1",
17            "orderItemRef": "OI_1",
18            "skuRef": "PRD_1",
19            "requestedQty": 1,
20            "rejectedQty": 0,
21            "availableQty": 1
22        }
23    ],
24    "pickedItems": [
25        {
26            "skuRef": "PRD_1",//skuRef
27            "barcode": 123456,
28            "availableQty": 1
29        }
30    ],
31    "rootEntityType": "ORDER",
32    "rootEntityId": "123",
33    "barCodes": {}
34}

WaveDispatch

Wave Dispatch started after the wave is picked and packed.

Source Entity	Source/Source EventName	To EventName	To Entity	Type
WAVE	Location Workflow / WaveDispatch	OrderApp / WaveDispatchInitiated		User Action Event / EventAPI

1{
2    "name": "WaveDispatchInitiated",
3    "accountId": "ACME",
4    "retailerId": "1",
5    "entityId": "123",
6    "entityRef": "F_123",
7    "entityType": "FULFILMENT",
8    "entitySubtype": "CC_PFS",
9    "entityStatus": "FULFILLED",
10    "type": "NORMAL",
11    "attributes": {
12        "rootEntityRef": "O_123",
13        "rootEntityType": "ORDER",
14        "rootEntityId": "123"
15    }
16}

WaveComplete / DownloadLabels

Complete the wave.

Source Entity	Source/Source EventName	To EventName	To Entity	Type
WAVE	Location Workflow / Servicepoint/WaveComplete	Location Workflow / WaveComplete	WAVE	User Action Event / EventAPI

1{
2    "name": "WaveComplete",
3    "accountId":"ACME",
4    "retailerId": "1",
5    "context": {
6        "entityType": "WAVE",
7        "entityId": "1",
8        "entityRef": "1",
9        "rootEntityType": "LOCATION",
10        "rootEntityId": "4",
11        "rootEntityRef": "LOC_4"
12    },
13    "attributes": []
14}

MarkAsArrived / ArticleArrived

The article arrives in store and is awaiting Collection by Customer

Source Entity	Source/Source EventName	To EventName	To Entity	Type
ARTICLE	Servicepoint/ UserAction MarkAsArrived	Order Workflow/ArticleArrived	ARTICLE	EventAPI/ User action
