commercetools connector - Location Sync

Feature

Changed on:

31 Jan 2024

Overview

A Location is any place where an order can be fulfilled and/or collected by the customer. Locations can include a physical store, warehouse, drop ship vendor, lockers or third-party collection points. Locations will be synced from Fluent to commercetools. The existing entity in commercetools for Fluent location is Channel.

Detailed Technical Description

The location will be synced from Fluent to commercetools via a job. The job will consist of a timestamp parameter to be set in fluent Settings. On behalf of setting values ie. dates, and props such as network, commercetools channel details will get created/updated in the merchant center.

`Setting Name: fc.connect.commerce-tools.batch.batch-location-sync`

1{
2    "previousEndDate": "2022-10-20T04:12:44.707061681",
3    "props": {
4        "fluentNetworkRef": "BASE_1"
5    },
6    "lastRun": {
7        "param": {
8            "start": "2022-10-19T04:12:45.104341414",
9            "end": "2022-10-20T04:12:44.707061681",
10            "props": {
11                "fluentNetworkRef": "BASE_1"
12            }
13        },
14        "jobStart": "2022-10-20T04:12:44.615441435",
15        "jobEnd": "2022-10-20T04:12:44.737175454",
16        "status": "SUCCESSFUL"
17    }
18}

Language: json

Name: fc.connect.commerce-tools.batch.batch-location-sync

Description:

[Warning: empty required content area]

Location update specification

A GraphQL request looks like shown below:

1query GetLocations($after: String, $first: Int, $updatedOnFrom: DateTime, $updatedOnTo: DateTime) {
2  locations(after: $after, first: $first, updatedOn: {from: $updatedOnFrom, to: $updatedOnTo}) {
3    locationEdge: edges {
4      locationNode: node {
5        ref
6        name
7        supportPhoneNumber
8        createdOn
9        updatedOn
10        type
11        status
12        openingSchedule {
13          allHours,
14          monEnd,
15          monStart,
16          tueEnd,
17          tueStart,
18          wedEnd,
19          wedStart,
20          thuEnd,
21          thuStart,
22          friEnd,
23          friStart,
24          satEnd,
25          satStart,
26          sunEnd,
27          sunStart
28
29        }
30        attributes {
31          name
32          type
33          value
34        }
35        primaryAddress {
36          street
37          city
38          state
39          postcode
40          country
41          region
42          latitude
43          longitude
44          timeZone
45        }
46        networks( first:100) {
47          networkEdge: edges {
48            networkNode: node {
49              ref
50            }
51          }
52        }
53      }
54      cursor
55    }
56    pageInfo {
57      hasNextPage
58    }
59  }
60}

Language: json

Name: A GraphQL request

Description:

[Warning: empty required content area]

Location Sync scenarios

There are two scenarios for sync locations:

  • Full & Partial sync
    • Full & Partial sync should be implemented using a setting in the Fluent configuration interface, commercetools connector fetches all Fluent locations modified since chosen data against the mapped network
  • Delta sync
    • Delta sync can be executed daily on the desired frequency and it fetches all Fluent locations modified since the last sync.

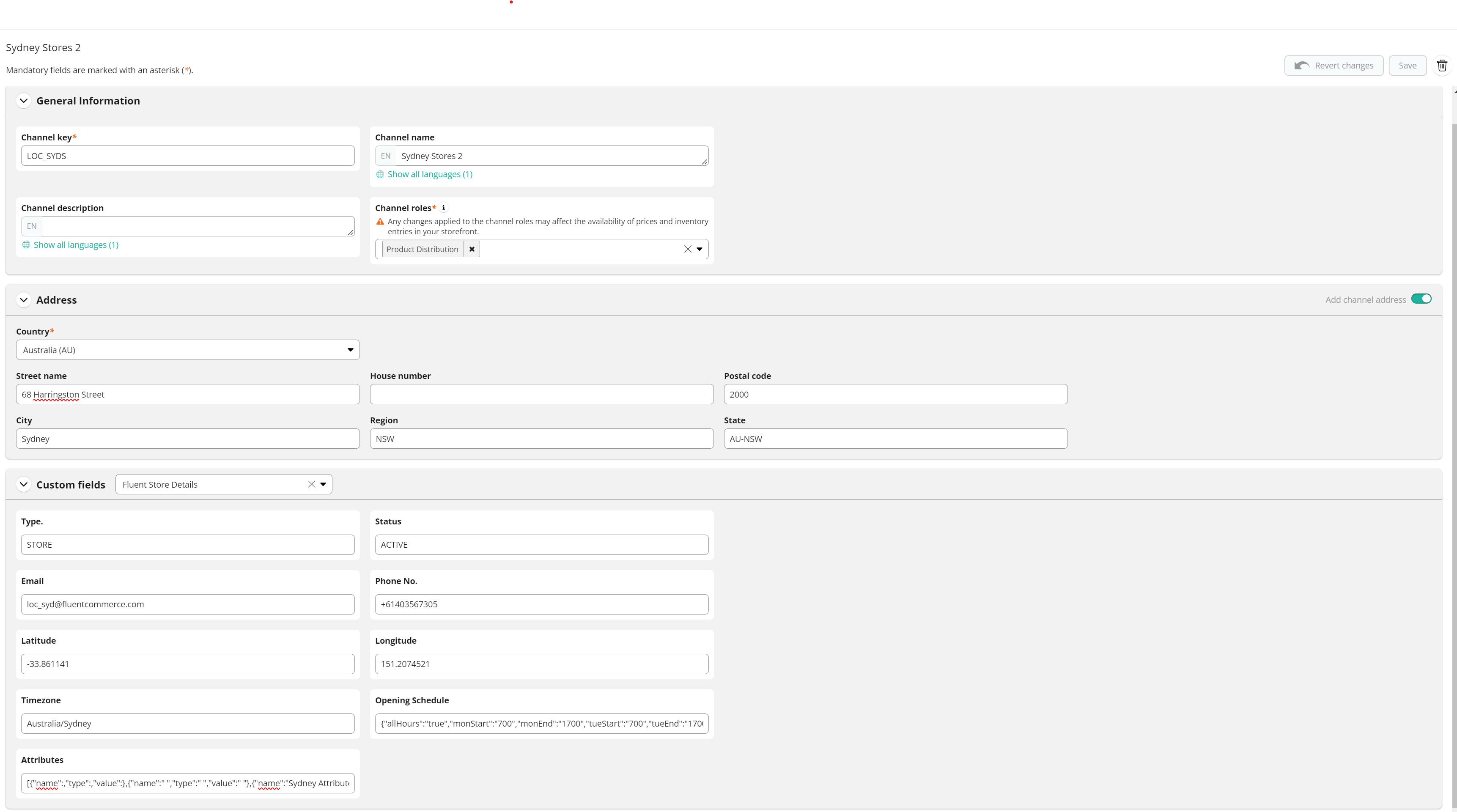

No alt provided

Fields Mapping

The below fields will need to be created and mapped in commercetools to keep all data coming from Fluent

Fluent Field Name

commercetools Field Name

commercetools custom field identifier

Ref

Channel Key


Store Name

Channel Name


Phone

Phone No.

flStorePhoneNo

User Email

Email

flStoreEmail

Type

Type

flStoreType

Status

Status

flStoreStatus

Address Line 1

Street Name


Address Line 2

City


Address Line 3

State


Address Line 4

Postal Code


Address Line 5

Country


Latitude

Latitude

flStoreLatitude

Longitude

Longitude

flStoreLongitude

Timezone

Timezone

flStoreTimezone

Opening Hours

Opening Schedule

flOpeningSchedule

Attributes

Attributes

flStoreAttributes
