IfPropertyIsBetween

Rule

Changed on:

14 May 2024

Overview

Conditionally trigger another Ruleset when the specified entity field or event attribute is between the provided values.

This could be used in between an IfPropertyIsLessThan and an IfPropertyIsGreaterThan Rule to cater for 3 distinct ranges of logic.

Plugin Name	Core Reference Module
Namespace	{{accountId}}.core

The Core Reference Module is a foundational Reference Module. It provides a base set of general purpose Rules that other Modules are built upon or that can be included in your own Workflows. Extensible by design, use this Module as a base to build a solution for the needs of your customers.

Core Reference Module

Overview

The Core Reference Module is a foundational Reference Module. It provides a base set of general purpose Rules that other Modules are built upon or that can be included in your own Workflows. Extensible by design, use this Module as a base to build a solution for the needs of your customers.

Features

General purpose Rules to power your Workflows

Change the state of an entity
Send an event to trigger a Ruleset for the same entity
Send a Webhook
Create conditional logic based on the value or presence of a property

If {jsonpath} is between {lower} and {upper}, do {eventName}

All Orchestration Entities

This Rule conditionally produces a SendEventAction

Name

Type

Description

`jsonpath`

`JsonPath`

The path to the value being compared, see JsonPath.

`lower`

`Object`

Value to compare lower bounds against.

`upper`

`Object`

Value to compare upper bounds against.

`eventName`

`String`

Name of the event to send if the check passes.

Configuration example

1{
2    "name": "[account].core.IfPropertyIsBetween",
3    "props": {
4        "jsonpath": "customer.attributes.byName.lifetimeValue",
5        "lower": "1000",
6        "upper": "5000",
7        "eventName": "SendLoyaltyDiscount10ForNextOrder"
8    }
9}

Language: json

Detailed Technical Description

This Rule will conditionally produce a SendEventAction, or a custom Audit Event if the Rule condition is not met.

The Rule condition is defined by the

`jsonPath`

and the

`value`

parameters. The

`jsonPath`

may identify a field on an entity, or an Event Attribute. If the

`jsonPath`

property value is between the

`lower`

and

`upper`

values provided, the Event will be produced for the same Context as the currently executing Event, but with a new name defined by the

`eventName`

parameter.

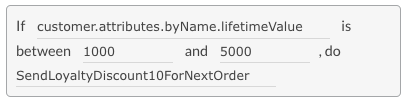

Workflow Builder (Modeller) Screenshot

Version History

2023-08-01

v23.8.1

Refers to the Product Release Version
