Key Points

The best practice for controlling the visibility of the user action button should be driven by the entity status within the ruleset.
However, if the customer does not want to enhance the list of statuses, this trick can be used to control the User Action button visibility by using the entity's attribute value.
This article will demonstrate the following in an Order entity:
- Display a user action button: once clicked, it will add an attribute (SENT_TO_WMS) to the order entity
- Update the manifest to check the attribute (SENT_TO_WMS), if the value is not "True", then display the button.
the sample source code will be provided in this article.

Prerequisites

UX Framework - Configuration Guide

Adding a Ruleset to your Workflow

Steps

Ensure your account has a rule that will add an attribute into the entity

The RULE SDK package contains a rule:

`DemoAddAttributeToOrder`

Alternatively, feel free to create your own rule to fir your purpose.

Create a new Ruleset in the workflow

In this example, a CC Order workflow will be used:

1    {
2      "name": "SendCanceltoWMS",
3      "type": "ORDER",
4      "subtype": "CC",
5      "eventType": "NORMAL",
6      "rules": [
7        {
8          "name": "<AccountId>.<PackageName>.DemoAddAttributeToOrder",
9          "props": {
10            "name": "SENT_TO_WMS",
11            "type": "String",
12            "value": "true"
13          }
14        }
15      ],
16      "triggers": [
17        {
18          "status": "BOOKED"
19        }
20      ],
21      "userActions": [
22        {
23          "context": [
24            {
25              "label": "SendCanceltoWMS",
26              "type": "PRIMARY",
27              "modules": ["adminconsole"],
28              "confirm": false
29            }
30          ],
31          "attributes": []
32        }
33      ]
34    },

Language: json

Name: SendCanceltoWMS ruleset

Description:

[Warning: empty required content area]

Update order management mystique manifest to control the button visibility

1  "actions": {
2    "primary": [
3
4        {
5            "type": "userAction",
6            "label": "SEND CANCEL TO WMS",
7            "name": "SendCanceltoWMS",
8            "condition": "{{ne orderById.attributes.byName.SENT_TO_WMS 'true'}}"
9        },
10

Language: json

Name: userAction manifest snippet

Description:

This code will be utilising the

`condition`

"condition": "{{ne orderById.attributes.byName.SENT_TO_WMS 'true'}}"

Result

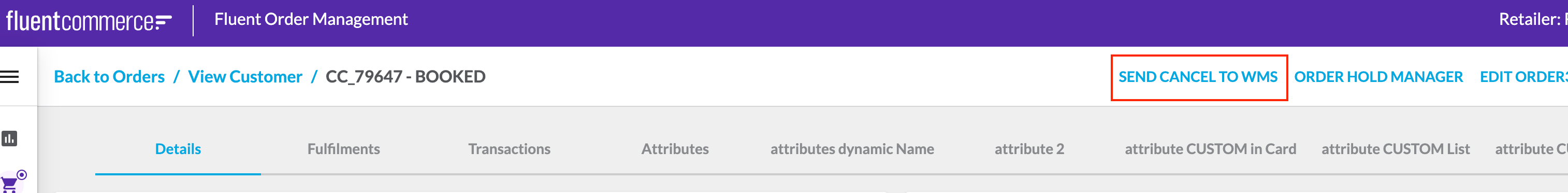

The User action button will be displayed if the order attribute's SENT_TO_WMS value is not True:

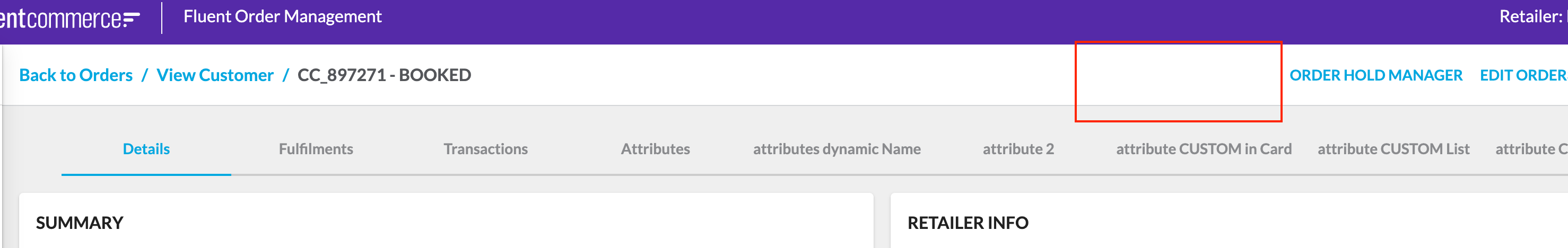

Otherwise, the button will not be displayed:
