Overview
This module receives consignment updates from Fluent and creates/updates shipments in Adobe Commerce.
Key features:
- Can only be enabled at a global level making it available for all existing websites.
- Adds a new handler to order update webhook (from the order module) to accept and process consignment updates
- Configurable Fluent status that should trigger shipment creation in Adobe. a. It’s possible to have multiple values as long as they are separated by comma.
Detailed Technical Description

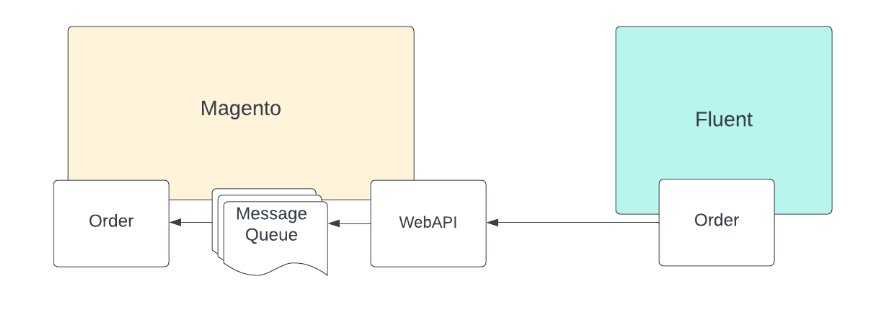

The diagram below represents how an update from Fluent is processed in Adobe.
Consignment webhook
Configuration
The settings below demonstrate how the handler is mapped to a Fluent Webhook message name. It is possible through Adobe’s dependency injection to add more or even override the default settings.
`1 <type name="FluentConnector\General\Api\WebHook\HandlerFactoryInterface"> 2 <arguments> 3 <argument name="handlers" xsi:type="array"> 4 <item name="ConsignmentStatusChanged" xsi:type="string">FluentConnector\Consignment\Handler\ConsignmentHandler</item> 5 </argument> 6 </arguments> 7 </type>`Validation
There are a few different validations executed before the actual webhook processing begins. These validations are part of a validation chain configured at di.xml as follows:
`1 <virtualType name="consignmentValidatorChain" type="FluentConnector\General\Model\WebHook\MessageValidatorChain"> 2 <arguments> 3 <argument name="validators" xsi:type="array"> 4 <item name="consignmentEnableValidator" xsi:type="object">consignmentEnableValidation</item> 5 <item name="consignmentEntityTypeValidator" xsi:type="object">consignmentEntityTypeValidator</item> 6 <item name="orderStatusValidator" xsi:type="object">FluentConnector\Consignment\Model\WebHook\Validator\OrderValidator</item> 7 </argument> 8 </arguments> 9 </virtualType>`Some of the validation includes:
- Fluent account details are aligned with the configuration in Adobe
- accountId
- retailerId
- Webhook entityType is CONSIGNMENT
- Order reference exists in Adobe
Processing
The webhook execution simply adds the message to a queue to be processed asynchronously.
Topic name:
`fluentcommerce.consignment.updater`Message content:
- retailerId (retailer id)
- entityId (Fluent consignment Id)
- rootEntityRef (Adobe order increment ID)
Consignment Processing

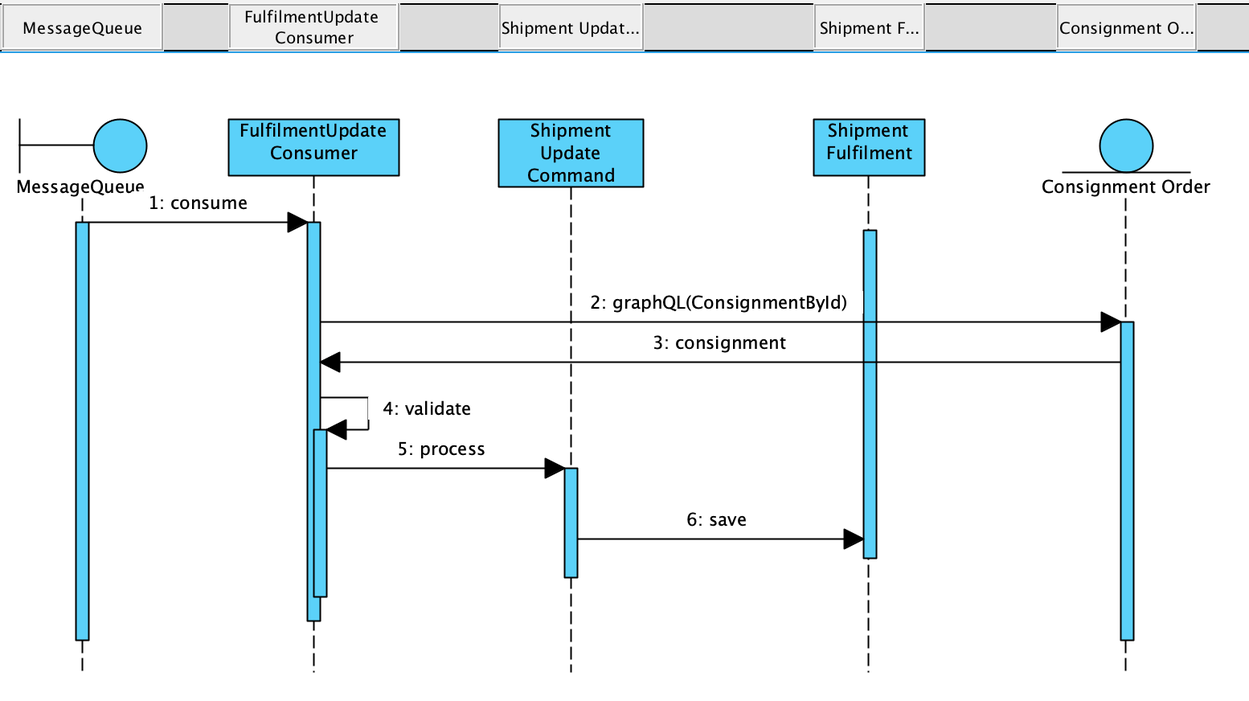

The extensions use Adobe's standard approach to process items waiting in a queue. The diagram below illustrates the sequence of events for each queued item.
- Consume messages from the queue
- Fetch consignment entity by ID from Fluent including articles
- Run initial validation to make sure this consignment and fulfillment are related to our orders and order items
- order exists and matches the queued item
- order item exists in the platform
- order items are available for shipment
- Create order shipment for fulfillment items (partial or fully shipped)
- Use Command patterns for data processing if the consignment status matches the configuration
- Adds a shipping tracking code
- use Command patterns for data processing
- Tracking code can only be added to existing shipments
The actual processing is done through commands which can be overridden or extended by Adobe’s dependency injection only.
`1 <virtualType name="consignmentProcessCommandPool" type="FluentConnector\Consignment\Model\Command\CommandPool"> 2 <arguments> 3 <argument name="commands" xsi:type="array"> 4 <item name="shipment" xsi:type="string">FluentConnector\Consignment\Model\Command\Order\Shipment</item> 5 </argument> 6 </arguments> 7 </virtualType>`Consignment vs Shipping Field Mapping
Event | Parameters | Description |
rootEntityRef | order.increment_id | order increment id |
data.consignmentById.consignmentArticles.consignmentArticleEdges[].consignmentArticleNode.fulfilments.fulfilmentEdges.fulfilmentNode.items.fulfilmentItemEdges[0].fulfilmentItemNode.orderItem.ref | order_item_id | order item id |
data.consignmentById.consignmentArticles.consignmentArticleEdges[].consignmentArticleNode.fulfilments.fulfilmentEdges.fulfilmentNode.items.fulfilmentItemEdges[0].fulfilmentItemNode.filledQuantity | shipped_qty | Shipped Qty |
data.consignmentById.status | status | The item's consignment status. Shipping and tracking status."status": "ACTIVE_LODGED" |
data.consignmentById.consignmentArticleEdges[].consignmentArticleNode.fulfilments.fulfilmentEdges.fulfilmentNode | fulfilment ID | Keep as an extension attribute |
Module Architecture
- FluentConnector/Order/Handler/ConsignmentStatusUpdateHandler.php
- Handler to publish Consignment messages to the message queue
- FluentConnector/Order/Model/MessageQueue/Consumer/Data/ConsignmentUpdateMessage.php
- Data interface for the Message queue message
- FluentConnector/Order/Model/MessageQueue/Consumer/ConsignmentUpdateConsumer.php
- Consignment update Consumer
- FluentConnector/Order/Model/Command/Order/Shipment.php
- Order item status update command
- FluentConnector/Order/Model/Command/Order/ShipmentTracking.php
Consignment Events
Event | Description | Parameters |
fluent_consignment_process_before | Event before the consignment is processed | order of type OrderInterface consignment of type array |
fluent_consignment_process_after | Event after the consignment is processed | order of type OrderInterface consignment of type array |
