Adobe Commerce Connector Setup and Configuration

Instructions

This step is to create an extension configuration in Adobe Commerce

Set the Correct Context

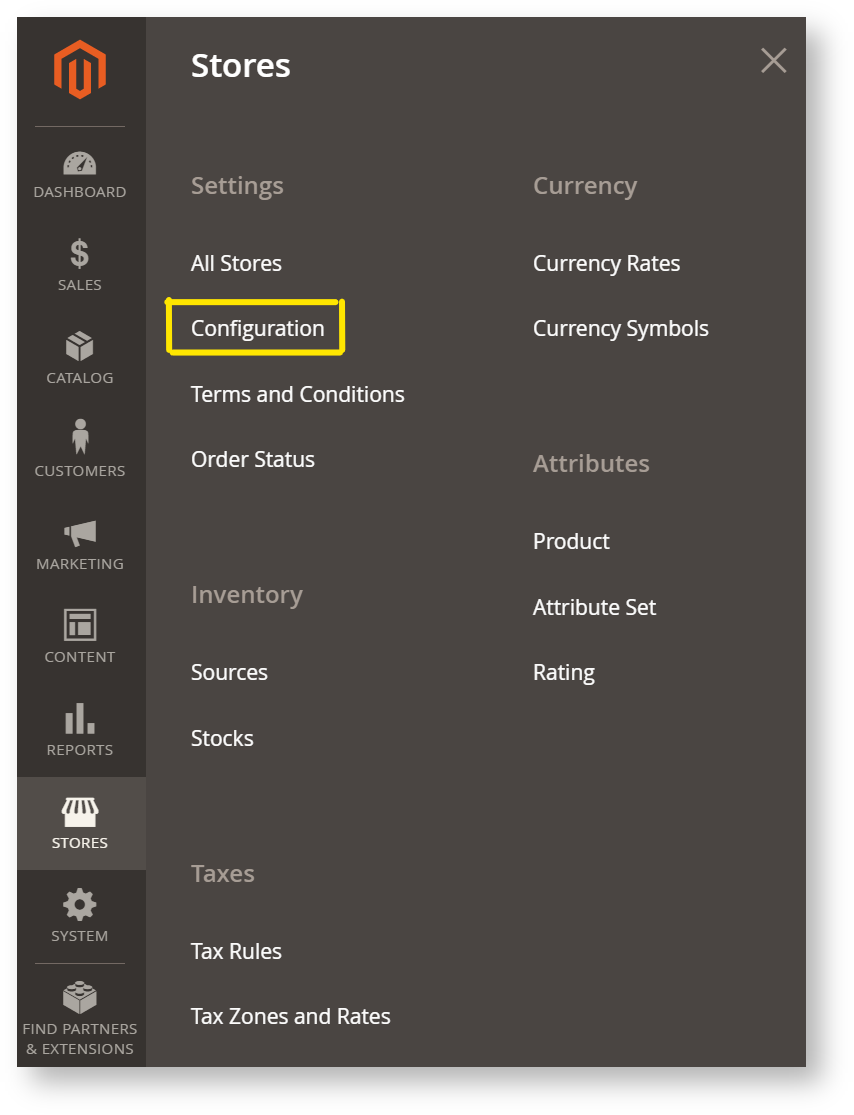

Log in to the Adobe Commerce Admin, navigate to

`Store > Settings > Configuration > Fluent Commerce > Connector`

Fluent Credential Settings

Credential configurations are split between 2 scopes: Global and Website. This is necessary to support multi-website where each can connect to its counterpart at Fluent OMS or have a special dedicated configuration.

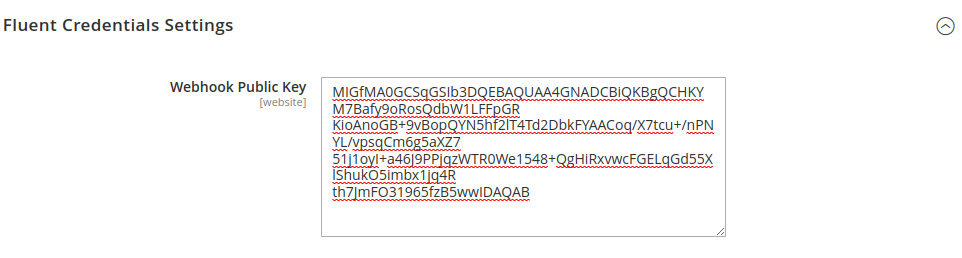

Global scope

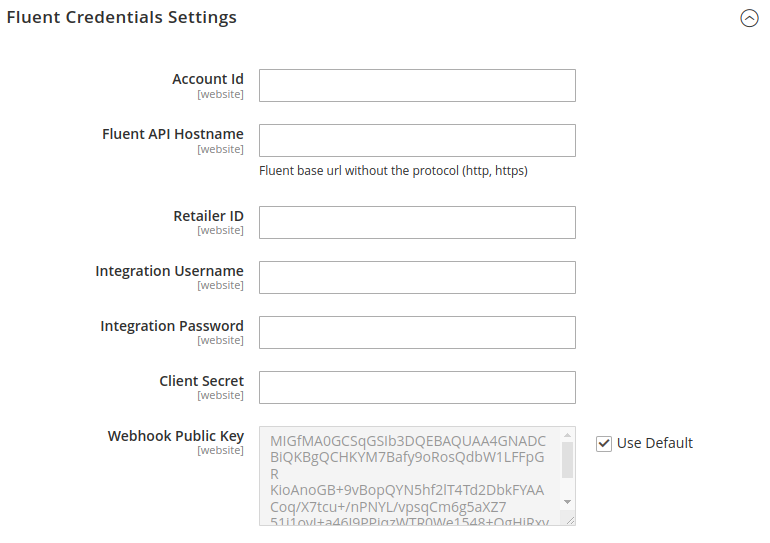

Website scope

General Settings

Common settings used by the extension.

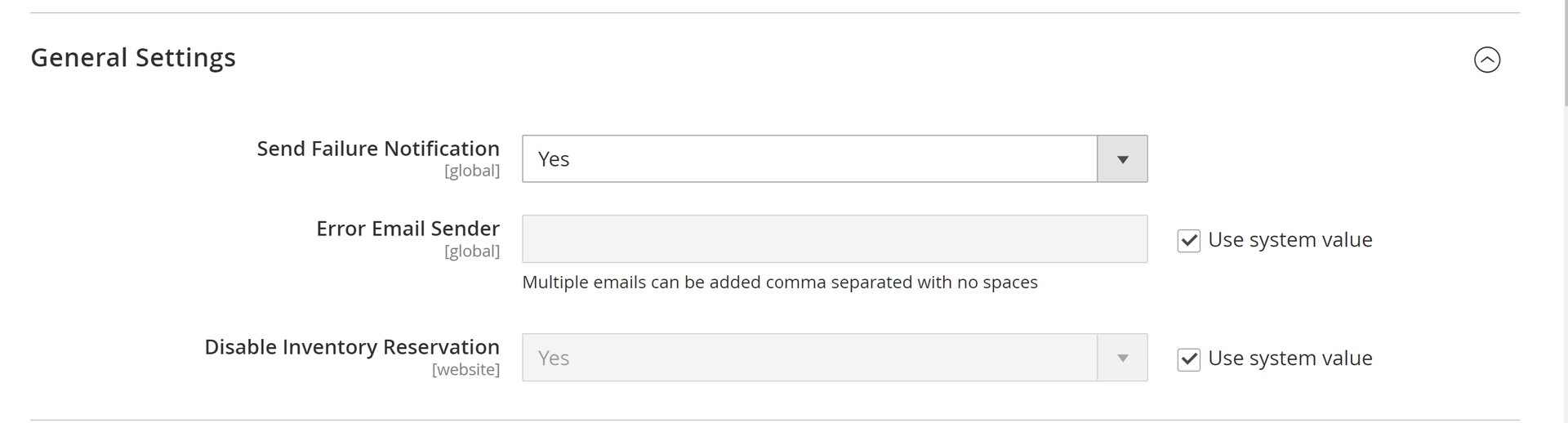

Global Scope

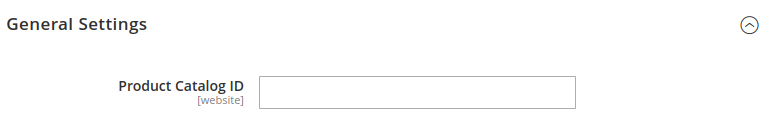

Website Scope

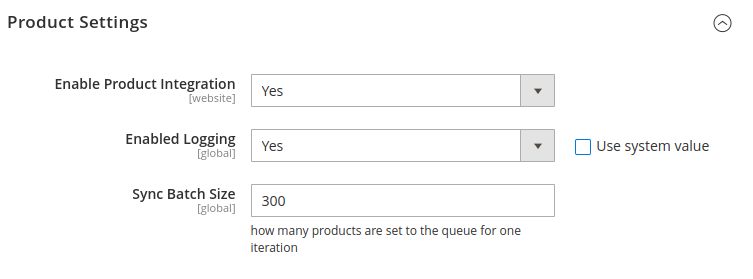

Product Settings

Product integration will push products from Adobe Commerce to Fluent OMS. Although this is not required for the extension to function, products must exist in Fluent OMS for orders to be fulfilled. Each website can have its own Fluent OMS product catalogue configuration and the integration will only push products that are assigned to the website in Adobe.

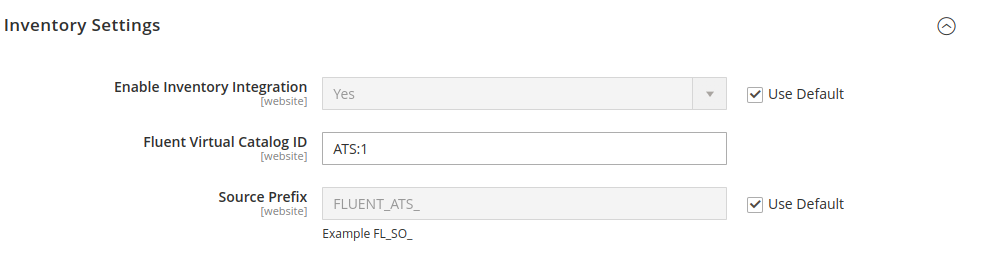

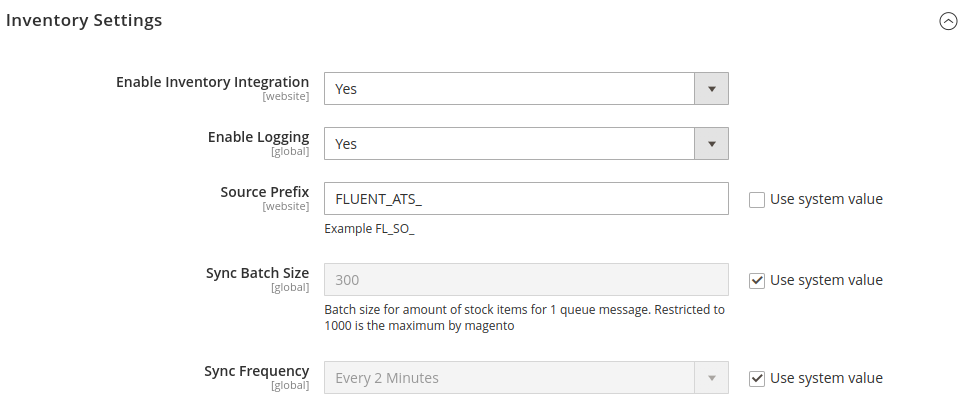

Inventory Settings

Inventory integration will bring aggregate stock positions from Fluent. The configuration expects a virtual catalogue id that can be configured per website as well as fine control if this integration should run for each website or not.

Global scope

Website scope

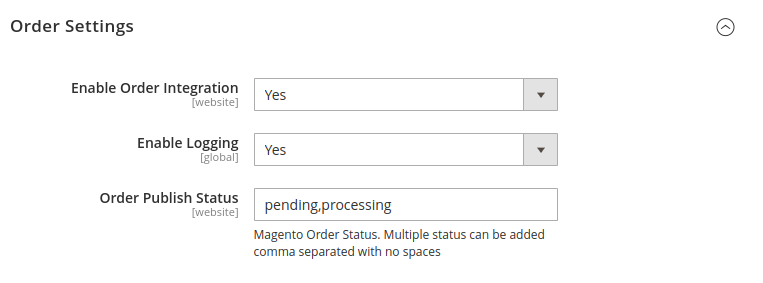

Order Settings

These settings will enable Adobe to publish new orders to Fluent OMS.

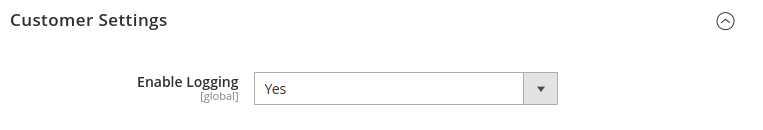

Customer Settings

Whenever an order is placed, the customer may be required to be pushed to Fluent before the order. This is a mandatory extension and it’s not possible to disable it.

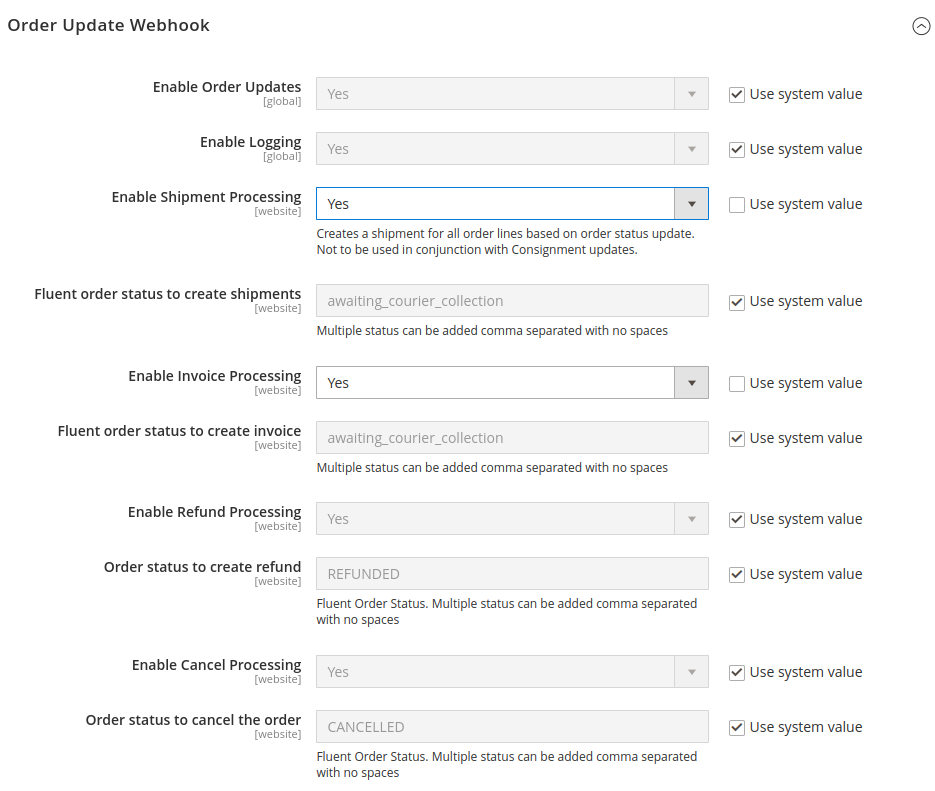

Order Update Webhook

Fluent will submit order-level updates to Adobe based on Fluent’s workflow configuration. The extension will listen to messages named

`OrderStatusChanged`

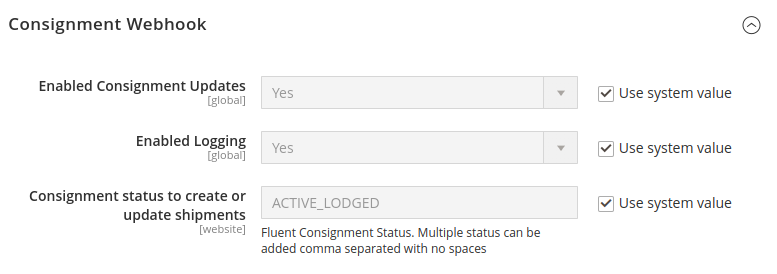

Consignment Webhook

Fluent will submit consignment and fulfilment updates to Adobe based on Fluent’s workflow configuration. The extension will listen to messages named

`ConsignmentStatusChanged`

`FulfilmentStatusChanged`

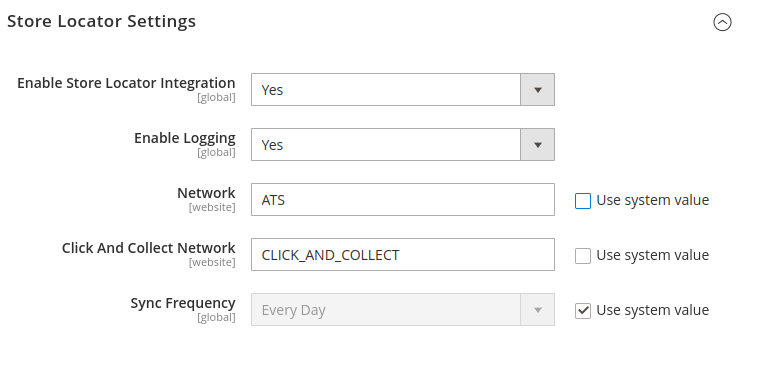

Store Locator Settings

The store locator is a custom entity storing the locations from Fluent. These stores are going to hold the details of each store and use the product availability feature to display information about the store.

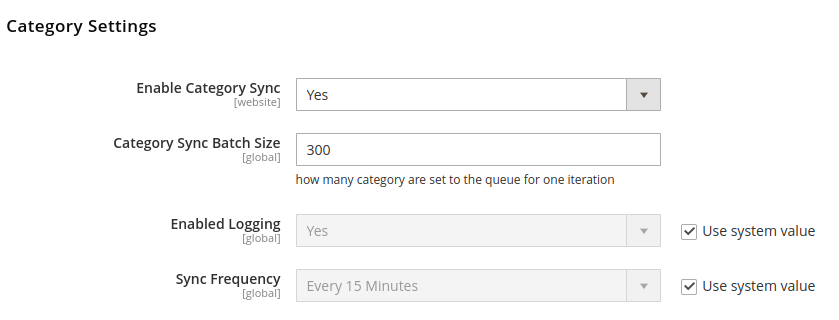

Category Settings

Pushes categories from Adobe Commerce to Fluent OMS. By default, the product integration will have category references which means this integration must also be enabled. The product sync will fail when a product has a reference to a category that does not exist when Fluent utilises the default product upsert workflow. Category sync can be disabled but it requires some customization of the product sync to map products to an existing standard category - this topic is covered in the extended section of the connector.

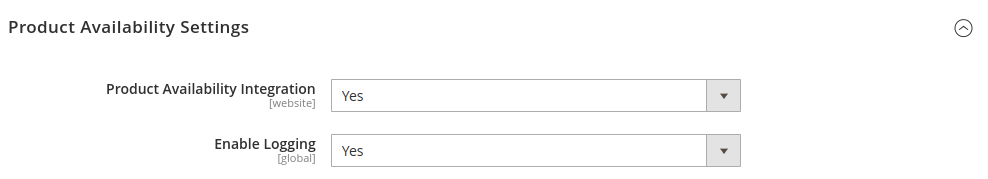

Product Availability Settings

Enables product availability services within Adobe Commerce. This is an optional extension and if enabled it requires the store locator extension to also be enabled.

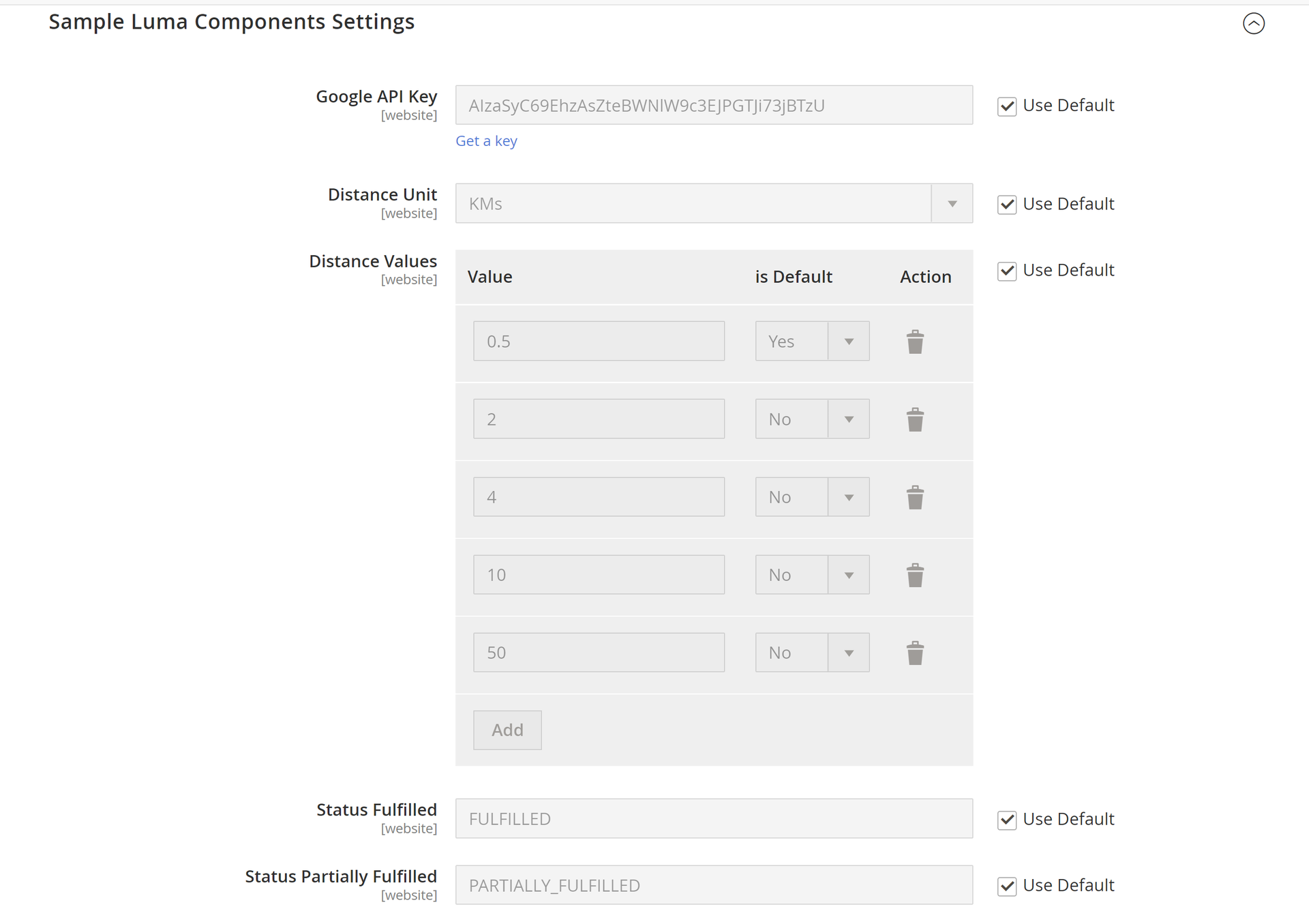

Luma Sample Components

The extension contains sample widgets for product availability checks at the product page and checkout. It also allows placing click-and-collect orders.

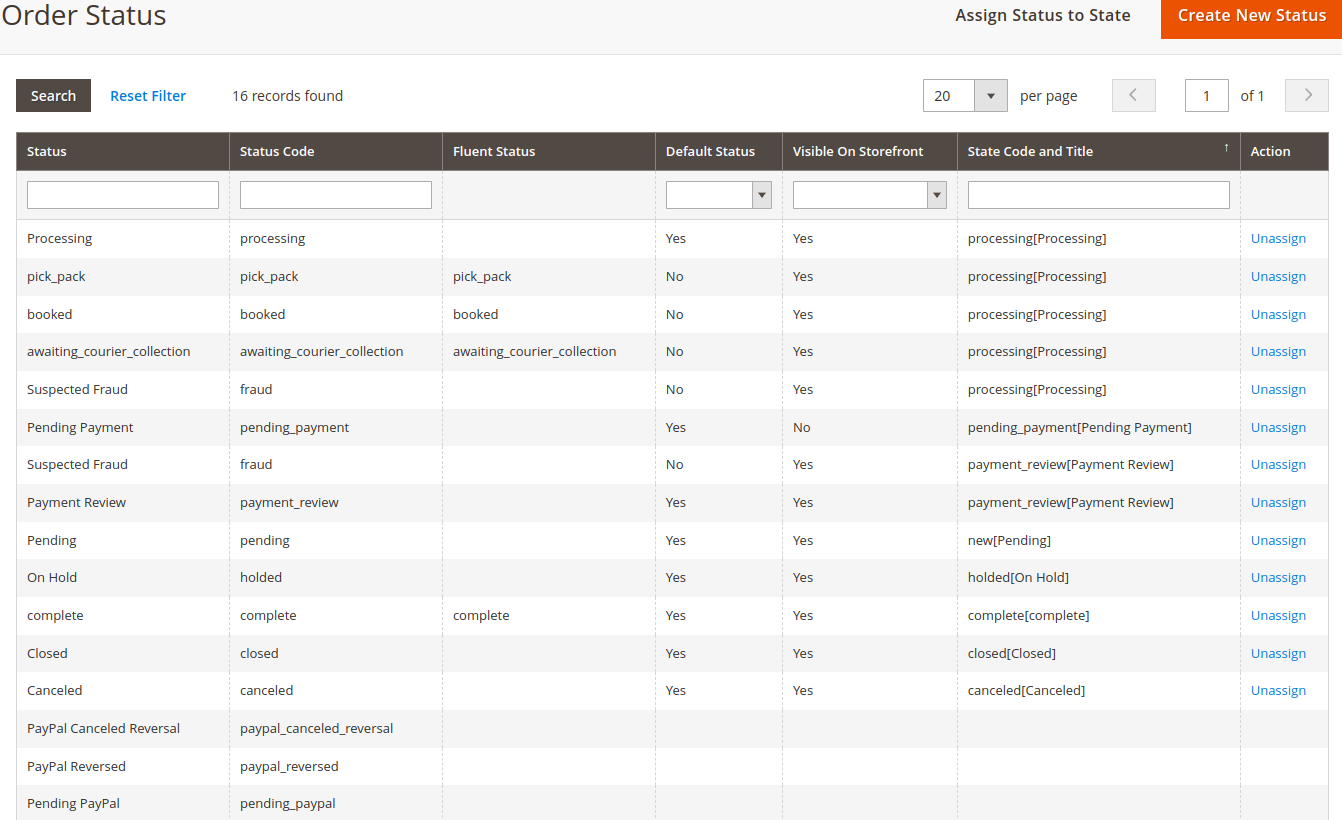

Order Status Configuration

This configuration allows the translation of Fluent order status into the equivalent order status in Adobe. It is possible to either update the existing status or create a new one.

Instructions

This step is to configure the source and stock in Adobe Commerce to allow receiving inventory updates from Fluent.

Setup Sources

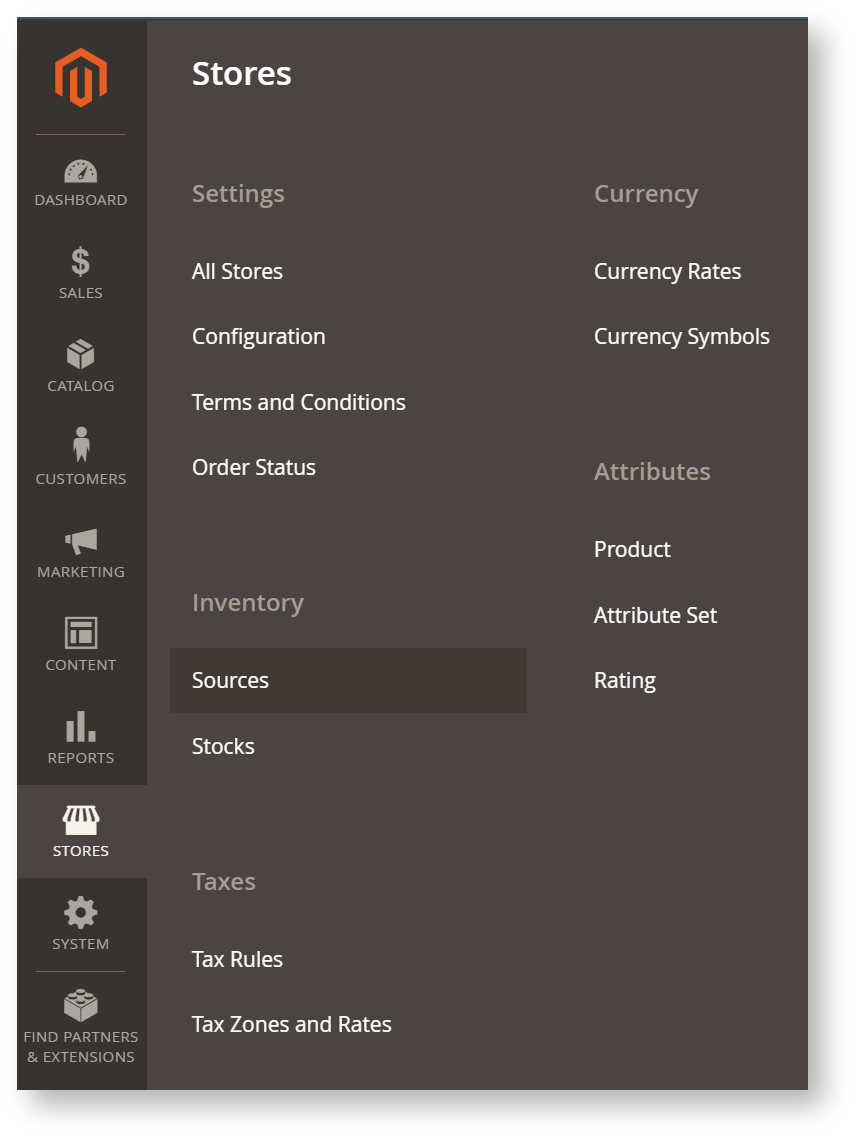

Navigate to

`Stores > Inventory > Sources`

This will display a list of sources (locations)

When setting it up for the first time, the default source will be the only source available. This step is to create one source per website and each of these sources will hold the consolidated stock count for each product for each website. The name of this source is important as it will be referenced by the inventory integration.

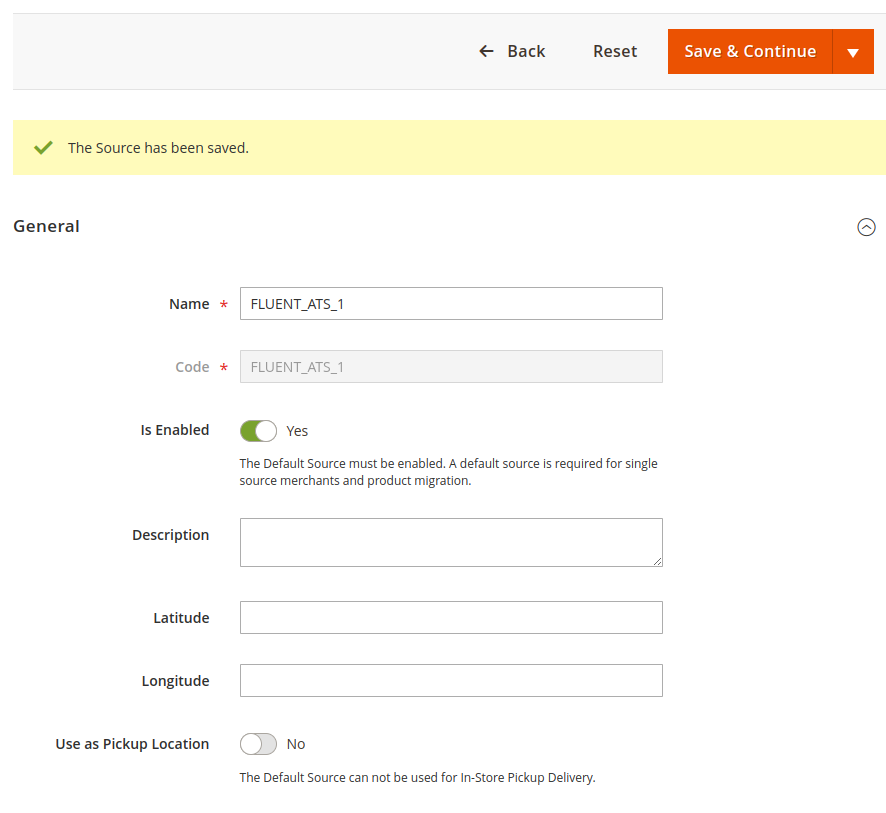

Required fields: Name and code follows a certain naming convention that has been specified on the previous step at the inventory configuration. In this step you should take the prefix specified at the inventory step and append the retailer ID at the end like shown on the picture.

You may be asked to fill other fields of the source in order to save it. This extra information is not relevant for integration but required by Adobe.

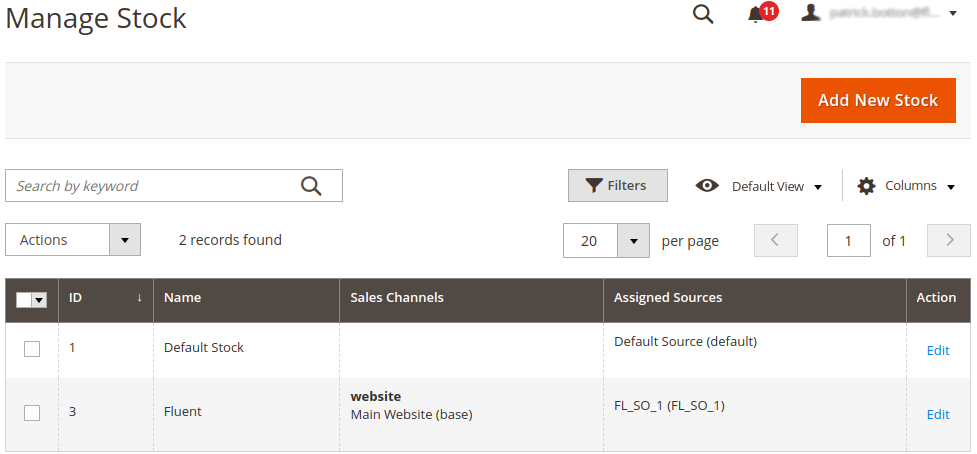

Setup Stock

Stock will link the aggregate inventory position to a website. This setup may vary per project and the screenshot below shows a single website linking it to the only source created.

Make sure all the below configurations are set up in Fluent OMS per retailer if required

Instructions

Standard Fluent Account setup

• Retailer
• Permissions
• Settings
• Reject Location (optional)
• Carrier (optional)
• Other configs such as; Workflow, Product Catalogue, Control Groups & Controls, etc.

Virtual Catalogues

• BASE - configured and used in fulfillment options workflows
• ATS - aggregate stock synchronized with Adobe Commerce

Location Networks

• BASE (CLICK_AND_COLLECT & HOME_DELIVERY) - configured and used in fulfillment options workflows
• ATS - all locations which contribute to the ATS Virtual Catalogue
• CLICK_AND_COLLECT - a network for click-and-collect locations/pickup locations in Adobe Commerce

Instructions

Typically the workflows and plugins are pre-installed on new environments but contact Fluent Expert Services in case they are missing.

Product and Category Workflow

Both product and category should use the workflow with the ability to UPSERT. This workflow will handle creating or updating products or categories.

The extension expects the following rulesets

`UPSERT_CATEGORY`

`UPSERT_PRODUCT`

Fulfilment Options workflow

Fulfilment option workflow is required for both Click and Collect and Home Delivery. No special configuration is necessary besides having the correct workflow settings.

Orders workflow

In order to push order, fulfilment and consignment updates to Adobe Commerce the following rules are required to be present at the workflows.

1{
2  "name": "SendOrderStatusWebhook",
3  "description": "Sends a webhook for the fulfilment",
4  "type": "ORDER",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "MAGENTO.commonv2.SendWebhook",
9      "props": {
10        "webhookName": "OrderStatusChanged",
11        "webhookEndpoint": "https://<adobe-hostname>/fluent/webHook/order"
12      }
13    }
14  ],
15  "triggers": [
16    {
17      "status": "BOOKED"
18    },
19    {
20      "status": "PICK_PACK"
21    },
22    {
23      "status": "AWAITING_COURIER_COLLECTION"
24    },
25    {
26      "status": "COMPLETE"
27    },
28    {
29      "status": "ESCALATED"
30    },
31    {
32      "status": "CANCELLED"
33    },
34    {
35      "status": "REFUNDED"
36    }
37  ],
38  "userActions": []
39}

1{
2  "name": "SendFulfilmentStatusWebhook",
3  "description": "Sends a webhook for the fulfilment",
4  "type": "FULFILMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "MAGENTO.commonv2.SendWebhook",
9      "props": {
10        "webhookName": "FulfilmentStatusChanged",
11        "webhookEndpoint": "https://<adobe-hostname>/fluent/webHook/order"
12      }
13    }
14  ],
15  "triggers": [
16    {
17      "status": "PROCESSING"
18    },
19    {
20      "status": "AWAITING_WAVE"
21    },
22    {
23      "status": "ASSIGNED"
24    },
25    {
26      "status": "REJECTED"
27    },
28    {
29      "status": "FULFILLED"
30    },
31    {
32      "status": "PARTIALLY_FULFILLED"
33    },
34    {
35      "status": "AWAITING_COURIER_COLLECTION"
36    },
37    {
38      "status": "EXPIRED"
39    },
40    {
41      "status": "COMPLETE"
42    },
43    {
44      "status": "ESCALATED"
45    }
46  ],
47  "userActions": []
48}

1{
2  "name": "SendConsignmentStatusWebhook",
3  "description": "Sends a webhook for the consignment",
4  "type": "CONSIGNMENT",
5  "eventType": "NORMAL",
6  "rules": [
7    {
8      "name": "MAGENTO.commonv2.SendWebhook",
9      "props": {
10        "webhookName": "ConsignmentStatusChanged",
11        "webhookEndpoint": "https://<adobe-hostname>/fluent/webHook/order"
12      }
13    }
14  ],
15  "triggers": [
16    {
17      "status": "PROCESSING"
18    },
19    {
20      "status": "ACTIVE_LODGED"
21    }
22  ],
23  "userActions": []
24}
