Adding a Trigger to a Ruleset

A Trigger state defines when a Ruleset is applicable to the given entity. For example, a change to the delivery address of a Home Delivery Order may only be applicable while the Order is in a Booked state. Therefore, the Ruleset can only be triggered while the entity is in the Booked state.

Adding a Trigger via the UI

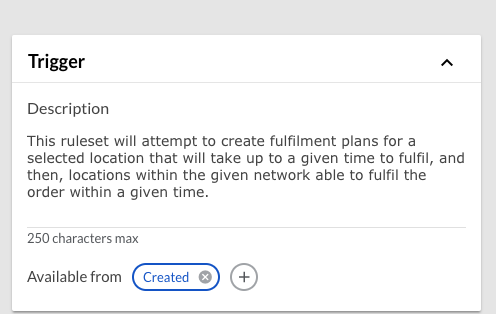

The Triggers section provides a Description text box and a Statuses selector.

The Description field is optional, however, we recommend providing a meaningful description for other workflow viewers to gain context.

The Statuses selector allows one or more Statuses to be selected. You can add or remove Statuses from the Trigger. At least one Status is required on a Ruleset when modifying a Ruleset via the UI.

Adding a Trigger via JSON

Trigger schema

Trigger sample

1{
2  "triggers": [
3    {
4      "status": "{{statusName}}"
5    }
6  ]
7}
